AP 21507B (80244) - Snapper 21" Walk-Behind Mower, 5hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5hp

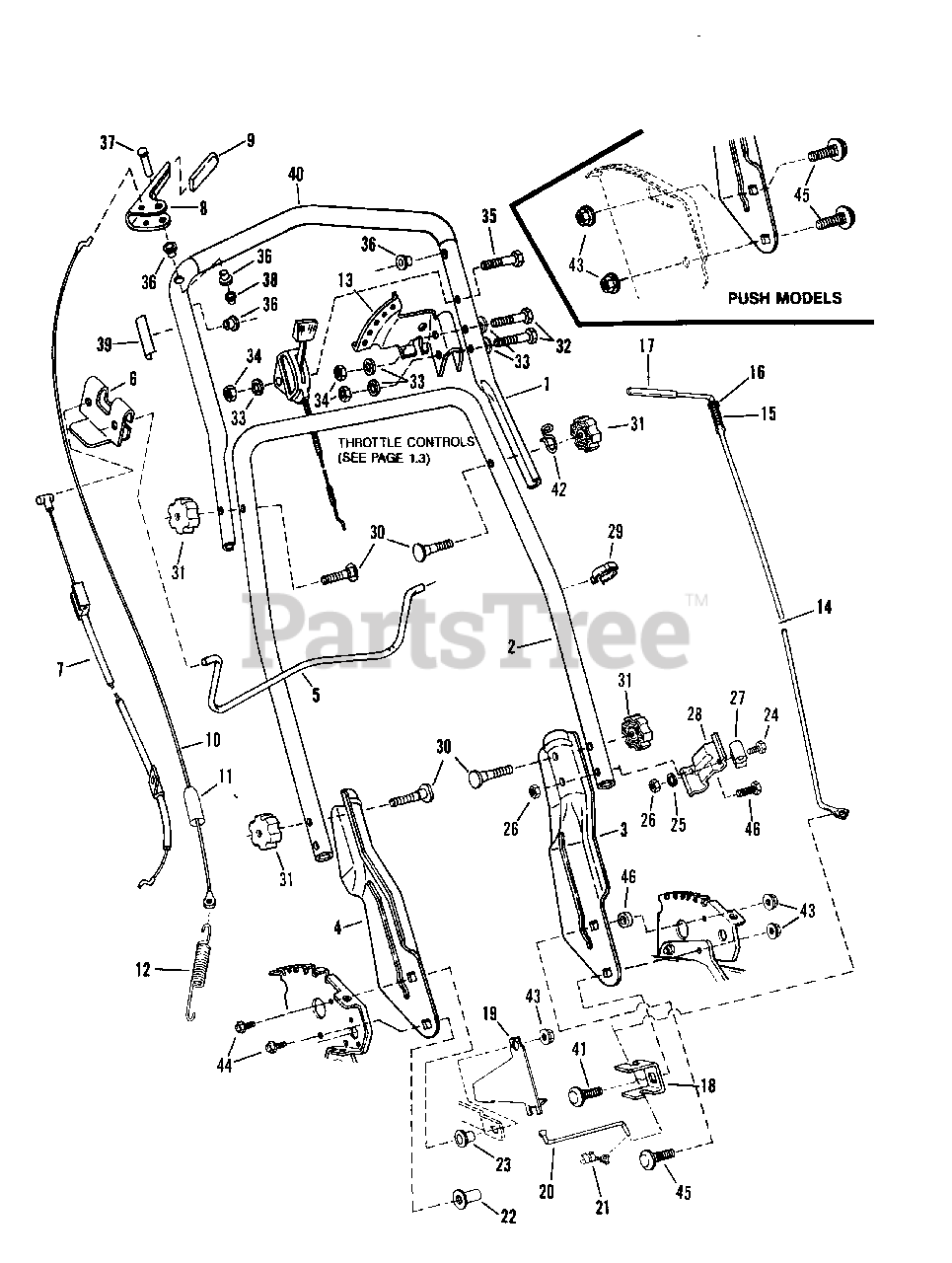

Handles & Controls Parts Diagram

  • Title

1

Snapper 7036354

HANDLE, Upper
(Superseded to 7036354YP)

Note: Used on Push

$42.99

$

Usually ships in 2-12 days

0

Snapper 7036357

HANDLE, Upper
(Superseded to 7036357YP)

Note: Was 36355, Used on Self-Propelled

$94.99

$

Usually ships in 2-12 days

0

2

Snapper 7036350

HANDLE, Middle

Note: Used on All

$

$

Not available

3

Snapper 7046502

HANDLE, Lower Left Hand
(Superseded to 7046502YP)

$56.99

$

Usually ships in 2-12 days

0

4

Snapper 7035342

HANDLE, Lower Right Hand
(Superseded to 7035342YP)

Note: Was 38467, Used on All

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

Note: Used on All

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

Note: Was 32829, Used on All

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7016707

CABLE, Blade Control
(Superseded to 7016707YP)

Note: Used on Briggs

$16.99

$

In Stock, only 1 left!

0

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

Note: Used on Self-Propelled

$16.99

$

In Stock, Qty 17

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

Note: Used on Self-Propelled

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7023134

CABLE, Clutch Pull(Z-Bend)
(Superseded to 7023134YP)

Note: Used on Self-Propelled

$18.99

$

In Stock, only 2 left!

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

Note: Used on Self-Propelled

$1.99

$

Usually ships in 2-12 days

0

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

Note: Used on Self-Propelled

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

Note: Used on Self-Propelled

$82.99

$

Usually ships in 2-12 days

0

14

Snapper 7023795

LEVER, Speed Control

Note: Used on Self-Propelled

$

$

Not available

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

Note: Used on Self-Propelled

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: Used on All

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

Note: Used on Self-Propelled

$4.49

$

In Stock, Qty 6

0

18

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Used on Self-Propelled

$26.99

$

In Stock, only 1 left!

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

Note: Used on Self-Propelled

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

Note: Used on Self-Propelled

$9.49

$

In Stock, Qty 6

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

Note: Used on Self-Propelled

$7.49

$

In Stock, Qty 9

0

22

Snapper 7090895

TEE - NUT, 5/16-18
(Superseded to 7090895YP)

Note: Used on Self-Propelled

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

Note: Used on Self-Propelled

$4.99

$

In Stock, Qty 12

0

24

Snapper 7090552

SCREW, 1/4-28 x 1-38" Hex Cap
(Superseded to 703828)

Note: Used on All

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 7090053

WASHER,1/4 Internal lock
(Superseded to 703462)

Note: Used on All

$4.49

$

In Stock, Qty 13

0

26

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Used on All

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7022356

GUIDE, Rope

Note: Used on All

$

$

Not available

28

Snapper 7033426

BRACKET, Rope Guide

Note: Used on All

$

$

Currently unavailable

29

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 10

0

30

Snapper 7091013

SCREW, 1/4-20 x 1-7/8" Curved Head
(Superseded to 7091013SM)

Note: Used on All

$5.49

$

In Stock, only 2 left!

0

31

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

Note: Used on All

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Cap
(Superseded to 7091025YP)

Note: Used on Self-Propelled

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023 (Used on All)

$4.49

$

In Stock, Qty 13

0

34

Snapper 7090095

NUT, 1/4-20 Hex
(Superseded to 7090095FS)

Note: Was 91024 (Used on All)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7091022

SCREW, 1/4-28 x 1-3/4" Hex Cap

Note: Used on All

$

$

Not available

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

Note: Used on All

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle .250 x 1.50
(Superseded to 704031)

Note: Used on Self-Propelled

$3.99

$

In Stock, Qty 15

0

38

Snapper 7091020

NUT, Push (for handle pin)
(Superseded to 7091020YP)

Note: Used on Self-Propelled

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7023745

DECAL, Blade Control

Note: Used on All

$

$

Currently unavailable

40

Snapper 7023901

GRIP, Foam
(Superseded to 7023901YP)

Note: Used on Push

$8.49

$

In Stock, only 2 left!

0

Snapper 7022460

GRIP, Foam

Note: Was 23841, Used on Self-Propelled

$

$

Not available

41

Snapper 7091077

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 7091077YP)

Note: Used on Self-Propelled

$

$

Not available

42

Snapper 7022779

RETAINER, Rope
(Superseded to 7022779YP)

Note: Was 33354, Used on All

$7.49

$

Usually ships in 2-12 days

0

43

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (Used on All)

$5.49

$

In Stock, Qty 20+

0

44

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

Note: Used on All

$

$

Not available

45

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 90383 (Used on All)

$3.99

$

In Stock, Qty 16

0

46

Snapper 7090111

SCREW, 1/4-28 x 1-3/4" Hex Cap

Note: Used on All

$2.99

$

In Stock, only 3 left!

0
