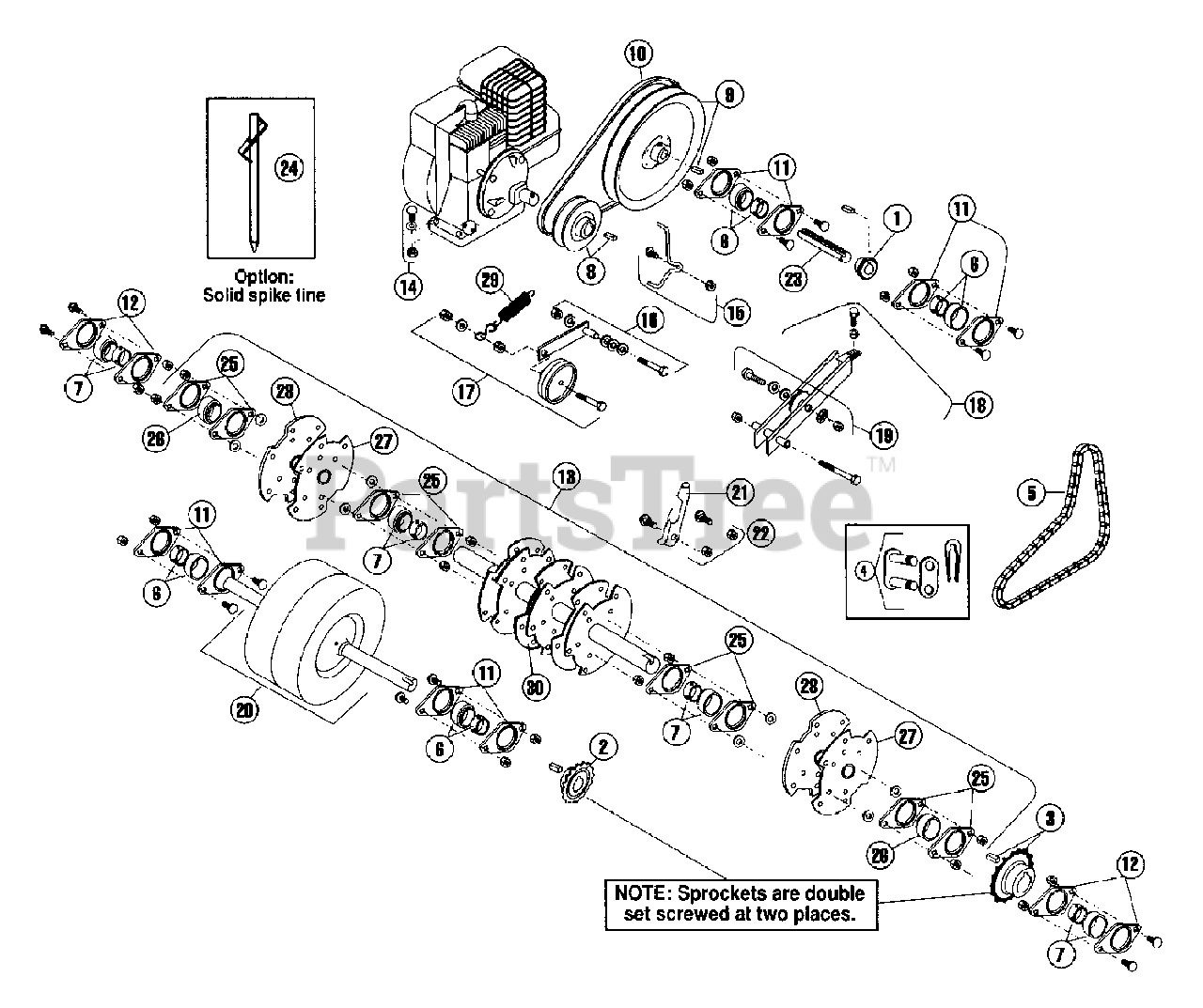

AR 19 - Husqvarna 19" Aerator (2000-12) Power Train / Tine Rotor Parts Diagram

19" Aerator

Power Train / Tine Rotor Parts Diagram

  • Title

1

Husqvarna 540007630

Sprocket, jackshaft, with key and spacer
(Superseded to 539007630)

$37.99

$

In Stock, only 2 left!

0

2

Husqvarna 540000302

Sprocket, wheel, with set screws and key
(Superseded to 539000302)

$87.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540000303

Sprocket, rotor, with set screws and key
(Superseded to 539000303)

$120.99

$

In Stock, only 1 left!

0

4

Husqvarna 540000307

Master link
(Superseded to 539000307)

Note: For 540000308

$13.99

$

In Stock, Qty 9

0

5

Husqvarna 540000308

Chain, #40 perma lube roller
(Superseded to 539112661)

$31.99

$

In Stock, Qty 7

0

6

Husqvarna 540000315

Bearing, 3/4" with lock collar
(Superseded to 539000315)

$34.99

$

In Stock, Qty 10

0

7

Husqvarna 540000317

Bearing, 1" with lock collar
(Superseded to 539000317)

$

$

Not available

8

Husqvarna 540000328

V-pulley, A-4" with set screws and key
(Superseded to 539000328)

$109.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540000332

V-pulley, A-10" with set screws and key
(Superseded to 539000332)

$

$

Not available

10

Husqvarna 540000336

V-belt, A-44" special
(Superseded to 539200679)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540005185

Stamping kit w/fasteners
(Superseded to 539005185)

Note: (For 3/4" bearing)

$17.99

$

In Stock, only 3 left!

0

12

Husqvarna 540005786

Stamping kit w/fasteners
(Superseded to 539005786)

Note: (For 1" bearing)

$

$

Not available

13

Husqvarna 540007631

Rotor shaft, tine without bolts
(Superseded to 539007631)

$789.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540007204

Fastener kit, engine

$

$

Not available

15

Husqvarna 540007205

Belt keeper kit
(Superseded to 539007205)

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540007206

Idler arm kit, pulley
(Superseded to 539007206)

$133.99

$

Usually ships in 3-10 days

0

17

Husqvarna 540007632

Idler pulley kit
(Superseded to 539007632)

$103.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540007633

Idler arm kit, chain
(Superseded to 539007633)

$72.99

$

In Stock, only 2 left!

0

19

Husqvarna 540007634

Idler sprocket kit, chain
(Superseded to 539007634)

$80.99

$

In Stock, only 1 left!

0

20

Husqvarna 540007635

Front wheel and shaft kit
(Superseded to 539007635)

$

$

Not available

21

Husqvarna 540007636

Tine set, closed spoon, 30 each
(Superseded to 539007636)

$

$

Not available

21

Husqvarna 540007112

Tine set, closed spoon, 6 each
(Superseded to 539007112)

$145.99

$

Usually ships in 3-10 days

0

22

Husqvarna 540007637

Tine/spike fastener kit, 72 ea. bolts and nuts
(Superseded to 539007637)

$145.99

$

In Stock, only 1 left!

0

22

Husqvarna 540007103

Tine/spike fastener kit, 12 ea. bolts and nuts
(Superseded to 539007103)

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540007232

Jackshaft, with key
(Superseded to 539007232)

$

$

Not available

24

Husqvarna 540007638

Spike set, 30 each

$

$

Not available

25

Husqvarna 540007105

Stamping kit, w/nuts and washers
(Superseded to 539007105)

Note: (For 1" bearing)

$

$

Not available

26

Husqvarna 540007108

Bearing 1"
(Superseded to 539000317)

Note: (Does not include lock collar)

$

$

Not available

27

Husqvarna 540007639

Left rotor plate
(Superseded to 539007639)

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 540007640

Right rotor plate
(Superseded to 539007640)

$66.99

$

In Stock, only 1 left!

0

29

Husqvarna 540005129

Spring clutch
(Superseded to 539005129)

$8.99

$

In Stock, only 4 left!

0

30

Husqvarna 540007641

Rotor shaft, center

$339.99

$

In Stock, only 1 left!

0
