AR 905011 P (090930317) - Ariens 5,000 Watt Generator, Revision 01 (2016-07) Figure A Parts Diagram

5,000 Watt Generator, Revision 01

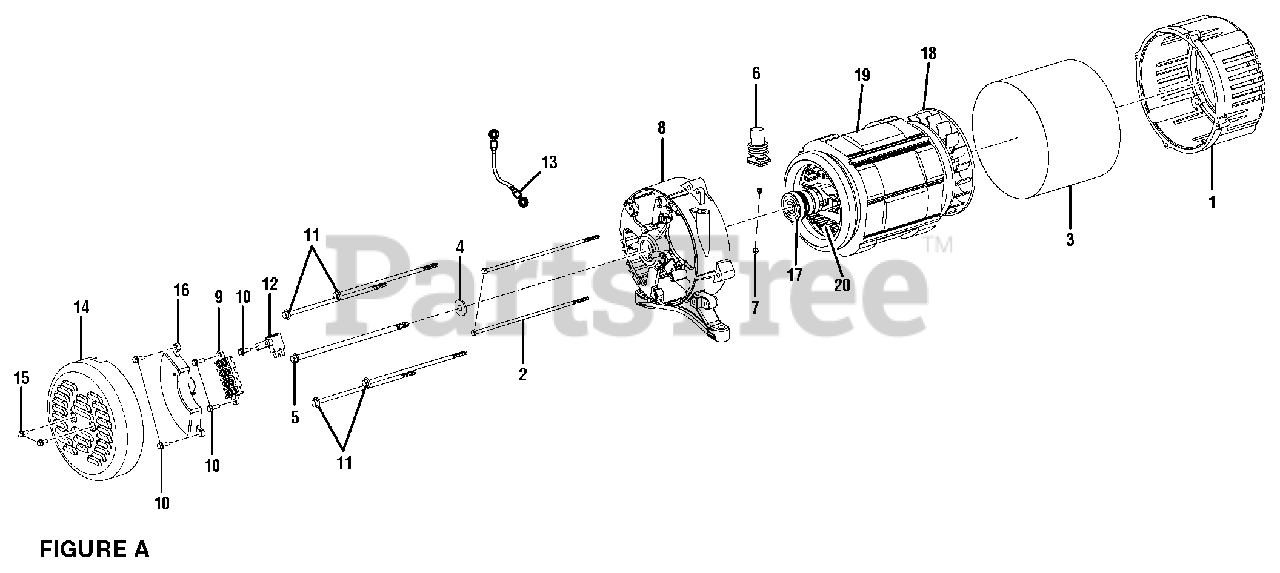

Figure A Parts Diagram

  • Title

1

Homelite 640331005

Adaptor Housing

$

$

Not available

2

Homelite 660938030

Bolt (M5 x 230, Hex Hd.)

$

$

Not available

3

Homelite 638624019

Generator Head Cover

$

$

Currently unavailable

4

Homelite 638623002

Lock Washer (5/16 in.)

$

$

Not available

5

Homelite 661603028

Rotor Bolt (170 mm)

$

$

Currently unavailable

6

Homelite 570766002

Rubber Boot

$

$

Not available

7

Homelite 690840002

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 678865003

Bearing Housing

$

$

Not available

9

Homelite 290602003

Terminal Block

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 660938012

Bolt (M5 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660938030

Stator Bolt (170 mm)

$

$

Not available

12

Homelite 290441005

Brush Assembly

$

$

Not available

13

Homelite 290455001

Bonding Wire

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

15

Homelite 660938011

Bolt (M5 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

17

Homelite 681963001

Bearing

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan

$

$

Not available

19

Homelite 310772044

Stator

$207.99

$

Usually ships in 3-7 days

0

20

Homelite 310771043

Rotor

$207.99

$

Usually ships in 3-7 days

0
