AR 907511 P (090930316) - Ariens 7,500 Watt Generator Figure C Parts Diagram

7,500 Watt Generator

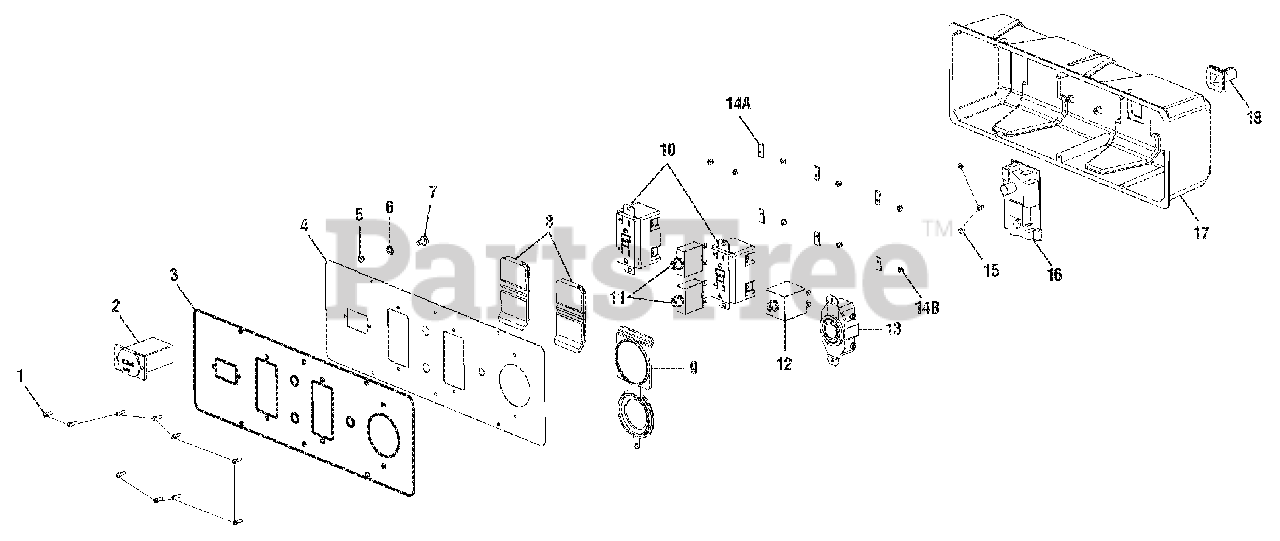

Figure C Parts Diagram

  • Title

1

Homelite 660598001

Screw (6-20 x 3/8 in.)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 310713001

Hour Meter (120 Volt)

$

$

Not available

3

Homelite 940780019

Label (Power Outlet)

$

$

Currently unavailable

4

Homelite 638496023

Front Panel

$13.99

$

Usually ships in 3-7 days

0

5

Homelite 678610002

Lock Nut (M4)

$

$

Not available

6

Homelite 638704002

Star Washer (ID6.4 x OD11 x 0.6t)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 661603001

Bolt (M5 x 10 mm, Hex Hd.)

$

$

Not available

8

Homelite 570412002

Outlet Cover (120 Volt)

$7.99

$

Usually ships in 3-7 days

0

9

Homelite 570412005

Outlet Cover (240 Volt)

$

$

Not available

10

Homelite 290400010

120 Volt Duplex Receptacle (GFCI)
(Superseded to 290400024)

$73.99

$

In Stock, only 2 left!

0

11

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 780351004

Circuit Breaker (30 Amp)

$

$

Not available

13

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$15.99

$

In Stock, only 2 left!

0

14A

Homelite 678824001

U-Clip

$1.49

$

In Stock, Qty 6

0

14B

Homelite 678720001

Lock Nut

$1.49

$

In Stock, only 4 left!

0

15

Homelite 660923015

Screw (M3 x 5 mm)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 140173023

Circuit Board
(Superseded to 140173034)

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 519707011

Control Box (Back Panel)

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 570766003

Rubber Boot

$1.99

$

Usually ships in 3-7 days

0
