AR 907511 P (090930316) - Ariens 7,500 Watt Generator General Assembly Parts Diagram

7,500 Watt Generator

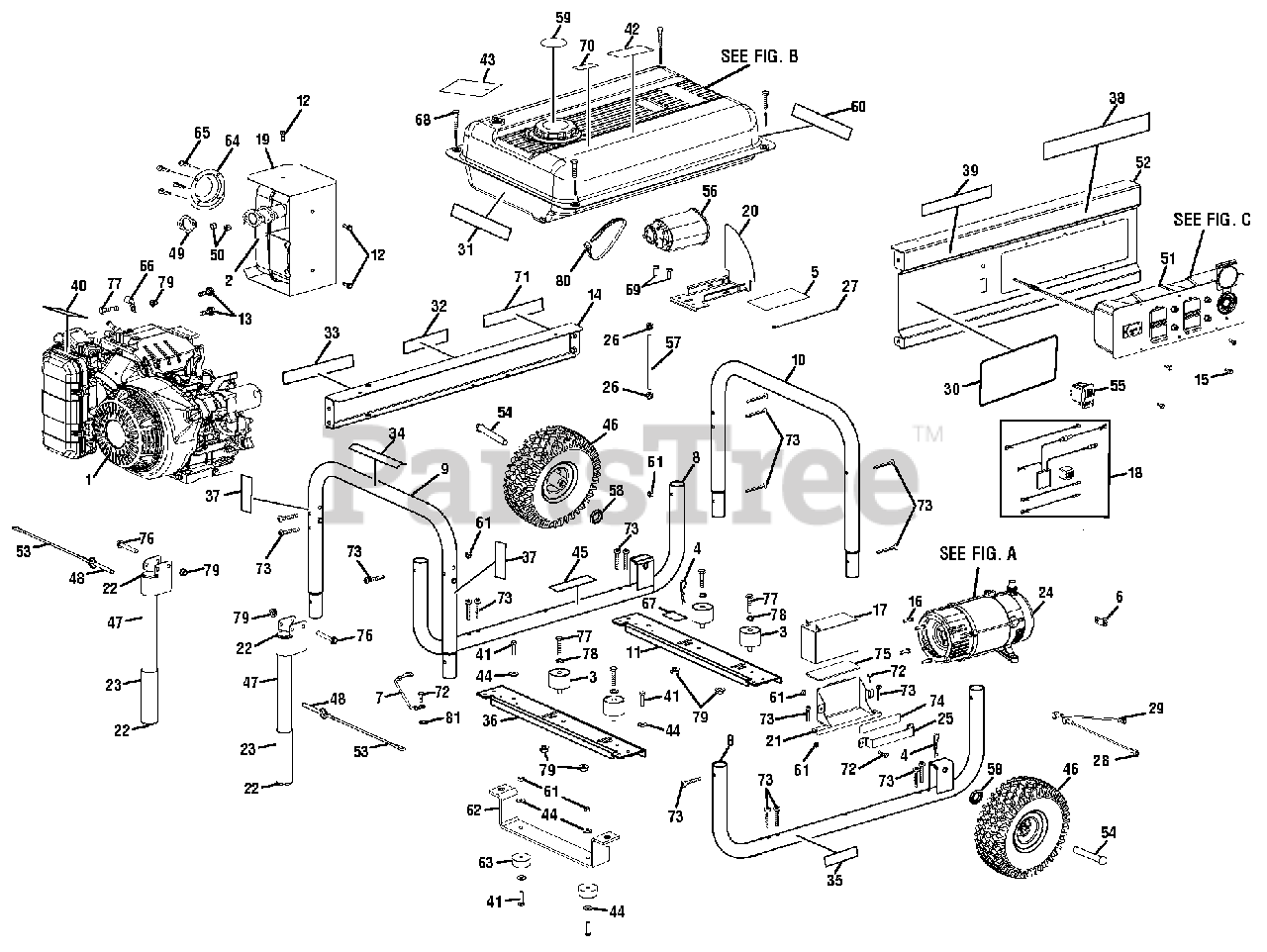

General Assembly Parts Diagram

  • Title

1

Engine (Honda)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322038

Muffler

$

$

Not available

3

Homelite 570356012

Isolator

$

$

Not available

4

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 560878003

Rubber Sheet

$

$

Not available

6

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290404009

Ground Wire Assembly

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308581159

Lower Frame Assembly

$

$

Not available

9

Homelite 308581160

Tube Assembly (Left)

$

$

Not available

10

Homelite 309044013

Tube Assembly (Right)

$33.99

$

Usually ships in 3-7 days

0

11

Homelite 638735042

Gen. Head Cross Brace

$

$

Not available

12

Homelite 660975009

Bolt (M6 x 9 mm)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 638960010

Back Panel

$

$

Not available

15

Homelite 660598001

Screw (6-20 x 3/8 in.)

$3.49

$

In Stock, only 2 left!

0

16

Homelite 660596002

Bolt (3/8-16 x1.25 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 750400005

Battery
(Superseded to 750400010)

$203.99

$

Usually ships in 3-7 days

0

18

Homelite 290435009

Wire Harness

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 638497041

Heat Shield

$39.99

$

Usually ships in 3-7 days

0

20

Homelite 678708004

Bracket (Carbon Canister)

$

$

Not available

21

Homelite 678714015

Battery Box

$20.99

$

Usually ships in 3-7 days

0

22

Homelite 519712001

Plastic Cap

$

$

Not available

23

Homelite 570357002

Handle Grip

$

$

Not available

24

Homelite 310227055

Generator Head w/AVR

$461.99

$

Usually ships in 3-7 days

0

25

Homelite 308681009

Battery Bracket Assembly

$6.49

$

In Stock, only 1 left!

0

26

Homelite 678408006

Clamp (1/2 in.)

$3.99

$

In Stock, only 1 left!

0

27

Homelite 930717003

Tie Wrap

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 290418004

Battery Cable (Red)

$9.99

$

Usually ships in 3-7 days

0

29

Homelite 290419006

Battery Cable (Black)

$10.99

$

Usually ships in 3-7 days

0

30

Homelite 940705218

Logo Label

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 940734116

Electric Start Label

$

$

Not available

32

Homelite 940680034

Hot Surface Label
(Superseded to 940680027)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 940654254

Danger Label

$9.99

$

Usually ships in 3-7 days

0

34

Homelite 940974007

Fire Danger Label

$

$

Not available

35

Homelite 940708019

Engine Lubricant Label

$3.49

$

Usually ships in 3-7 days

0

36

Homelite 638735043

Engine Cross Member

$34.99

$

Usually ships in 3-7 days

0

37

Homelite 940514005

Locking Pin Label
(Superseded to 940514001)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 940608001

Honda Label

$

$

Not available

39

Homelite 940617021

Electric Start Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940647033

Choke Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 660505031

Bolt (M6 x 1 in., Hex Hd.)
(Superseded to 661834005)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 940515016

CPSC Label

$13.99

$

Usually ships in 3-7 days

0

43

Homelite 940971087

Danger Hang Tag

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 673154002

Washer (ID6.4 x OD17 x 1.6t)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940947003

Combustion Warning Label

$

$

Not available

46

Homelite 308451043

Wheel

$

$

Not available

47

Homelite 310224062

Handle Assembly

Note: (Inc. Key No. 22-23)

$

$

Not available

48

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, only 4 left!

0

49

Homelite 678728005

Exhaust Gasket

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 678189001

Lock Nut (M8)

$

$

Not available

51

Homelite 290403056

Panel Assembly

$235.99

$

Usually ships in 3-7 days

0

52

Homelite 638959013

Front Panel

$

$

Not available

53

Homelite 310715001

Lanyard

$

$

Not available

54

Homelite 681866001

Axle

$

$

Not available

55

Homelite 270290008

Start Switch w/Lock

$

$

Not available

56

Homelite 310722001

Carbon Canister Assembly

$

$

Not available

57

Homelite 570358134

Purge Hose

$

$

Not available

58

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

59

Homelite 940872006

Fuel Stabilizer Label

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 940513027

Ground Warning Label

$

$

Not available

61

Homelite 678460009

Lock Nut (M6)

$

$

Not available

62

Homelite 638706014

Foot Bracket

$16.99

$

Usually ships in 3-7 days

0

63

Homelite 570554001

Rubber Foot

$

$

Not available

64

Homelite 638147003

Spark Arrestor

$

$

Not available

65

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

66

Homelite 519729001

J-Clamp (1/2 in.)

$

$

Not available

67

Homelite 940513002

Ground Label

$3.49

$

Usually ships in 3-7 days

0

68

Homelite 660901036

Screw (1/4-14 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 661308003

Screw (#10-16 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

71

Homelite 940974089

Fire Distance Label

$3.49

$

Usually ships in 3-7 days

0

72

Homelite 661505030

Screw (M6 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 660224019

Screw (M6 x 50 mm, T30, Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

74

Homelite 570630002

Hold Down Gasket

$2.49

$

In Stock, only 1 left!

0

75

Homelite 570630004

Battery Tray Gasket

$3.49

$

In Stock, only 1 left!

0

76

Homelite 660962004

Bolt (M8 x 55 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

77

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

78

Homelite 673155001

Washer (M8)

$3.49

$

In Stock, only 1 left!

0

79

Homelite 678774012

Lock Nut (M8)

$2.49

$

In Stock, only 3 left!

0

80

Homelite 930717003

Cable Tie (5.5 in, blk)

$2.49

$

Usually ships in 3-7 days

0

81

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

Homelite 120302024

Fastener Kit

Note: Not Shown

$24.99

$

Usually ships in 3-7 days

0

Homelite 120900220

Neutral Floating Kit, Trilingual

$26.99

$

Usually ships in 3-7 days

0

Homelite 991000995

Quick Reference Guide

$2.99

$

Usually ships in 3-7 days

0

Homelite 991000994

Operator's Manual

$

$

Not available
