Arctic Storm 34 (31AH8ER6766) - Troy-Bilt Arctic Storm 34" Snow Thrower (2020) Handle Panel Parts Diagram

Arctic Storm 34" Snow Thrower

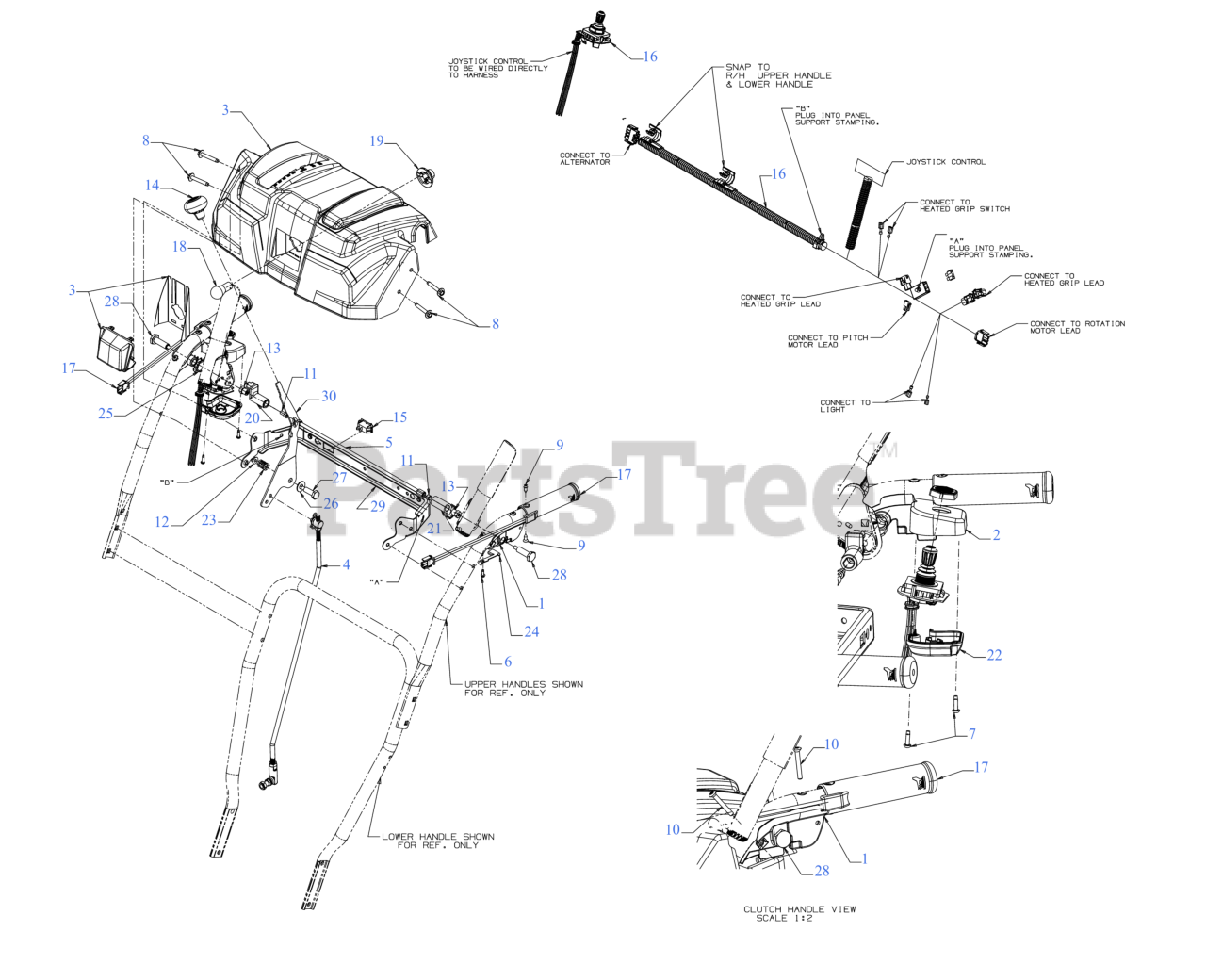

Handle Panel Parts Diagram

  • Title

1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$16.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 931-04653

CLUTCH HANDLE ASSEMBLY (RH)

$13.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 931-05001

HANDLE PANEL ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-05319

LENS

Note: (Not Shown)

$14.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 777X41805

LABEL:SNOW:2 STAGE

Note: (Not Shown)

$9.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 947-05032

SHIFT ROD ASSEMBLY

Note: (See Separate Breakdown)

$41.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-04250

PIVOT ROD

$13.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-04326

SCREW #8-16 x .50

$4.49

$

In Stock, Qty 11

0

7

Troy-Bilt 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$7.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-08934

SCREW-AB #12-24 x .625

$2.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 9

0

11

Troy-Bilt 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04081A

HEX NUT W/PATCH

$7.99

$

In Stock, Qty 16

0

14

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 725-04393

HEATED GRIP SWITCH

$17.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 925-06838

4-WAY ELEC/HEAT GRIP HARNESS

$205.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 725P12285

HEATED GRIP

$62.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 925-1629

LAMP-12 VOLT

$11.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 925-1649A

HEADLIGHT SOCKET (1/4 TURN)

$12.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-04894D

LOCK PLATE

$5.99

$

In Stock, Qty 5

0

21

Troy-Bilt 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 12

0

22

Troy-Bilt 731-11147

JOYSTICK HOUSING COVER

$6.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04238B

TORSION SPRING

$5.99

$

In Stock, Qty 6

0

26

Troy-Bilt 936-0267

FLAT WASHER .40X.88X.060
(Superseded to 736-0267)

$4.99

$

In Stock, Qty 13

0

27

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$25.99

$

In Stock, Qty 5

0

30

Troy-Bilt 790-00311C

SHIFT LEVER

Variations

Troy-Bilt 790-00311C-0637

Shift Lever - POWDER BLACK (0637)

$29.99

$

In Stock, only 4 left!

0

$23.99

$

Usually ships in 3-6 days

0
