ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Drive Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

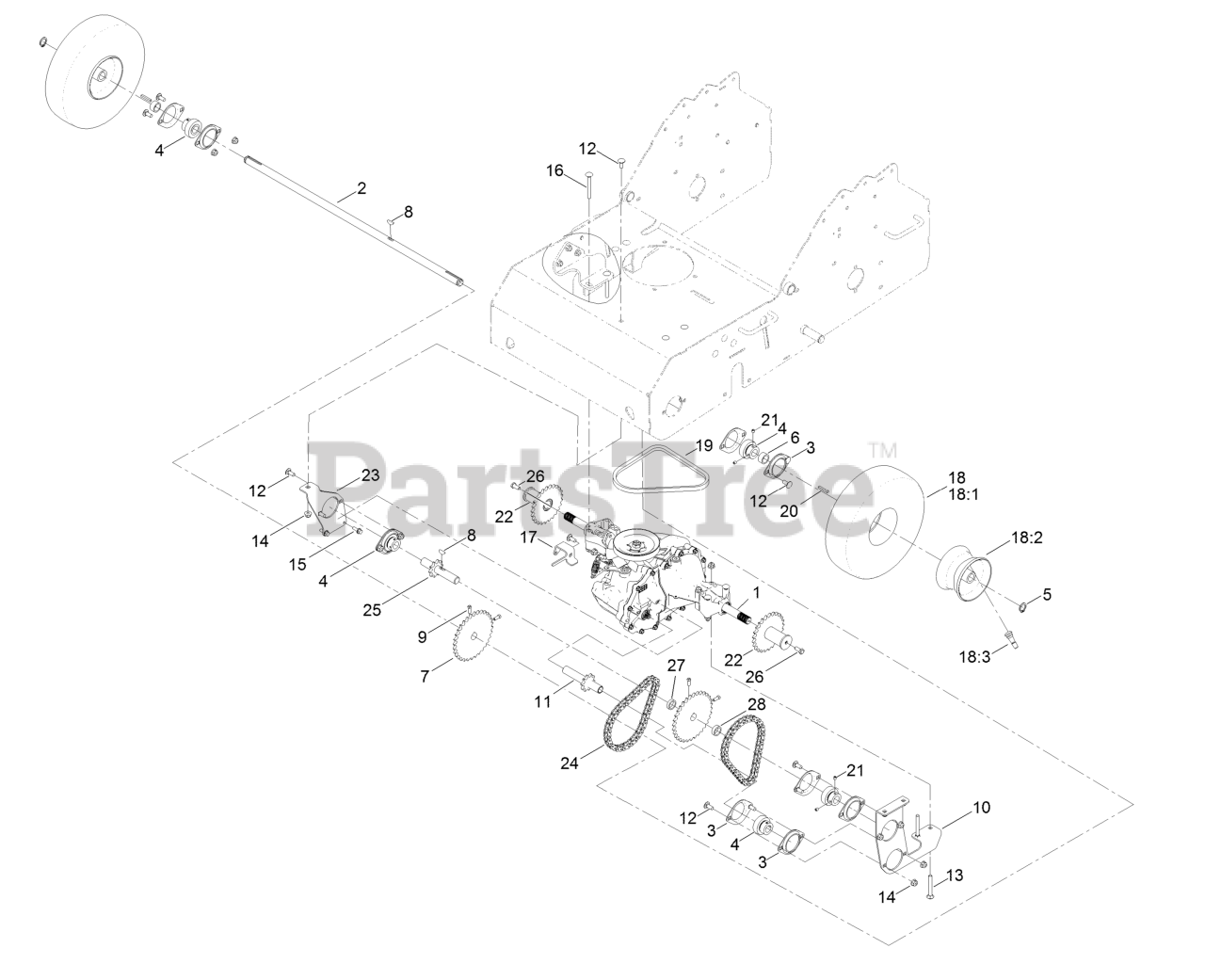

Drive Assembly Parts Diagram

  • Title

1

Exmark 121-4899

Transaxle ASM

$1360.99

$

Usually ships in 3-6 days

0

2

Exmark 121-4927

Shaft-Wheel

$98.99

$

Usually ships in 3-6 days

0

3

Exmark 105-9714

Flange-Bearing

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 120-9350

Bearing-Lock, Collar

$48.99

$

In Stock, only 2 left!

0

5

Exmark 32120-93

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

6

Exmark 121-4931

Spacer-Wheel

$6.99

$

In Stock, only 2 left!

0

7

Exmark 121-4934

Sprocket

$130.99

$

Usually ships in 3-6 days

0

8

Exmark 3257-5

Key-Woodruff

$5.49

$

In Stock, Qty 20+

0

9

Exmark 3241-5

Screw-Set

$2.49

$

In Stock, only 1 left!

0

10

Exmark 121-4936-03

Plate-Bearing

$43.99

$

Usually ships in 3-6 days

0

11

Exmark 121-4937

Shaft-Output

$175.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-23

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3230-8

Screw-CARR

$4.99

$

Usually ships in 3-6 days

0

14

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3234-4

Screw-HHF

$0.99

$

In Stock, Qty 13

0

16

Exmark 3230-9

Screw-CARR

$3.99

$

In Stock, Qty 9

0

17

Exmark 121-6067

Angle-Control

$19.99

$

Usually ships in 3-6 days

0

18

Exmark 120-3550

Wheel ASM

$117.99

$

In Stock, only 1 left!

0

18:1

Exmark 121-6081

Tire

$79.99

$

Usually ships in 3-6 days

0

18:2

Exmark 121-6082

Wheel-Rim

$54.99

$

Usually ships in 3-6 days

0

18:3

Exmark 5108

Valve

$6.99

$

In Stock, Qty 13

0

19

Exmark 121-1999

Belt-Drive

$14.99

$

In Stock, only 4 left!

0

20

Exmark 92-0049

Key-Square

$3.49

$

In Stock, Qty 18

0

21

Exmark 3245-35

Screw-Set, HSH

$0.99

$

In Stock, Qty 10

0

22

Exmark 116-9860

Sprocket

$210.99

$

Usually ships in 3-6 days

0

23

Exmark 121-4932-03

Bracket-Support, Shaft

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 121-6105

Chain-Drive Wheel

$20.99

$

In Stock, only 1 left!

0

25

Exmark 121-6108

Shaft-Jack

$131.99

$

Usually ships in 3-6 days

0

26

Exmark 3235-6

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

27

Exmark 105-3828

Spacer

$8.49

$

Usually ships in 3-6 days

0

28

Exmark 94-9524

Spacer-Control

$20.99

$

Usually ships in 3-6 days

0
