ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Tine Wheel Drive Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

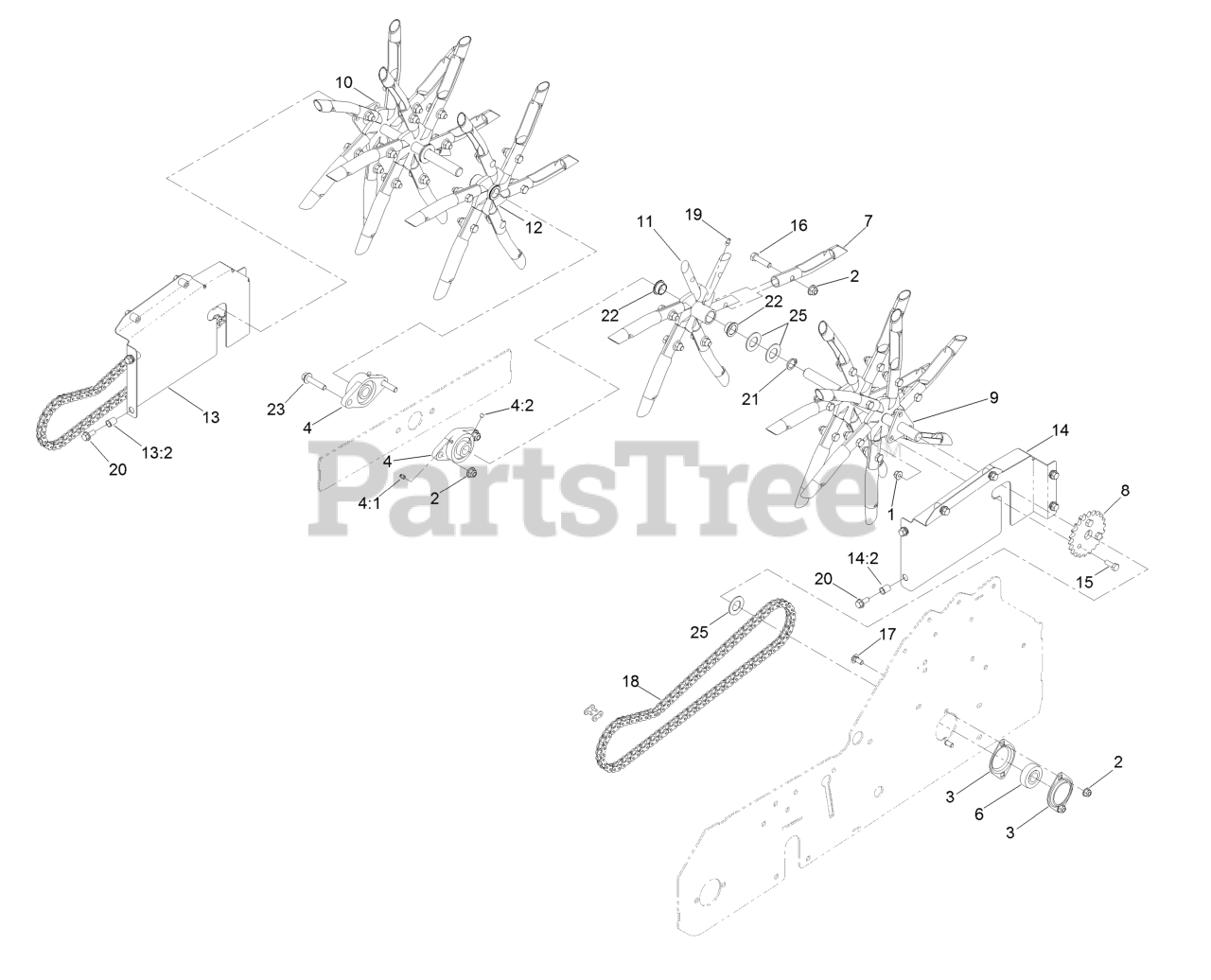

Tine Wheel Drive Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 105-9714

Flange-Bearing

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 106-7126

Bearing-Flange

$84.99

$

Usually ships in 3-6 days

0

4:1

Exmark 302-58

Fitting-Straight

$1.99

$

Usually ships in 3-6 days

0

4:2

Exmark 3245-35

Screw-Set, HSH

$0.99

$

In Stock, Qty 10

0

6

Exmark 120-9350

Bearing-Lock, Collar

$48.99

$

In Stock, only 2 left!

0

7

Exmark 126-2143

Tine-Coring (3/4 Inch)

$11.99

$

In Stock, Qty 20+

0

8

Exmark 116-9896

Sprocket-#40 22T

$62.99

$

Usually ships in 3-6 days

0

9

Exmark 121-4930

Wheel-Tine, LH

$365.99

$

Usually ships in 3-6 days

0

10

Exmark 121-6072

Wheel-Tine, RH

$365.99

$

Usually ships in 3-6 days

0

11

Exmark 121-6099

Tine-Spyder

$

$

Not available

12

Exmark 121-6096

Tine-Spyder

$196.99

$

Usually ships in 3-6 days

0

13

Exmark 126-1204

RH Chain Guard ASM

$62.99

$

Usually ships in 3-6 days

0

13:2

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

14

Exmark 126-1206

LH Chain Guard ASM

$62.99

$

Usually ships in 3-6 days

0

14:2

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

15

Exmark 322-4

Screw-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3230-1

Bolt-CARR

$1.99

$

In Stock, Qty 20+

0

18

Exmark 121-6107

Chain-Drive

$47.99

$

Usually ships in 3-6 days

0

19

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 18

0

20

Exmark 3234-47

Screw-HHF

$2.99

$

In Stock, only 4 left!

0

21

Exmark 32120-93

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

22

Exmark 108519

Bushing-Bronze

$15.99

$

In Stock, Qty 8

0

23

Exmark 3234-19

Screw-HHF

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 69-8930

Washer

$2.99

$

Usually ships in 3-6 days

0
