ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

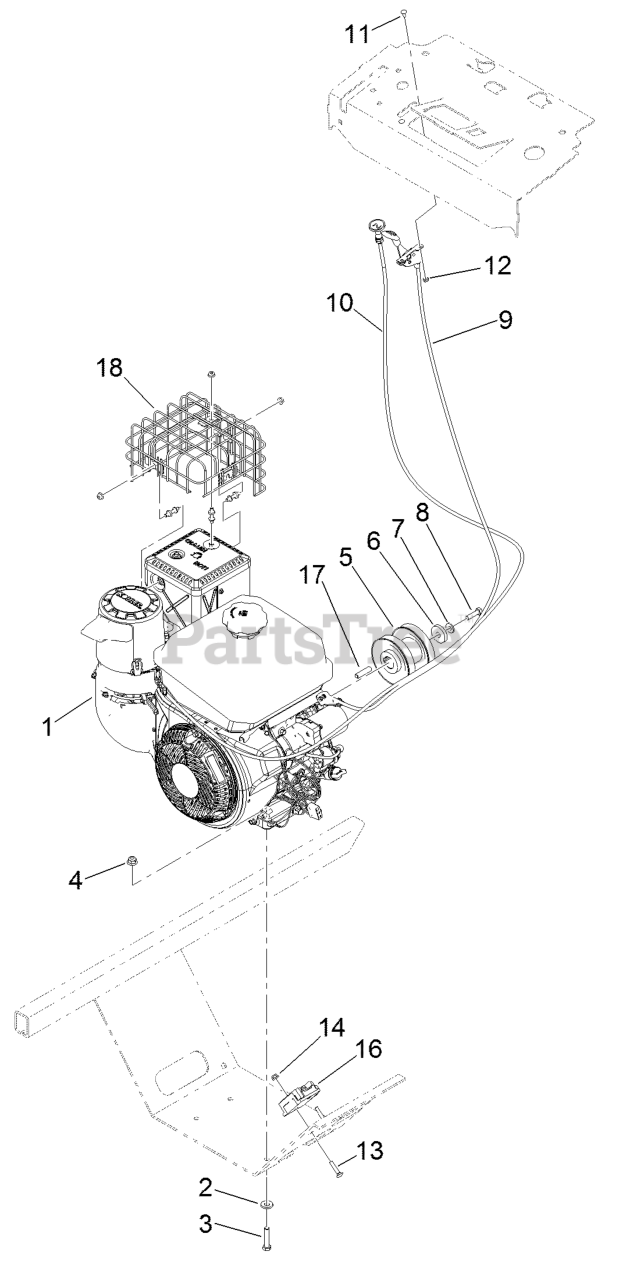

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-3981

Engine-Kohler, Ch440

$1527.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

3

Exmark 323-9

Screw-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 126-9142

Pulley

$113.99

$

Usually ships in 3-6 days

0

6

Exmark 1-543610

Washer-Clutch

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 1-303334

Washer-Spring

$2.99

$

In Stock, Qty 7

0

8

Exmark 33114-030

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 109-3958

Control-Throttle

$42.99

$

In Stock, Qty 20+

0

10

Exmark 135-2133

Cable-Choke, Push/Pull

$46.99

$

Usually ships in 3-6 days

0

11

Exmark 1-807513

Bolt-CARR

$2.99

$

In Stock, Qty 18

0

12

Exmark 3296-2

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3229-3

Screw-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-9904

Regulator

$117.99

$

Usually ships in 3-6 days

0

17

Exmark 135-3980

Key-Square, 7Mm

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 135-3366

Kit-Muffler Birdcage

$57.99

$

Usually ships in 3-6 days

0
