ARX440CKC24000 - Exmark 24" Stand-On Aerator, Kohler CH440 (SN: 404314159 - 406294344) (2019) Auxiliary Hydraulic Assembly Parts Diagram

24" Stand-On Aerator, Kohler CH440

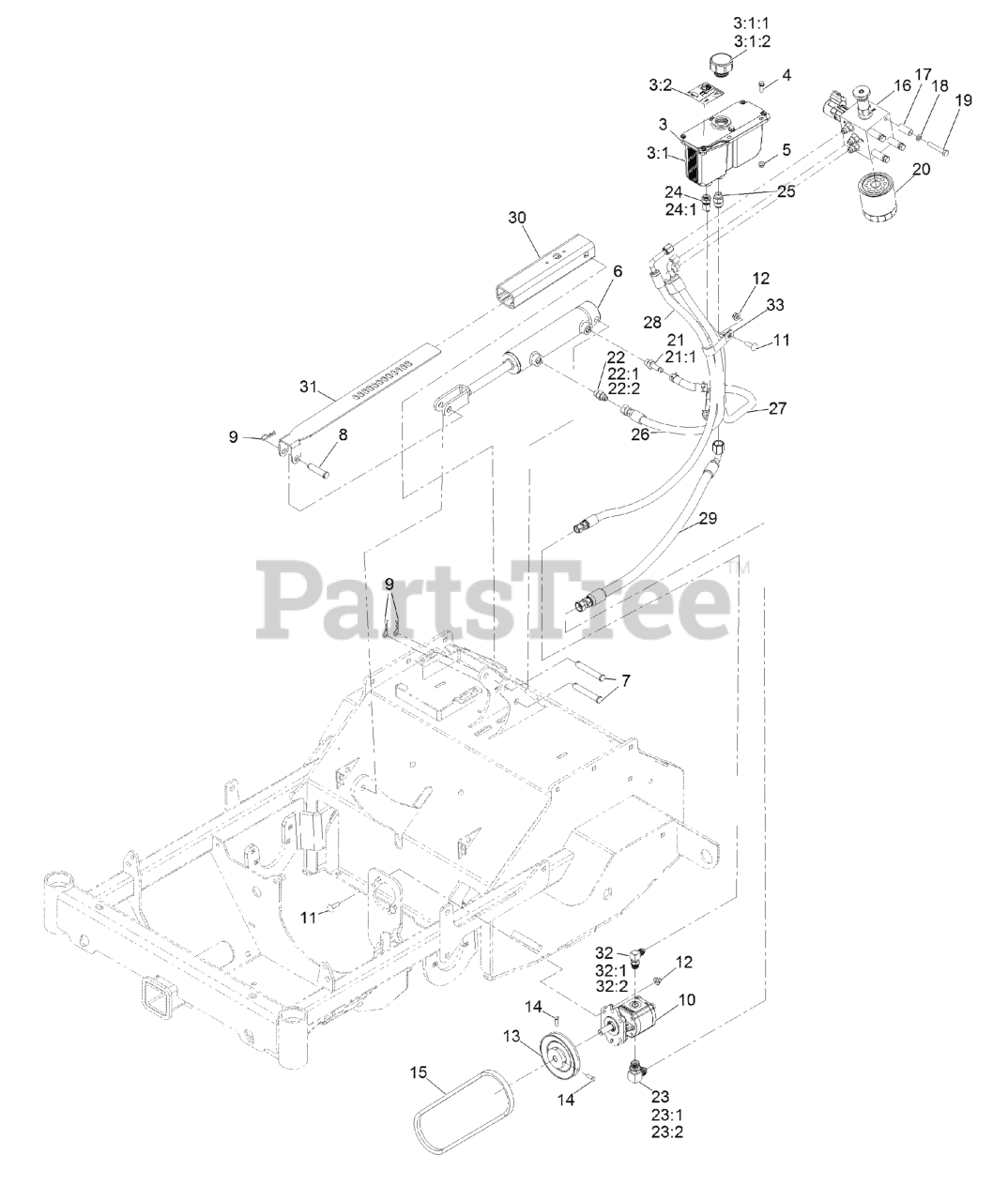

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

3

Exmark 116-2066

RESERVOIR ASM

$193.99

$

Usually ships in 3-6 days

0

3:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

3:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, Qty 20+

0

3:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

Usually ships in 3-6 days

0

3:2

Exmark 115-4212

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 126-9861

CYLINDER-HYDRAULIC

$479.99

$

Usually ships in 3-6 days

0

7

Exmark 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

8

Exmark 42195

PIN-CLEVIS

$6.99

$

Usually ships in 3-6 days

0

9

Exmark 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 10

0

10

Exmark 126-9796

PUMP-HYDRAULIC

$566.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-6667

PULLEY

$94.99

$

In Stock, only 1 left!

0

14

Exmark 3241-6

SCREW-SQH

$4.99

$

Usually ships in 3-6 days

0

15

Exmark 126-9803

BELT-V

$28.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9321

MANIFOLD ASM

$814.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

18

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

20

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$47.99

$

In Stock, Qty 20+

0

21

Exmark 103-1912

ADAPTER-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-2156

FITTING-STRAIGHT

$41.99

$

In Stock, only 4 left!

0

22:1

Exmark 1-603921

BOSS O-RING
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

22:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 103-2153

FITTING-90 DEG

$47.99

$

In Stock, only 1 left!

0

23:1

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

23:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

24

Exmark 103-1807

FITTING-BARBED, 45 DEG

$27.99

$

Usually ships in 3-6 days

0

24:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

25

Exmark 126-9952

FITTING-STR

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 126-9468

HYDRAULIC HOSE ASM

$56.99

$

Usually ships in 3-6 days

0

27

Exmark 126-9469

HYDRAULIC HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

28

Exmark 126-9470

HYDRAULIC HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

29

Exmark 126-9471

HYDRAULIC HOSE ASM

$56.99

$

Usually ships in 3-6 days

0

30

Exmark 135-1224

HOUSING-DEPTH CONTROL

$37.99

$

Usually ships in 3-6 days

0

31

Exmark 135-1385

BRACKET-DEPTH CONTROL

$27.99

$

Usually ships in 3-6 days

0

32

Exmark 103-2155

FITTING-90 DEG

$28.99

$

Usually ships in 3-6 days

0

32:1

Exmark 1-603921

BOSS O-RING
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

32:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 2412-137

Clamp-R, Double

$6.99

$

Usually ships in 3-6 days
