ARX481CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS481V (SN: 315000000 - 315999999) (2015) Caster Wheel and Fork Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V

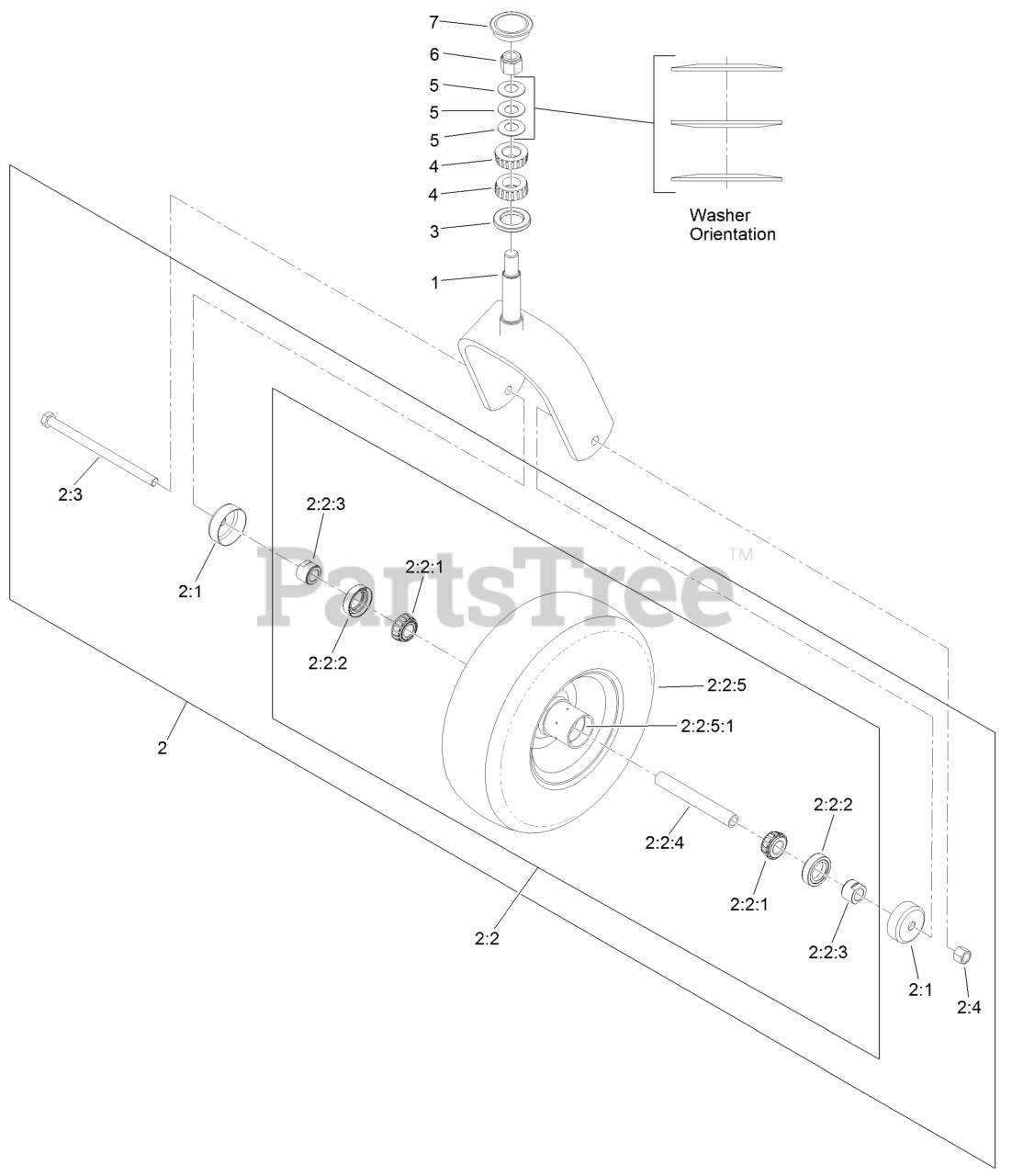

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 116-6704-01

CASTER

$125.99

$

In Stock, only 1 left!

0

2

Exmark 109-9126

WHEEL & TIRE ASM

$337.99

$

In Stock, Qty 11

0

2:1

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

2:2

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

2:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

2:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 13

0

2:2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:2:4

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$15.99

$

In Stock, Qty 6

0

2:2:5

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

2:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

2:3

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 13

0

2:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

7

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0
