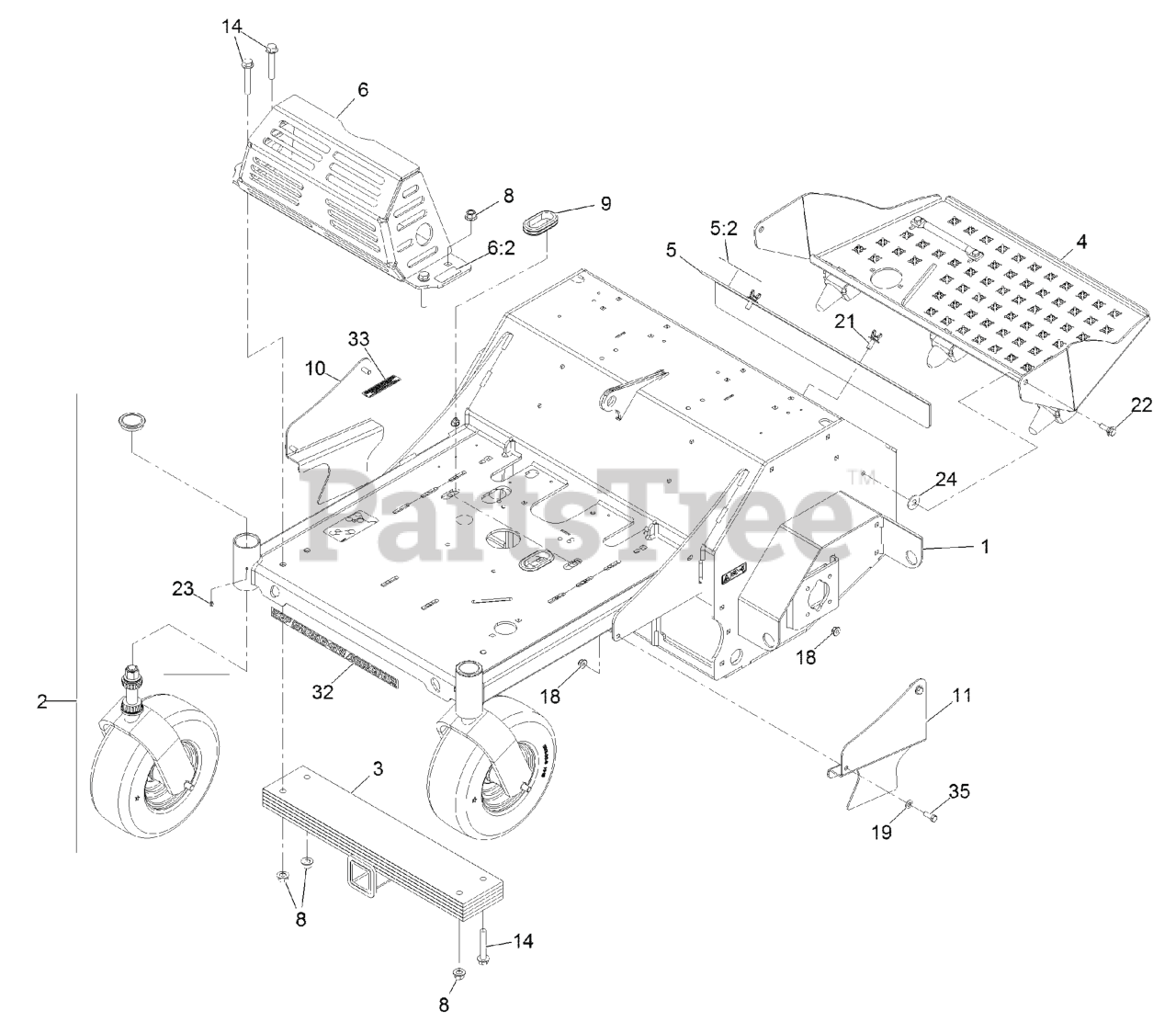

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 400000000 - 402082299) (Rev B) (2017) Main Frame Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-8138

135-2517
(Superseded to 135-2517)

$2172.99

$

Usually ships in 3-6 days

0

2

Front Caster ASM W/Fork

Note: Not serviced separately

$

$

Not available

3

Exmark 116-6536-01

WEIGHT

$557.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9134

PLATFORM ASM W/DECAL & RO

$508.99

$

Usually ships in 3-6 days

0

5

Exmark 116-7300

ACCESS COVER ASM

$118.99

$

Usually ships in 3-6 days

0

5:2

Exmark 121-6163

DECAL-OPERATION, TINE GRO

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8258

MUFFLER GUARD ASM

$281.99

$

Usually ships in 3-6 days

0

6:2

Exmark 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 126-0015

GROMMET

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 116-6612-01

GUARD-CHAIN, RH

$56.99

$

In Stock, only 2 left!

0

11

Exmark 116-6611-01

GUARD-CHAIN, LH

$56.99

$

In Stock, only 2 left!

0

14

Exmark 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 126-6752

SCREW-THUMB

$7.49

$

In Stock, only 3 left!

0

22

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 9

0

23

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

24

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 126-7033

DECAL-AERATOR 30 LOGO

$8.49

$

Usually ships in 3-6 days

0

33

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

34

Exmark 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 3 left!

0

35

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
