ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

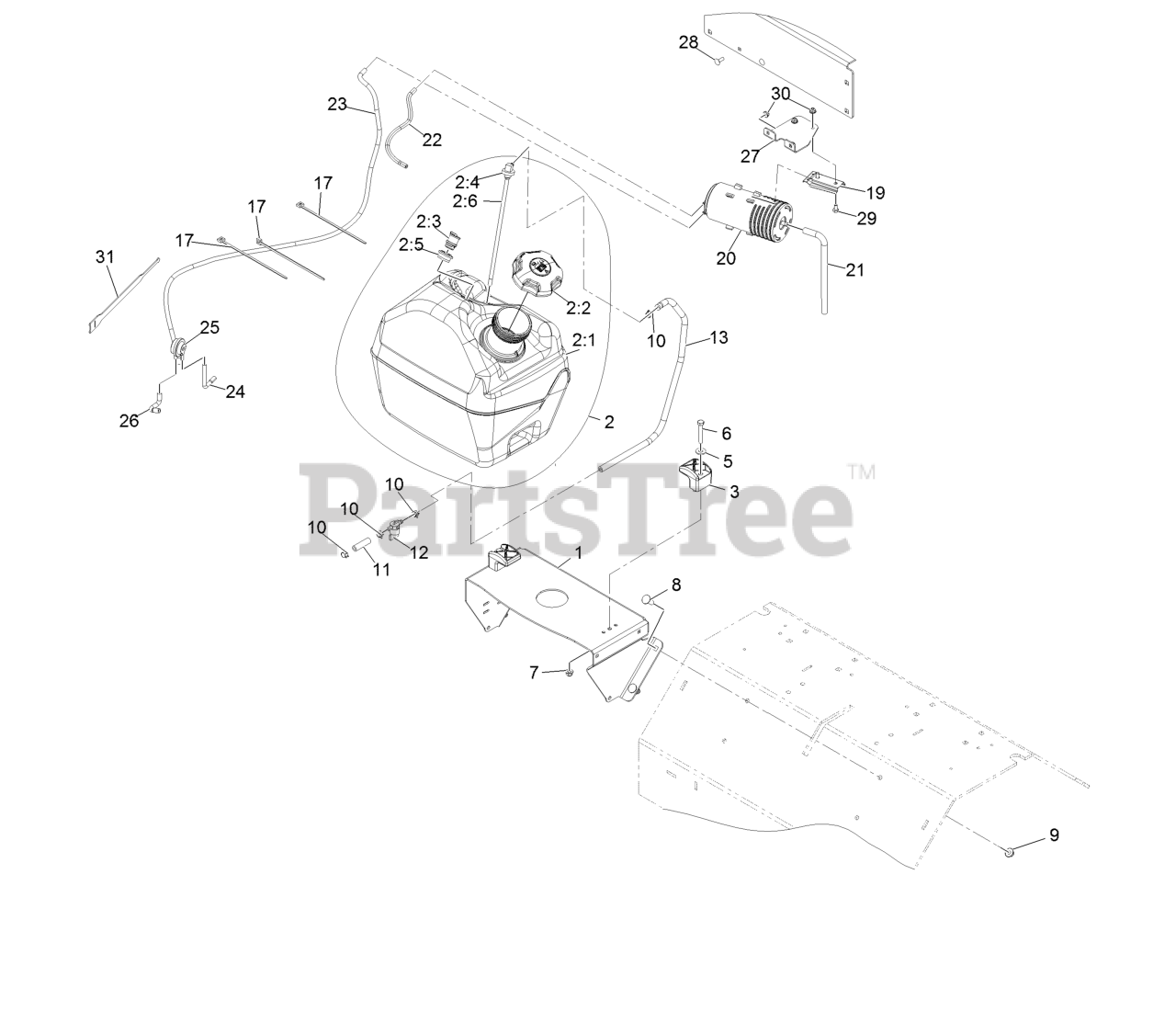

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-9541-01

Support-Tank, Fuel

$106.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9062

Fuel Tank ASM
(Superseded to 140-4343)

$279.99

$

In Stock, only 2 left!

0

2:1

Exmark 126-8886

Tank-Fuel 5 Gal
(Superseded to 140-4343)

$279.99

$

In Stock, only 2 left!

0

2:2

Exmark 135-0330

Cap-Fuel, Ratcheting (3.5 Inch)
(Superseded to 137-4119)

$26.99

$

In Stock, Qty 9

0

2:3

Exmark 114-0284

Grommet

$2.99

$

In Stock, Qty 20+

0

2:4

Exmark 119-3547

Valve-Vent, Fuel

$16.99

$

In Stock, Qty 12

0

2:5

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 20+

0

2:6

Exmark 109-9364

Fitting-Fuel (W/Line And Screen)
(Superseded to 116-2459)

$39.99

$

In Stock, only 1 left!

0

3

Exmark 107-4543

Clamp

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

11

Exmark 119-7856

Hose-Fuel

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 17

0

13

Exmark 135-0494

Hose-Line, Gas

$12.99

$

Usually ships in 3-6 days

0

17

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

19

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

Canister-Carbon, 800Cc

$73.99

$

In Stock, only 2 left!

0

21

Exmark 115-0962

Hose-Vent, Canister

$8.99

$

In Stock, only 2 left!

0

22

Exmark 135-0986

Hose-Emissions

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 126-4179

Hose-Vent, Formed

$15.99

$

Usually ships in 3-6 days

0

24

Exmark 119-8501

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 116-2232

Valve-Control, Vacuum

$25.99

$

In Stock, only 3 left!

0

26

Exmark 119-8502

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 126-2991-03

Bracket-Mounting, Canister

$30.99

$

Usually ships in 3-6 days

0

28

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 11

0

29

Exmark 321-2

Screw-HH 1/4-20 X 1/2

$3.49

$

In Stock, only 3 left!

0

30

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-2469

Strap-Velcro, Cable Tie

$18.99

$

Usually ships in 3-6 days

0
