ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

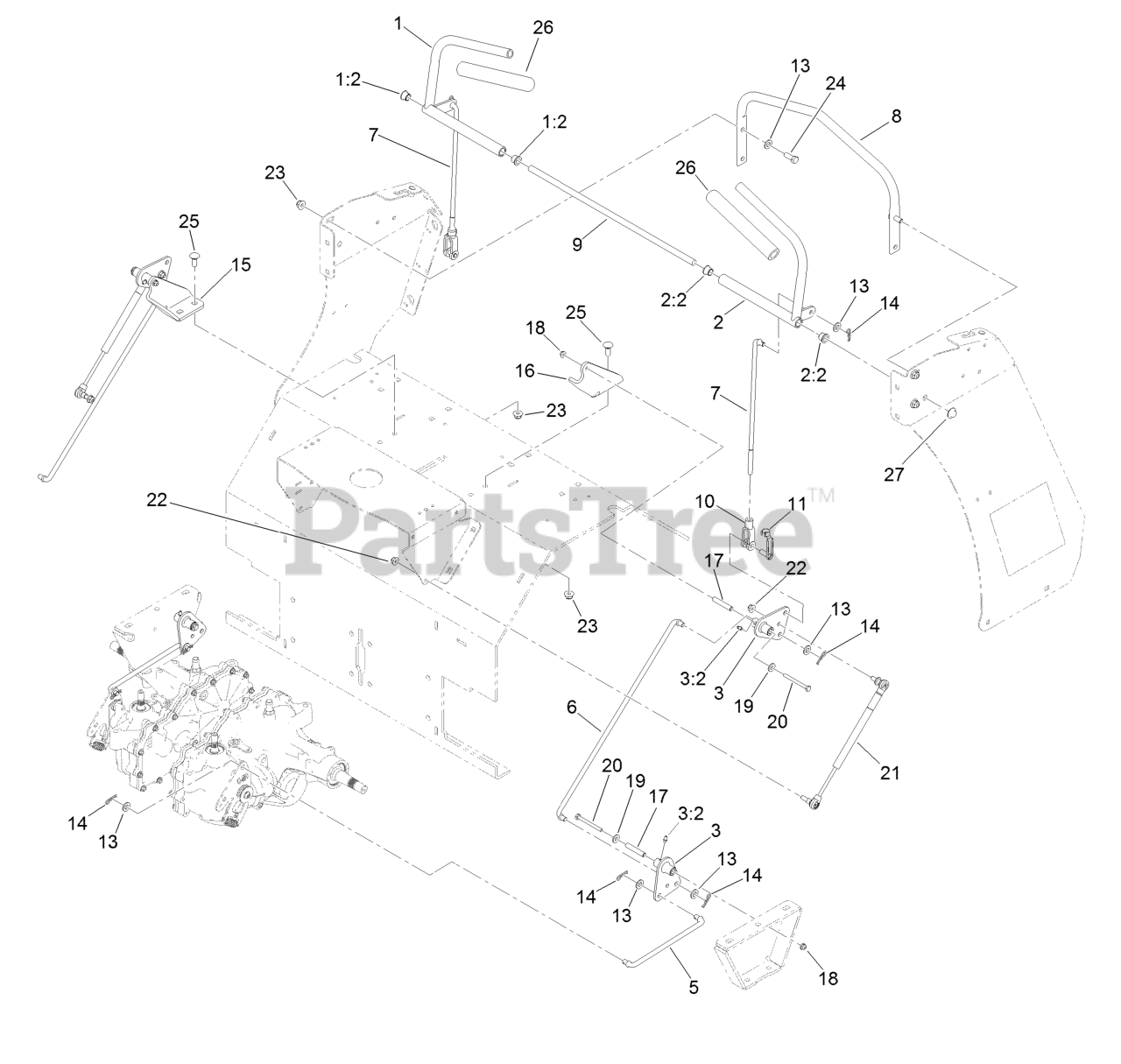

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 116-6567

RH Control Handle ASM

$172.99

$

In Stock, Qty 7

0

1:2

Exmark 116-4279

Bearing-Flange

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-6566

LH Control Handle ASM

$172.99

$

In Stock, only 2 left!

0

2:2

Exmark 116-4279

Bearing-Flange

$5.49

$

In Stock, Qty 20+

0

3

Exmark 126-0340

Crank-Bell

$64.99

$

Usually ships in 3-6 days

0

3:2

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 18

0

5

Exmark 116-6722

Link-Control, Hydro

$26.99

$

Usually ships in 3-6 days

0

6

Exmark 116-9298

Link-Control, Bell Crank

$32.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6730

Link-Control, Bell Crank

$37.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6608-03

Bar-Reference

$136.99

$

Usually ships in 3-6 days

0

9

Exmark 116-6607

Shaft-Pivot, Control

$19.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, only 2 left!

0

11

Exmark 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 20+

0

13

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-806003

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-6576-03

Bracket-Pivot, RH

$30.99

$

Usually ships in 3-6 days

0

16

Exmark 116-6577-03

Bracket-Pivot, LH

$30.99

$

Usually ships in 3-6 days

0

17

Exmark 116-7224

Spacer

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-2

Washer-Flat
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 321-14

Screw-HH

$4.99

$

In Stock, Qty 12

0

21

Exmark 116-0027

Damper-Control, Motion
(Superseded to 142-8117)

$103.99

$

In Stock, Qty 20+

0

22

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

Screw-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 3231-2

Bolt-CARR

$1.99

$

In Stock, Qty 20+

0

26

Exmark 103-8153

Grip-Lever, Control

$14.99

$

In Stock, only 1 left!

0

27

Exmark 32112-14

Nut-Push

$2.99

$

In Stock, Qty 20+

0
