ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Tower Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

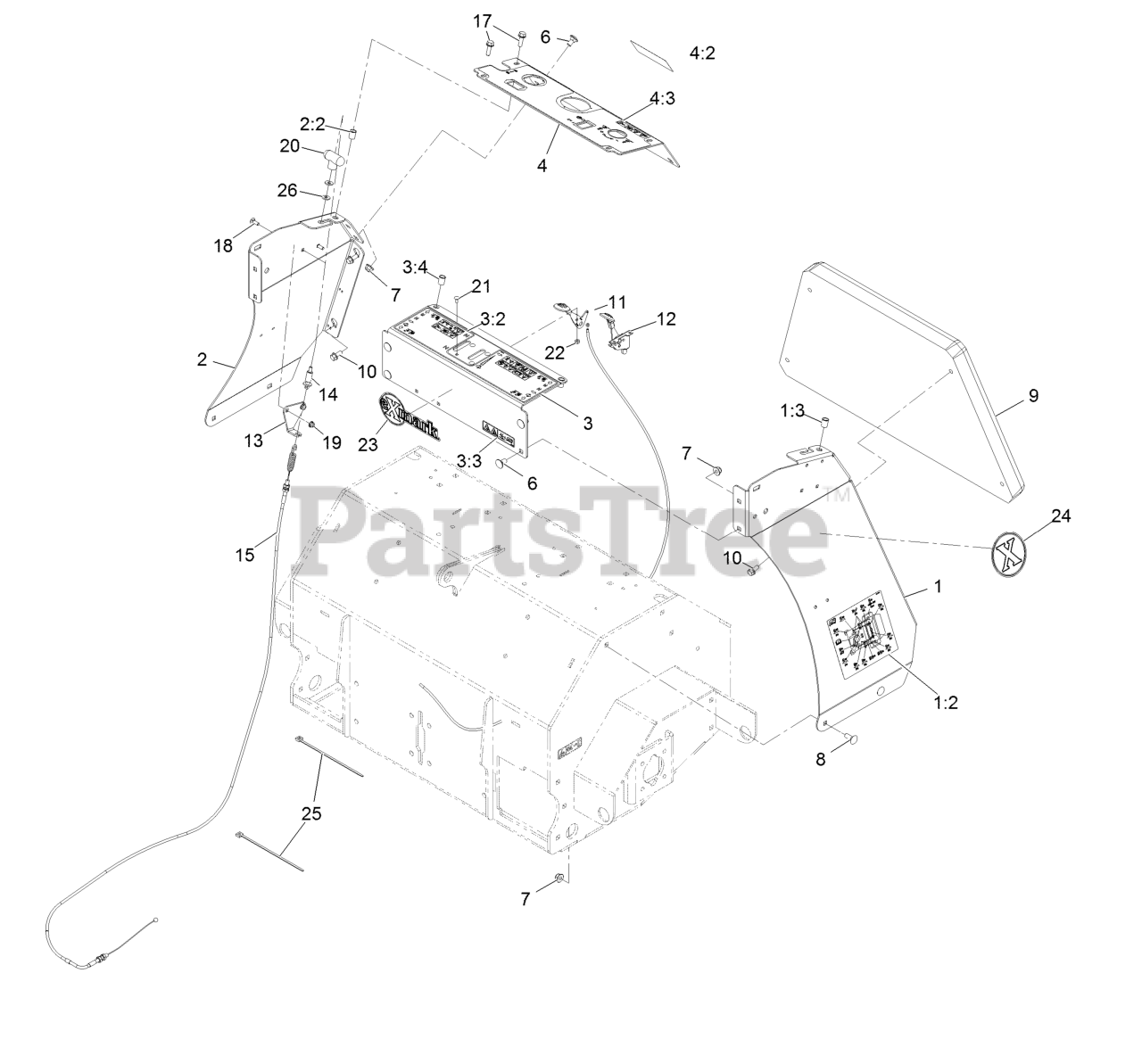

Tower Assembly Parts Diagram

  • Title

1

Exmark 116-9386

Panel-Side,LH W/Decals-Black

$246.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-9392

Decal-Service Aid CE

$18.99

$

Usually ships in 3-6 days

0

1:3

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7658

ASM-Panel,Side RH (Black)

$246.99

$

Usually ships in 3-6 days

0

2:2

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4525

ASM-Plate W/Decal

$174.99

$

Usually ships in 3-6 days

0

3:2

Exmark 121-6164

Decal-Warning, Control Panel

$31.99

$

Usually ships in 3-6 days

0

3:3

Exmark 121-6162

Decal-Warning, Tines

$5.49

$

Usually ships in 3-6 days

0

3:4

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4524

ASM-Panel W/Decals

$144.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-2841

Decal-Warning

$9.99

$

Usually ships in 3-6 days

0

4:3

Exmark 126-4528

Decal-Danger, Control Panel

$25.99

$

Usually ships in 3-6 days

0

6

Exmark 3231-1

Bolt-Carriage 3/8-16 X 3/4

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

9

Exmark 116-6765

Cushion, Grey

$264.99

$

Usually ships in 3-6 days

0

10

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 109-9147

Control-Choke

$42.99

$

In Stock, only 2 left!

0

12

Exmark 109-3958

Control-Throttle

$42.99

$

In Stock, Qty 20+

0

13

Exmark 116-6630

Bracket-Cable, Brake

$17.99

$

In Stock, only 2 left!

0

14

Exmark 116-7504

Link-Cable, Brake

$53.99

$

Usually ships in 3-6 days

0

15

Exmark 116-7503

Cable-Brake

$86.99

$

In Stock, only 3 left!

0

17

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 12

0

18

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 16

0

19

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 116-7607

Knob-Tee

$12.99

$

In Stock, only 1 left!

0

21

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 18

0

22

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

23

Exmark 126-6877

Decal, Exmark Logo

$7.49

$

In Stock, Qty 20+

0

24

Exmark 126-7457

Decal-X-Logo

$8.99

$

Usually ships in 3-6 days

0

25

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

26

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0
