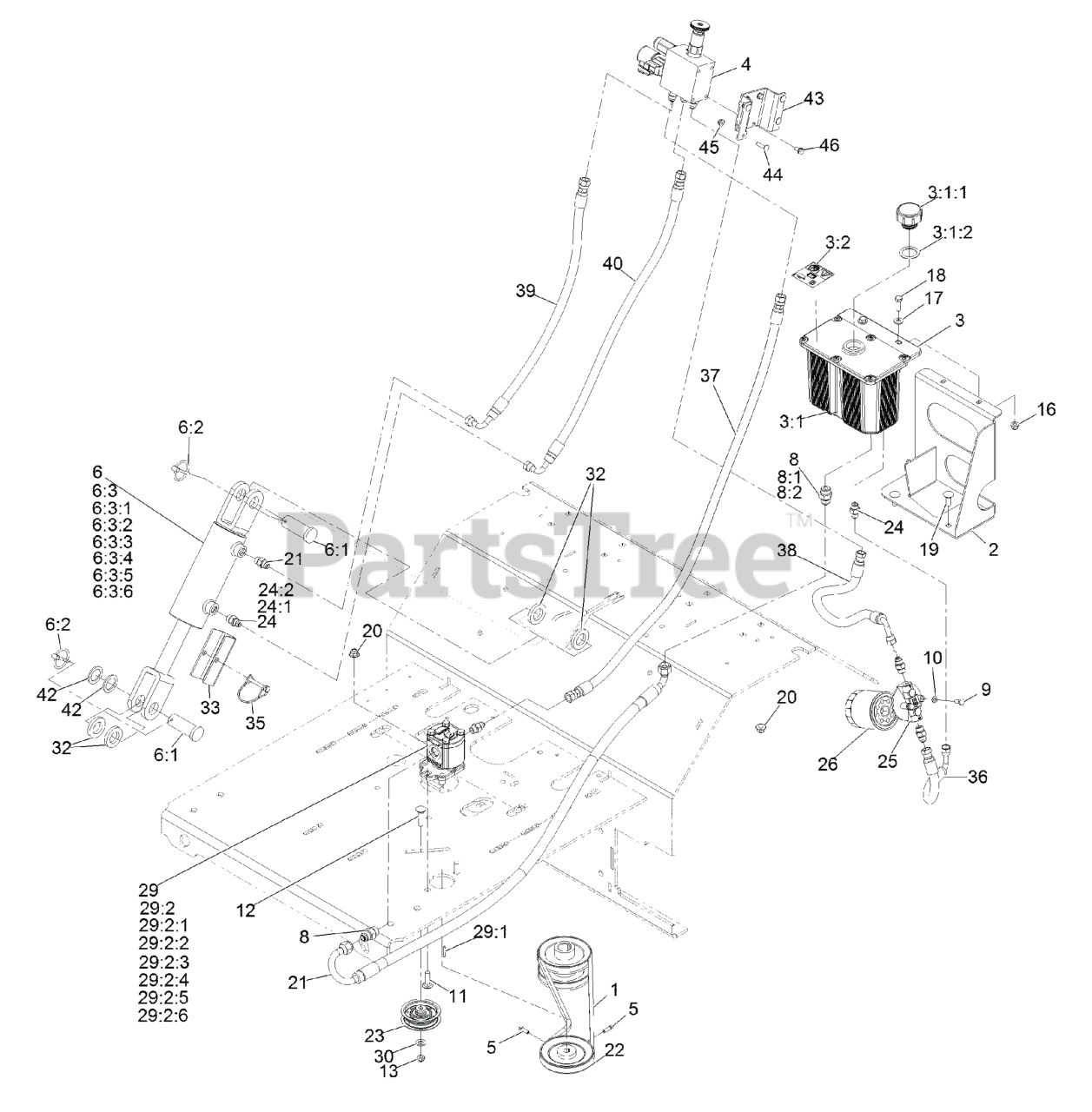

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) > Parts Diagrams (18) > Auxiliary Hydraulic Assembly

  • Title
116-8874

1

BELT-4L SECTION

Part# 116-8874

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.71

116-6618-03

2

BRACKET-TANK, HYDRAULIC

Part# 116-6618-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.24

116-7557

3

RESERVOIR ASM

Part# 116-7557

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $200.58

3:1

Tank-Hydraulic

Part#

Note: Not serviced separately

Not available

103-1948

3:1:1

Cap-Reservoir, HYD

Part# 103-1948 (Superseded to 103-7615)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

103-1949

3:1:2

GASKET-CAP

Part# 103-1949

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

115-4212

3:2

DECAL-WARNING

Part# 115-4212

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.44

135-5127

4

Manifold ASM

Part# 135-5127

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $555.55

3241-6

5

SCREW-SQH

Part# 3241-6

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.44

116-6969

6

HYD CYLINDER ASM

Part# 116-6969

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $628.50

116-7290

6:1

PIN-CLEVIS

Part# 116-7290

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.10

92-1298

6:2

PIN-LYNCH

Part# 92-1298

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.85

127-3234

6:3

SEAL KIT

Part# 127-3234

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $87.58

6:3:1

O-Ring

Part#

Note: Not serviced separately

Not available

6:3:2

Backup Ring

Part#

Note: Not serviced separately

Not available

6:3:3

Psp Seal

Part#

Note: Not serviced separately

Not available

6:3:4

Bs Seal

Part#

Note: Not serviced separately

Not available

6:3:5

Dust Seal

Part#

Note: Not serviced separately

Not available

6:3:6

O-Ring

Part#

Note: Not serviced separately

Not available

1-603990

8

FITTING-STRAIGHT

Part# 1-603990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.53

1-603920

8:1

O-RING

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-603992

8:2

O-RING

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

321-3

9

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-805004

10

WASHER-LOCK

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

3231-25

11

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

3231-4

12

SCREW-CARR

Part# 3231-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

3296-59

13

121-4600

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

104-8300

16

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3256-2

17

WASHER-FLAT

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

322-5

18

SCREW-HH

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3231-2

19

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

104-8301

20

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

116-9309

21

HOSE-HYDRAULIC

Part# 116-9309

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.60

116-6667

22

PULLEY

Part# 116-6667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.63

116-6760

23

PULLEY-IDLER, FLAT

Part# 116-6760

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.83

103-2156

24

FITTING-STRAIGHT

Part# 103-2156

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.84

1-603921

24:1

237-42

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

103-1020

24:2

O-RING

Part# 103-1020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.87

104-7836

25

HEAD-FILTER

Part# 104-7836

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

109-4180

26

FILTER-25 MICRON, BI-DIRE

Part# 109-4180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

116-9129

29

HYDRAULIC PUMP ASM

Part# 116-9129

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $524.57

115-7855

29:1

KEY-SQUARE

Part# 115-7855

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.04

112-0199

29:2

SEAL KIT

Part# 112-0199

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.34

29:2:1

Seal-Anti Extrusion

Part#

Note: Not serviced separately

Not available

29:2:2

Seal-Anti Extrusion

Part#

Note: Not serviced separately

Not available

29:2:3

Seal-Shaft

Part#

Note: Not serviced separately

Not available

29:2:4

Seal-Upper

Part#

Note: Not serviced separately

Not available

29:2:5

Seal

Part#

Note: Not serviced separately

Not available

29:2:6

O-Ring

Part#

Note: Not serviced separately

Not available

3256-24

30

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

116-6781

32

SPACER

Part# 116-6781

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.38

116-7307-01

33

STOP-CYLINDER

Part# 116-7307-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.09

100-1663

35

PIN-HITCH

Part# 100-1663

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.26

116-6675

36

HOSE-HYDRAULIC, LP

Part# 116-6675

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.47

116-8151

37

HOSE-HYDRAULIC

Part# 116-8151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.63

116-9308

38

HOSE-HYDRAULIC

Part# 116-9308

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.97

116-6677

39

HOSE-HYDRAULIC

Part# 116-6677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.00

135-5973

40

Hydraulic Hose ASM

Part# 135-5973

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.01

3-8514

42

WASHER-THRUST

Part# 3-8514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

135-3603-03

43

Bracket-Sensor, Control (Depth)

Part# 135-3603-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.97

3229-30

44

SCREW-CARR

Part# 3229-30

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

104-7201

45

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

119-1065

46

SCREW-HWH

Part# 119-1065

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.72
