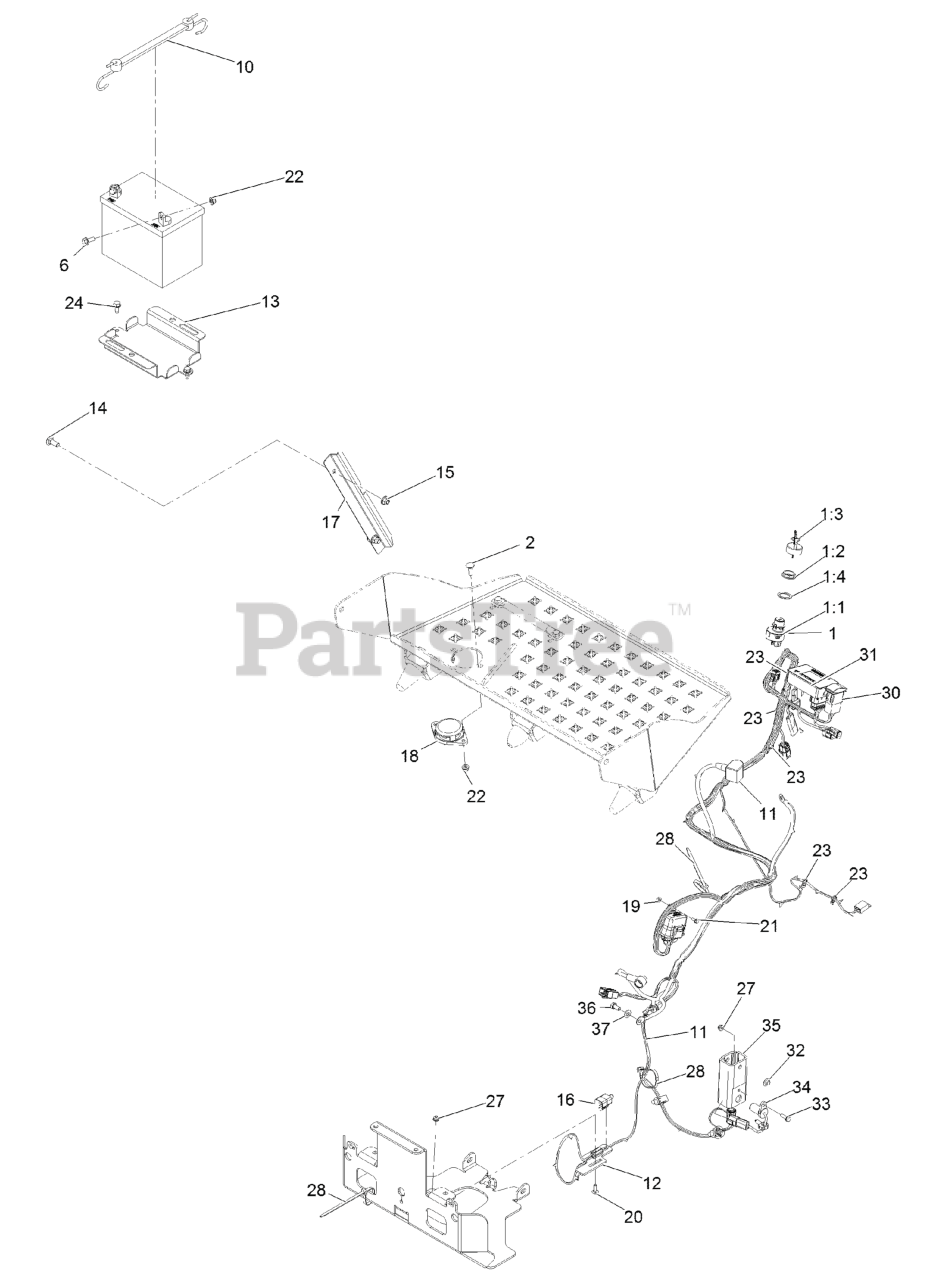

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS541V

Electrical Assembly Parts Diagram

  • Title

1

Exmark 126-6285

IGNITION SWITCH ASM

$52.99

$

In Stock, Qty 10

0

1:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

1:2

Exmark 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 4 left!

0

1:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

Usually ships in 3-6 days

0

1:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 2 left!

0

2

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

6

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

10

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

11

Exmark 135-5919

Harness-Wire

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$487.99

$

Usually ships in 3-6 days

0

12

Exmark 116-7589

MOUNT-SWITCH

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 116-9383-03

BRACKET-BATTERY

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

17

Exmark 116-9394-03

GUARD-HARNESS

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 92-6282

SWITCH-SEAT

$33.99

$

In Stock, only 3 left!

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

21

Exmark 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

27

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

30

Exmark 100-1535

SWITCH

$85.99

$

In Stock, only 4 left!

0

31

Exmark 135-6910

Hour Meter ASM

$157.99

$

Usually ships in 3-6 days

0

32

Exmark 3290-320

Nut-Push

$1.99

$

In Stock, Qty 20+

0

33

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

34

Exmark 135-4381

Sensor, Quadrature

$207.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6609

Housing-Depth Control 30

$68.99

$

Usually ships in 3-6 days

0

36

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

37

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
