ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019)

30" Stand-On Aerator, Kawasaki FS541V

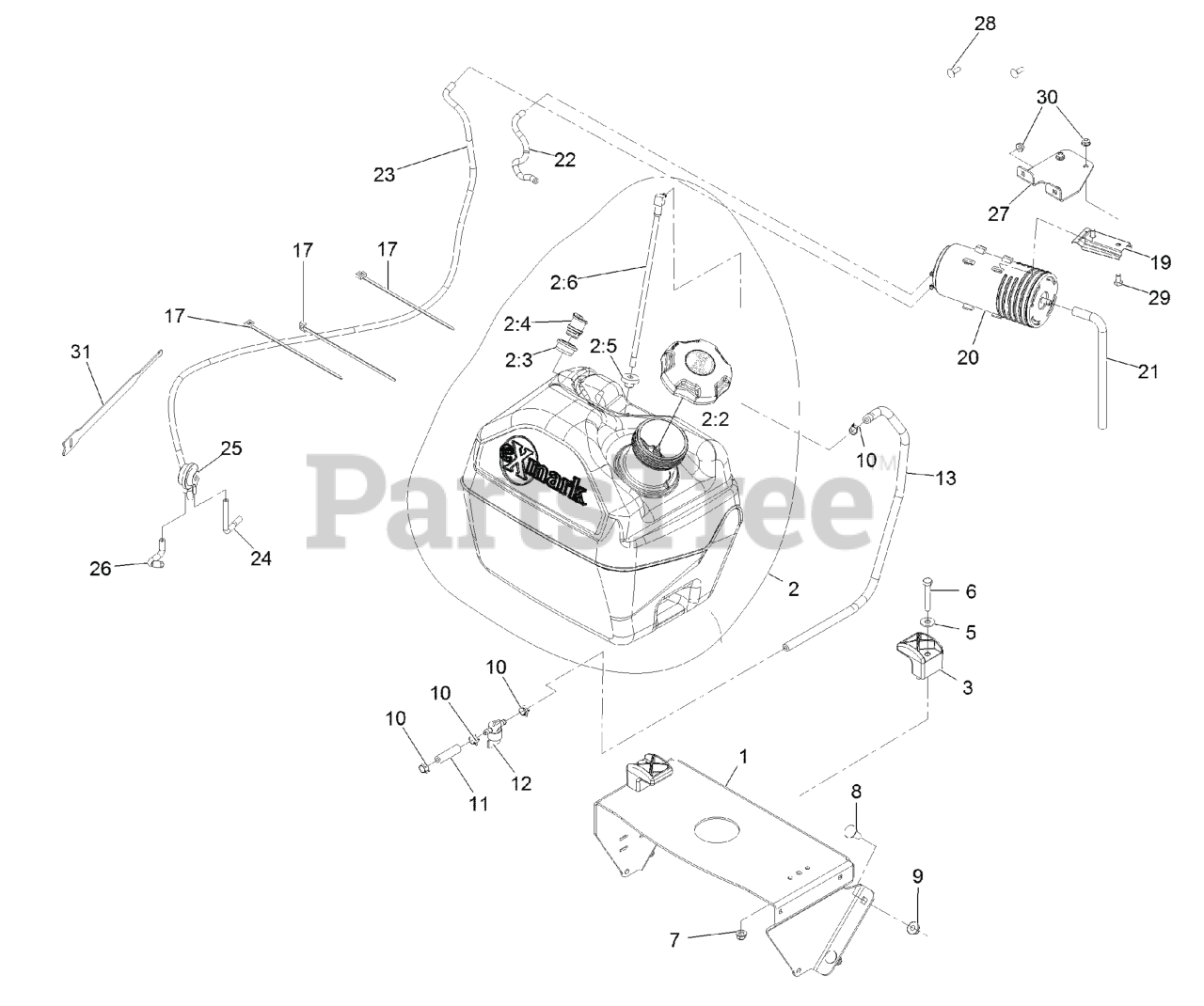

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) > Parts Diagrams (18) > Fuel Assembly

  • Title
116-9541-01

1

SUPPORT-TANK, FUEL

Part# 116-9541-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.60

135-2855

2

ASM, FUEL TANK 5 GAL

Part# 135-2855

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.16

137-4119

2:2

CAP-FUEL, RATCHETING

Part# 137-4119

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.98

114-0284

2:3

GROMMET

Part# 114-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.89

119-3547

2:4

VALVE-VENT, FUEL

Part# 119-3547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.00

46-6560

2:5

BUSHING

Part# 46-6560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.52

109-9364

2:6

116-2459

Part# 109-9364 (Superseded to 116-2459)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

107-4543

3

CLAMP

Part# 107-4543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.84

3256-3

5

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

322-10

6

SCREW-HH

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

104-8300

7

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-22

8

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.56

104-8301

9

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

2412-98

10

CLAMP-HOSE

Part# 2412-98

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

119-7856

11

HOSE-FUEL

Part# 119-7856

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.06

1-603770

12

VALVE-FUEL

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

135-0494

13

HOSE-LINE, GAS

Part# 135-0494

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.15

1-303335

17

TIE-PLASTIC

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.98

114-0292

19

BRACKET-CANISTER, CARBON

Part# 114-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

117-1221

20

CANISTER-CARBON, 800CC

Part# 117-1221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.81

115-0962

21

HOSE-VENT, CANISTER

Part# 115-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.08

135-0986

22

HOSE-EMISSIONS

Part# 135-0986

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.21

126-4179

23

HOSE-VENT, FORMED

Part# 126-4179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.65

119-8501

24

HOSE-VENT, FORMED

Part# 119-8501

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.92

116-2232

25

VALVE-CONTROL, VACUUM

Part# 116-2232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.31

119-8502

26

HOSE-VENT, FORMED

Part# 119-8502

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.92

126-2991-03

27

BRACKET-MOUNTING, CANISTE

Part# 126-2991-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.97

3229-1

28

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

321-2

29

SCREW-HH

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

104-7201

30

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

116-2469

31

STRAP-VELCRO, CABLE TIE

Part# 116-2469

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.69
