ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019)

30" Stand-On Aerator, Kawasaki FS541V

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) > Parts Diagrams (18) > Ground Drive Assembly

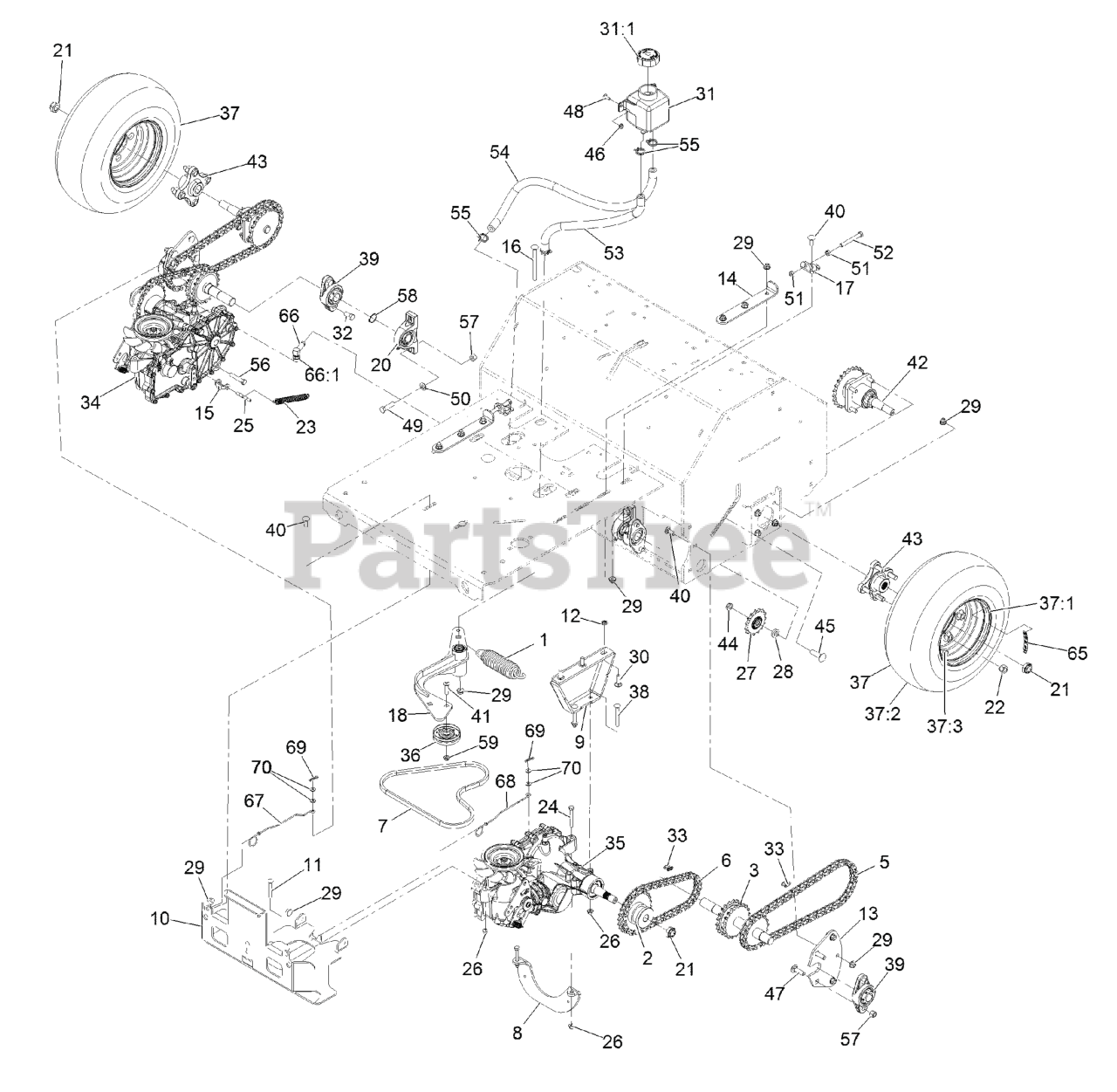

  • Title
116-6317

1

SPRING-EXTENSION

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.39

116-9305

2

HUB-DRIVE, CHAIN

Part# 116-9305

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $106.08

126-5625

3

JACKSHAFT

Part# 126-5625

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $143.37

126-8808

5

CHAIN-ROLLER

Part# 126-8808

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $145.87

126-8807

6

CHAIN-ROLLER

Part# 126-8807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $116.69

116-8874

7

BELT-4L SECTION

Part# 116-8874

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.71

135-5051-03

8

Brace-Angle

Part# 135-5051-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.15

116-9710-03

9

MOUNT-TRANSMISSION

Part# 116-9710-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.29

126-5495-03

10

GUARD-TRANSMISSION

Part# 126-5495-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $145.87

3230-7

11

BOLT-CARR

Part# 3230-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.51

107-3154

12

NUT-PUSH

Part# 107-3154

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

116-6596-01

13

PLATE-JACKSHAFT

Part# 116-6596-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.09

116-6619

14

PLATE-ADJUSTMENT, TRANSMI

Part# 116-6619

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.00

116-7597

15

YOKE-BRAKE, PARK

Part# 116-7597

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.79

9000779

16

BOLT-CARR

Part# 9000779

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.05

116-6723

17

BRACKET-HYDRO, ADJUST

Part# 116-6723

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.72

116-9307

18

IDLER ARM ASM

Part# 116-9307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $102.72

116-6756

20

BEARING-PILLOW BLOCK

Part# 116-6756

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

116-2839

21

NUT-LOCK

Part# 116-2839

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.31

242-50

22

NUT-LUG

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

76-4660

23

SPRING-DOOR

Part# 76-4660

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.76

322-12

24

SCREW-HH

Part# 322-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.90

116-7596

25

PIN-BRAKE, PARK

Part# 116-7596

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.77

104-8300

26

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

126-9108

27

SPROCKET-IDLER, 15T

Part# 126-9108

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $72.94

104-8417

28

WASHER

Part# 104-8417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.52

104-8301

29

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

3231-25

30

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

109-2250

31

TANK-HYD

Part# 109-2250

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.85

109-3320

31:1

CAP-RESERVOIR, HYD

Part# 109-3320

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.27

116-7109

32

SCREW-HH

Part# 116-7109

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.07

116-6897

33

LINK-CONNECTING

Part# 116-6897

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.81

135-1050

34

TRANSAXLE-ZT3100, RT (W/P

Part# 135-1050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1113.55

135-1051

35

TRANSAXLE-ZT3100, LT (W/P

Part# 135-1051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1113.55

116-9715

36

PULLEY-IDLER

Part# 116-9715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.85

116-6932

37

TIRE ASM (16 X 6.50-8)

Part# 116-6932

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $143.13

116-6977

37:1

RIM (8 X 5.375)

Part# 116-6977

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.11

116-6978

37:2

TIRE

Part# 116-6978

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.02

232-27

37:3

Stem-Valve

Part# 232-27

OEM Warranty Repair Part for Exmark

Not available

3230-9

38

SCREW-CARR

Part# 3230-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.75

116-6777

39

BEARING-FLANGE, 2 BOLT

Part# 116-6777

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

3231-2

40

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

116-9927

41

SCREW-HSBH

Part# 116-9927

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.97

116-9545

42

AXLE AND BEARING ASM

Part# 116-9545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $482.50

116-3872

43

HUB-OFFSET

Part# 116-3872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.31

3296-45

44

NUT-HEX

Part# 3296-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.93

3233-14

45

SCREW-CARR

Part# 3233-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.54

104-7201

46

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

3232-3

47

BOLT-CARR

Part# 3232-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

3229-1

48

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

324-6

49

1-800811

Part# 324-6 (Superseded to 1-800811)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.69

3256-25

50

WASHER-FLAT

Part# 3256-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.17

3217-7

51

NUT-HEX

Part# 3217-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.28

99-8664

52

SCREW-HH

Part# 99-8664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

116-6775

53

HOSE-HYDRAULIC

Part# 116-6775

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.42

116-6776

54

HOSE-HYDRAULIC

Part# 116-6776

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.44

109-3322

55

CLAMP-HOSE

Part# 109-3322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

323-10

56

SCREW-HH

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

3296-48

57

NUT-LOCK, NI

Part# 3296-48

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

32151-29

58

RING-RETAINING

Part# 32151-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.73

3296-59

59

121-4600

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

126-2054

65

DECAL-HUB, WHEEL

Part# 126-2054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.87

109-6449

66

FITTING-ELBOW, 90

Part# 109-6449

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.92

237-42

66:1

O-RING

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27

135-0685

67

ROD-BYPASS, RH

Part# 135-0685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.31

135-0683

68

ROD-BYPASS, LH

Part# 135-0683

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.31

1-806003

69

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

119-8952

70

WASHER

Part# 119-8952

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

109-9828

99

BOTTLE-OIL, 32OZ HYDRAULIC

Part# 109-9828

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.47
