ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019)

30" Stand-On Aerator, Kawasaki FS541V

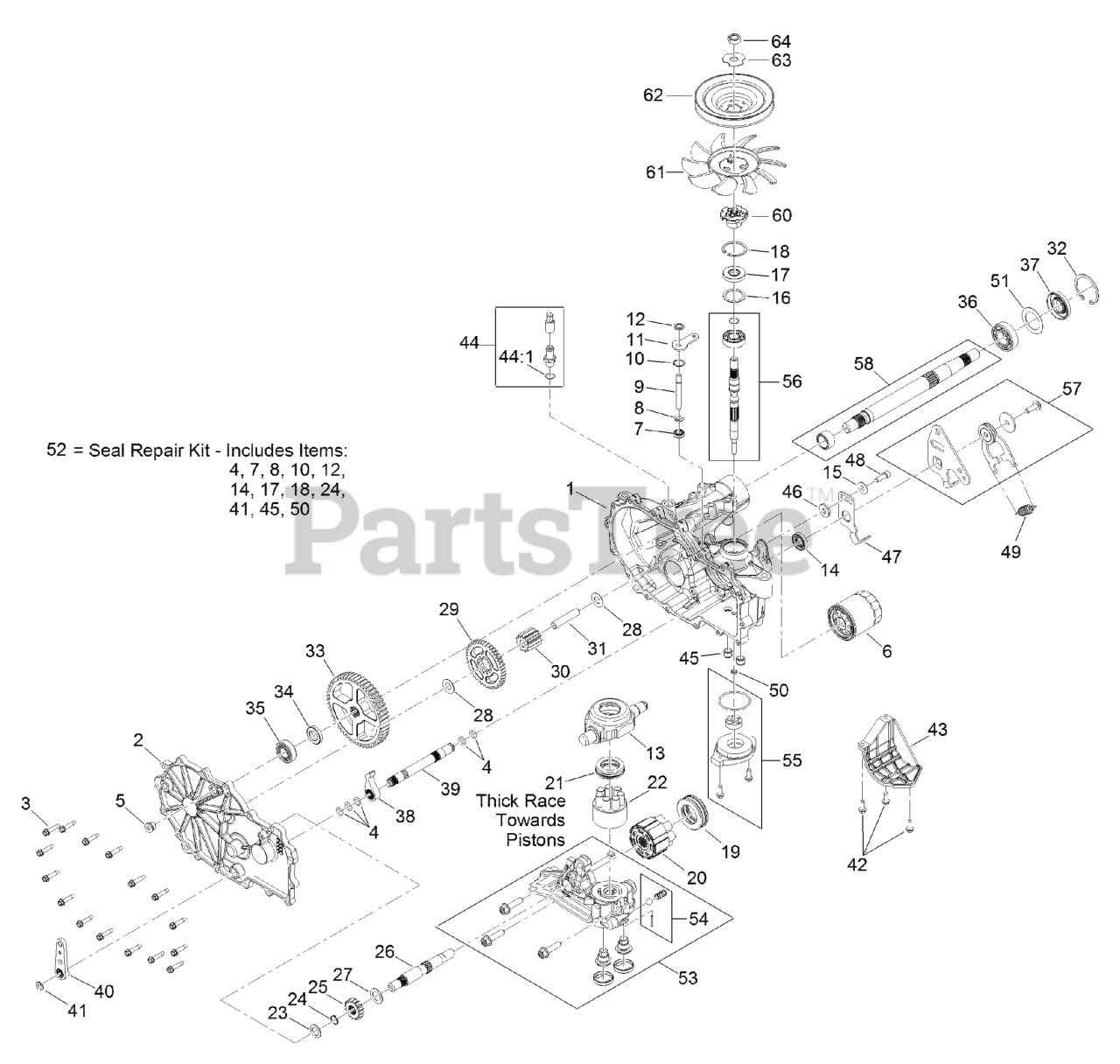

ARX541CKA30000 - Exmark 30" Stand-On Aerator, Kawasaki FS541V (SN: 404314159 - 406294344) (2019) > Parts Diagrams (18) > LH Transaxle Assembly No. 135-1051

  • Title
114-1676

1

MAIN HOUSING KIT

Part# 114-1676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $436.81

117-5358

2

RH HOUSING SIDE KIT

Part# 117-5358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $138.25

117-5359

3

SCREW-HHF

Part# 117-5359

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.30

114-1678

4

O-RING

Part# 114-1678

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.74

135-1140

5

353-508

Part# 135-1140 (Superseded to 353-508)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

109-3321

6

ELEMENT-OIL FILTER, HYD

Part# 109-3321

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.82

106-8676

7

SEAL-LIP

Part# 106-8676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.74

106-8677

8

RING-RETAINING, EXTERNAL

Part# 106-8677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.61

114-1685

9

ROD-BYPASS

Part# 114-1685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.10

106-8679

10

RING-RETAINING, INTERNAL

Part# 106-8679

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.75

106-8680

11

ARM-BYPASS

Part# 106-8680

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.57

106-8681

12

RING-RETAINING, EXTERNAL

Part# 106-8681

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.45

104-5304

13

SWASHPLATE-TRUNNION

Part# 104-5304

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $141.93

104-5313

14

SEAL-LIP

Part# 104-5313

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.22

114-8491

15

WASHER

Part# 114-8491

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.65

104-5308

16

SPACER

Part# 104-5308

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.79

104-5310

17

SEAL-LIP

Part# 104-5310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.08

104-5309

18

RING-RETAINING

Part# 104-5309

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.77

109-2865

19

BEARING-THRUST

Part# 109-2865

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.36

114-1689

20

MOTOR CYLINDER BLOCK KIT

Part# 114-1689

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $155.44

94-6922

21

BEARING-THRUST

Part# 94-6922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $45.26

110-8561

22

PUMP BLOCK ASM

Part# 110-8561

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $260.27

104-5339

23

WASHER-FLAT

Part# 104-5339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.89

104-5340

24

RING-RETAINING

Part# 104-5340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.79

126-0788

25

GEAR-16T

Part# 126-0788

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.71

114-1691

26

SHAFT-MOTOR

Part# 114-1691

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $124.79

104-5360

27

WASHER

Part# 104-5360

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.79

94-1933

28

WASHER

Part# 94-1933

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.32

125-0000

29

GEAR-43T

Part# 125-0000

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.26

120-7974

30

GEAR-11T

Part# 120-7974

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.83

104-5329

31

PIN-JACKSHAFT

Part# 104-5329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.97

104-2169

32

RING-RETAINING

Part# 104-2169

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.96

114-1694

33

GEAR-54T

Part# 114-1694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $100.08

120-7975

34

SPACER

Part# 120-7975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.35

135-1361

35

BEARING-BALL

Part# 135-1361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.32

120-7976

36

BEARING-BALL

Part# 120-7976

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.11

104-2144

37

SEAL

Part# 104-2144

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.35

114-1697

38

PAWL-BRAKE

Part# 114-1697

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

114-1698

39

SHAFT-BRAKE, INBOARD

Part# 114-1698

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $102.55

125-0021

40

HANDLE-BRAKE

Part# 125-0021

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.11

131-0906

41

RING-RETAINING, EXT

Part# 131-0906

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.07

104-2120

42

SCREW

Part# 104-2120

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.89

120-7981

43

GUARD-FILTER, RH

Part# 120-7981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.76

109-3278

44

ADAPTER-STRAIGHT

Part# 109-3278

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.71

237-42

44:1

O-RING

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

126-3251

45

114-8455

Part# 126-3251 (Superseded to 114-8455)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.68

114-8458

46

SPACER

Part# 114-8458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.44

114-8459

47

ARM-NEUTRAL, RIGHT

Part# 114-8459

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.19

106-8682

48

SCREW-SH

Part# 106-8682

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.61

115-8307

49

SPRING-EXTENSION

Part# 115-8307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.81

131-0908

50

Seal-Gerotor

Part# 131-0908

OEM Warranty Repair Part for Exmark

Currently unavailable

121-5745

51

SPACER

Part# 121-5745

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.32

109-3537

52

SEAL KIT

Part# 109-3537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.27

120-7982

53

RH CENTER SECTION CHARGE

Part# 120-7982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $365.76

114-8464

54

CHARGE RELIEF KIT

Part# 114-8464

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.53

114-8465

55

CHARGE KIT

Part# 114-8465

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $83.74

117-5361

56

INPUT SHAFT KIT

Part# 117-5361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $159.39

126-2291

57

CONTROL ARM KIT

Part# 126-2291

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $149.47

114-8470

58

AXLE SHAFT KIT

Part# 114-8470

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $193.98

116-9705

60

HUB-PULLEY

Part# 116-9705

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.79

116-9706

61

FAN

Part# 116-9706

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.98

116-9707

62

PULLEY

Part# 116-9707

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.51

116-9708

63

WASHER-SLOTTED

Part# 116-9708

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.87

116-9714

64

NUT-HJ

Part# 116-9714

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.12

135-3604

99

BRAKE SHAFT SEAL KIT

Part# 135-3604

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $118.61
