AS30-23CV - Scag AerStorm 30" Aerator, 23hp Kohler (SN: V9200001 - V9299999) STEERING AND BRAKE CONTROLS Parts Diagram

AerStorm 30" Aerator, 23hp Kohler

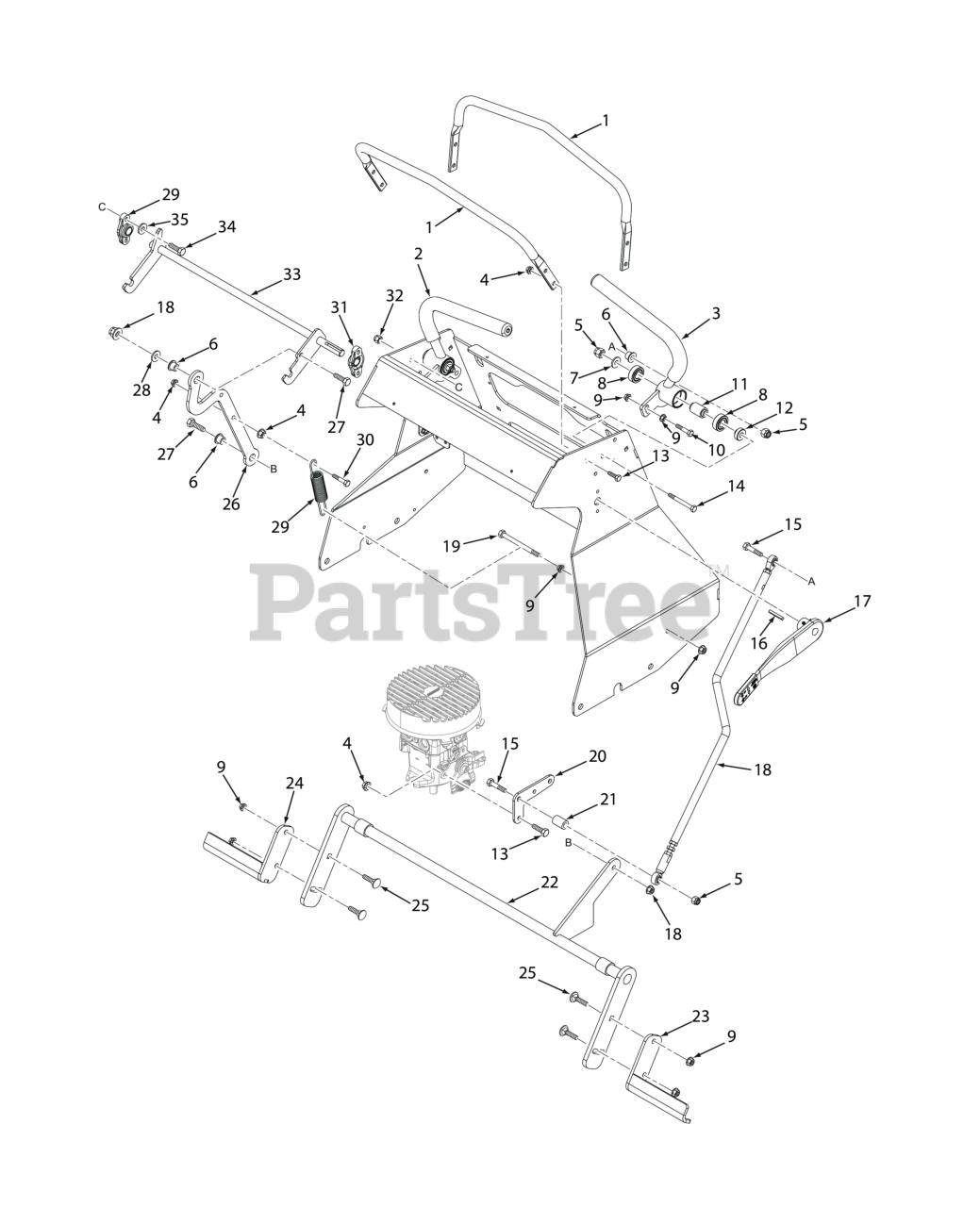

STEERING AND BRAKE CONTROLS Parts Diagram

  • Title

1

Scag 427189

Reference Bar

$54.99

$

Usually ships in 2-12 days

0

2

Scag 463498

RH Handle Bar Assy.

$124.99

$

Usually ships in 2-12 days

0

3

Scag 463497

LH Handle Bar Assy.

$124.99

$

Usually ships in 2-12 days

0

4

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 48100-30

BUSHING, BRONZE - .376 ID X .627 OD

$1.99

$

Usually ships in 2-12 days

0

7

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

8

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

9

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

11

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

12

Scag 431024

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

13

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

0

15

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

16

Scag 04063-05

KEY, 3/16 X 3/16 X 1-1/2

$2.49

$

In Stock, Qty 6

0

17

Scag 463265

Lever Assembly, Brake, SVRII

$51.99

$

Usually ships in 2-12 days

0

18

Scag 487385

Link, Steering Control

$96.99

$

Usually ships in 2-12 days

0

19

Scag 04001-47

Bolt, 3/8-16 x 5.00" Hex Head

$3.49

$

Usually ships in 2-12 days

0

20

Scag 429148

Pump Linkage Brkt

$5.99

$

Usually ships in 2-12 days

0

21

Scag 43572

Yoke, Front Caster Wheel

$1.99

$

In Stock, only 2 left!

0

22

Scag 453376

Bellcrank Weldment, Brake

$158.99

$

Usually ships in 2-12 days

0

23

Scag 453377

Brake Paddle Weldment, LH

$23.99

$

Usually ships in 2-12 days

0

24

Scag 453378

Brake Paddle Weldment, RH

$23.99

$

Usually ships in 2-12 days

0

25

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

26

Scag 429213

Link, Brake Engage

$18.99

$

Usually ships in 2-12 days

0

27

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 484038

Spring, Deck Lift

$26.99

$

Usually ships in 2-12 days

0

30

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

31

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

32

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

0

33

Scag 453266

Lock Weldment, Neutral

$

$

Not available

34

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

35

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 8

0
