AV520-670-53 - Tecumseh Engine Engine Parts List #2 Parts Diagram

Engine

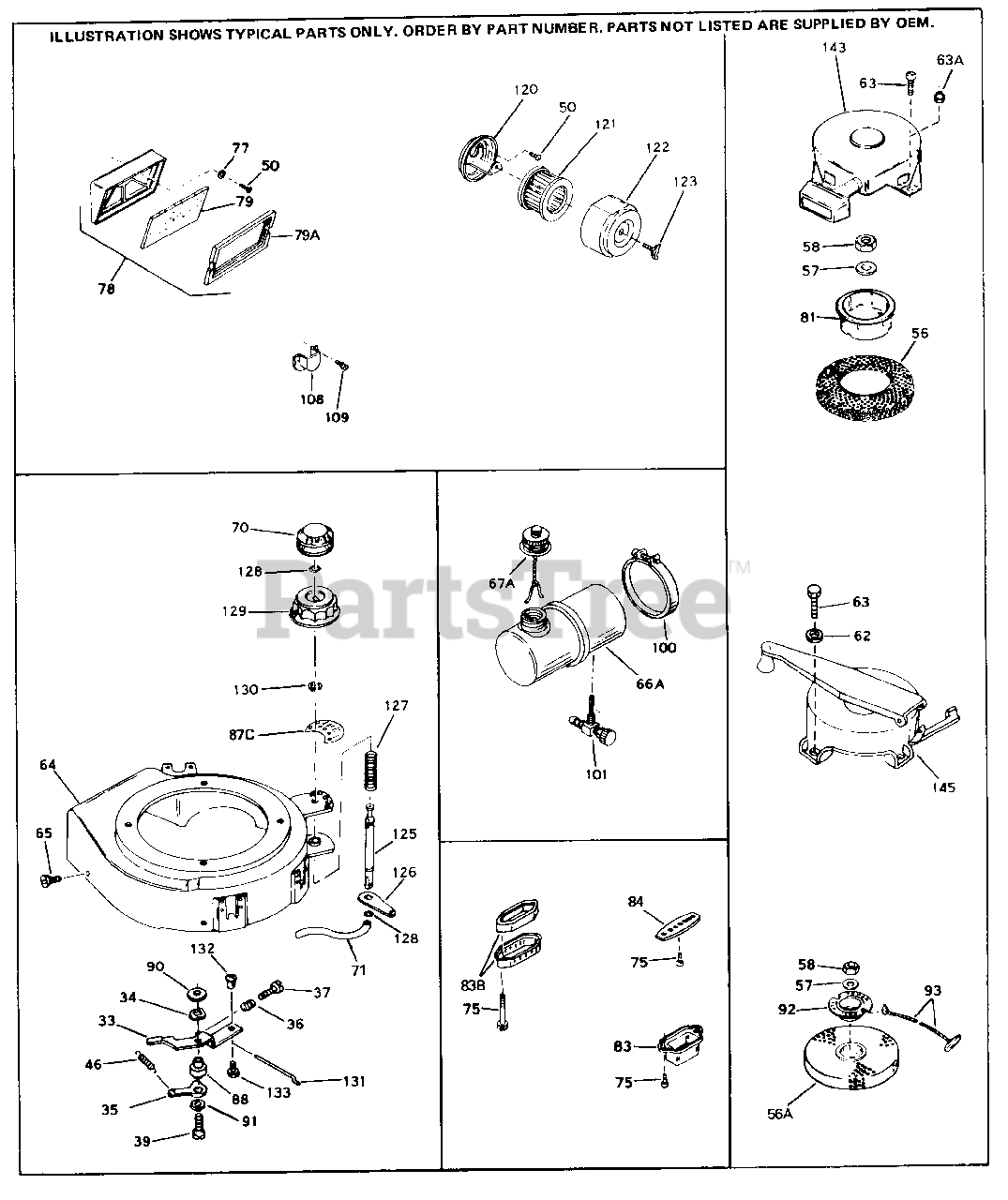

Engine Parts List #2 Parts Diagram

  • Title

33

Tecumseh 570421

Lever, Control

$27.99

$

Usually ships in 3-12 days

0

35

Tecumseh 570415

Lever, Adjusting

$3.99

$

Usually ships in 3-12 days

0

36

Tecumseh 31342

Spring

$5.99

$

In Stock, only 1 left!

0

37

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 3 left!

0

39

Tecumseh 650544

Screw, Torx T-25, 10-24 x 7/8

$1.99

$

Usually ships in 3-12 days

0

46

Tecumseh 570417

Spring, Governor

$1.99

$

In Stock, only 4 left!

0

50

Tecumseh 650431

Screw, 10-32 x 5/8"

$1.99

$

In Stock, Qty 6

0

56

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 650201

Washer, Lock

$

$

Not available

58

Tecumseh 650390

Nut, Flywheel

$1.99

$

In Stock, only 3 left!

0

63

Pop Rivet (3/16" dia.) (Buy locally) As req.

$

$

Not available

63

Tecumseh 650499

Screw, 1/4-28 x 3/8" Use as required

$

$

Not available

64

Tecumseh 350373

Blower Housing On some late productio n models, the top mounted rewind star ter is riveted to the blower housing. If either the starter or blower hou sing needs replacement, the other may need the holes used for pop riveting enlarged to accomodate us

$50.99

$

In Stock, only 2 left!

0

65

Tecumseh 650356

Screw, 1/4-20 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 650412

Screw, 1/4-20 x 1-7/8"

$

$

Currently unavailable

77

Tecumseh 650147

Washer, Flat #10

$1.99

$

In Stock, only 1 left!

0

81

Tecumseh 590416

Cup, Starter

$9.99

$

Usually ships in 3-12 days

0

83

Tecumseh 390276A

Muffler
(Superseded to 390276B)

$11.99

$

In Stock, only 2 left!

0

87C

Tecumseh 550191

Decal, Dial control

$

$

Currently unavailable

88

Tecumseh 570412

Spacer

$3.99

$

In Stock, only 1 left!

0

90

Tecumseh 570413

Washer

$

$

Not available

91

Tecumseh 650583

Washer

$1.99

$

In Stock, only 2 left!

0

120

Tecumseh 450230

Base Assy., Filter

$

$

Currently unavailable

121

Tecumseh 450229

Air Filter

$

$

Currently unavailable

122

Tecumseh 450231

Cover, Air filter

$

$

Currently unavailable

123

Tecumseh 650715

Screw, 10-24 x 1/2"

$

$

Currently unavailable

125

Tecumseh 570460

Shaft, Dial control

$

$

Currently unavailable

126

Tecumseh 570461

Lever, Dial control

$

$

Currently unavailable

127

Tecumseh 570462

Spring, Dial control

$

$

Currently unavailable

128

Tecumseh 570463

Ring, Retainer

$

$

Currently unavailable

129

Tecumseh 570464

Knob, Dial control

$

$

Currently unavailable

130

Tecumseh 590393

Ring, Retainer

$

$

Not available

131

Tecumseh 570465

Link, Dial control

$

$

Currently unavailable

132

Tecumseh 570466

Swivel, Dial control

$

$

Currently unavailable

133

Tecumseh 650671

Screw, 6-32 x 3/8"

$

$

Currently unavailable

143

Tecumseh 590420

Rewind Starter NOTE: On some late pr oduction models, the top mounted rewi nd starter is riveted to the blower h ousing. If the starter or blower hou sing needs replacement, the other may need the holes used for pop riveting enlarged to use standar
(Superseded to 590420A)

$68.99

$

In Stock, only 3 left!

0
