AX90H0 - Cub Cadet 547cc Engine AX90H0 General Assembly Parts Diagram

547cc Engine

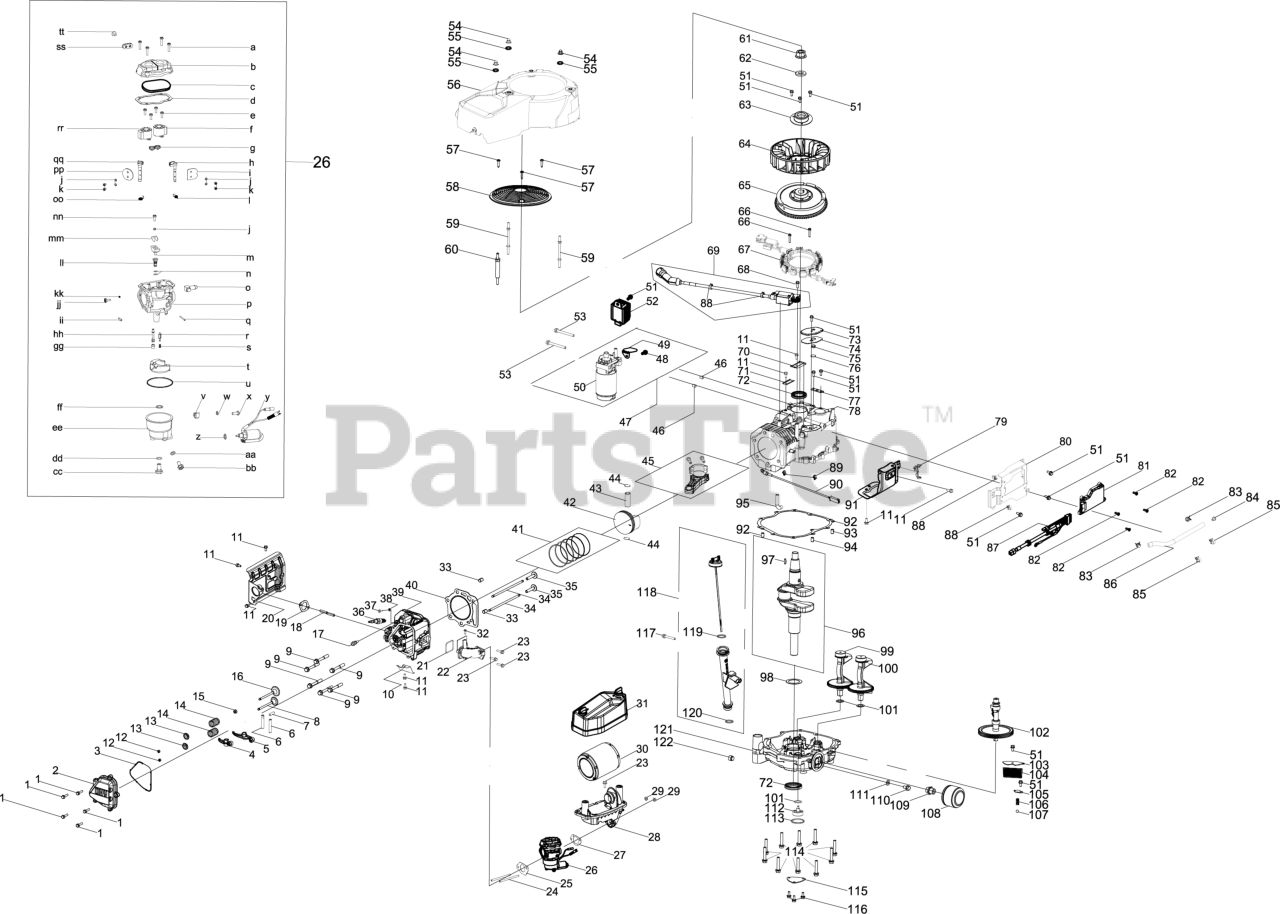

AX90H0 General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 619-06373

VALVE COVER

$

$

Currently unavailable

3

Cub Cadet 951-14913

VALVE COVER GASKET

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 651P05491

ROCKER ARM (EXHAUST)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 651P05490

ROCKER ARM (INTAKE)

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 911-06414

ROCKER ARM SHAFT

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 915-05035

CAMSHAFT PIN

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-14909

EXHAUST VALVE

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 708-07167

HEAT SHEILD

$

$

Currently unavailable

11

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 951-14912A

VALVE CAP

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-14911A

VALVE SPRING SEAT

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-14910

VALVE SPRING

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-11964A

INTAKE VALVE SEAL

$10.99

$

In Stock, Qty 7

0

16

Cub Cadet 951-14908

INTAKE VALVE

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05305

HOOK BOLT

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 910-06299

STUD

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 921-04744

EXHAUST GASKET

$6.99

$

In Stock, Qty 5

0

20

Cub Cadet 751P22449

BAFFLE BRACKET

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-14915

INTAKE PIPE RING

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet 631-08222

INTAKE MANIFOLD

$

$

Currently unavailable

23

Cub Cadet 710-06292

BOLT M6 x 22

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-06319

STUD M6-1.00 x 92

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 951-14947

INTAKE GASKET

$7.99

$

In Stock, Qty 13

0

26

Cub Cadet 651-08733

CARBURETOR

$

$

Currently unavailable

27

Cub Cadet 921-04745

AIR FLTER GASKET

$6.99

$

In Stock, Qty 14

0

28

Cub Cadet 631-08217

AIR FILTER BASE

$

$

Currently unavailable

29

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

30

Cub Cadet 937-05066

AIR FILTER W/PREFILTER

$22.99

$

In Stock, Qty 20+

0

31

Cub Cadet 631-08214

AIR FILTER COVER

$

$

Currently unavailable

32

Cub Cadet 710-05303

BOLT 5.5 x 25

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 708-05067A

PIN, 12x16

$

$

Currently unavailable

34

Cub Cadet 951-14898

SINGLE PUSH ROD

$21.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-15614

TAPPET

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-06290

BOLT M5-.8 x 10

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-05113

FLAT WASHER: 5.3 x 10 x 1

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 651-08707

CYLINDER HEAD

$

$

Currently unavailable

40

Cub Cadet 921-04743

CYLINDER HEAD GASKET

$15.99

$

In Stock, only 3 left!

0

41

Cub Cadet 951-05248

PISTON RING SET

$26.99

$

In Stock, only 1 left!

0

42

Cub Cadet 951-14905

PISTON

$51.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 911-06415

PISTON PIN

$9.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11953A

PISTON PIN SNAP RING

$3.99

$

In Stock, Qty 11

0

45

Cub Cadet 651-08705

CONNECTING ROD

$

$

Currently unavailable

46

Cub Cadet 915-05026

DOWEL PIN

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 725P14645

ELECTRIC STARTER

$247.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-04968

BOLT M6 x 16

$6.49

$

In Stock, only 3 left!

0

49

Cub Cadet 751P18186

STARTER SHIELD BRACKET

$0.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 725-18321

Electric Starter

$

$

Currently unavailable

51

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 725-18483

REGULATOR

$

$

Currently unavailable

53

Cub Cadet 710-06286

BOLT M8-1.25 x 80

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-04276A

ACORN NUT M6-1

$5.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-05109

WASHER

$5.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 631-08216

ENGINE SHROUD

$

$

Currently unavailable

57

Cub Cadet 710-05303

BOLT 5.5 x 25

$3.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-12205

DEBRIS SHIELD

$9.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 910-06310

STUD

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 710-11659

STUD M6 X 113

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 912-05102

NUT M20 x 1.5

$7.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 936-05110

WASHER 20.5 x 5 x 40

$5.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P22232

COOLING FAN PLATE

$8.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 931-10866

COOLING FAN

$45.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-15766

Flywheel

$209.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 710-06448

BOLT M5 x 28

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 751-22615

ALTERNATOR

$

$

Currently unavailable

68

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$3.99

$

In Stock, only 2 left!

0

69

Cub Cadet 751P22452

IGNITION MODULE

$19.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-14921

WIRE PLATE

$4.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-14922

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 937-05067

OIL SEAL 38 x 58 x 8

$14.99

$

In Stock, only 1 left!

0

73

Cub Cadet 907-06254

BREATHER COVER

$7.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 921-04738

BREATHER COVER GASKET

$5.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 732-04718A

BREATHER VALVE SPRING

$3.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-11614A

BREATHER VALVE

$3.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 907-06255

BRACKET

$4.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 651-08708

CRANKCASE

$

$

Currently unavailable

79

Not Used

$

$

Not available

80

Cub Cadet 708-07164

ECM MOUNT BRACKET

$

$

Currently unavailable

81

Cub Cadet 725-18428

ENGINE CONTROL MODULE

$

$

Currently unavailable

82

Cub Cadet 710-06212

SCREW M4x12

$1.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$3.99

$

In Stock, only 3 left!

0

84

Cub Cadet 951-14091A

PLUG

$2.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 723-04071A

FUEL LINE SUPPORT CLAMP

$2.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 751-10349

FUEL HOSE LOW PERMEATION

$

$

Not available

87

Not Used

$

$

Not available

88

Cub Cadet 931-10630A

WIRE SUPPORT CLAMP

$5.49

$

Usually ships in 3-6 days

0

89

Not Used

$

$

Not available

90

Cub Cadet 751-22616

TEMPERATURE SENSOR

$

$

Currently unavailable

91

Cub Cadet 907-06280

SHROUD - RIGHT

$10.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 921-04741

CRANKCASE COVER GASKET

$15.99

$

In Stock, only 1 left!

0

93

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$3.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-14916

VENTING HOSE

$4.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 951-05245

CRANKSHAFT ASSEMBLY

$268.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 917-05340

DRIVE TIMING GEAR

$23.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 917-05339

BALANCE SHAFT GEAR

$26.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 11

0

98

Cub Cadet 936-05111

WASHER 38.3 x 54 x 1

$4.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 917-05292A

BALANCE SHAFT (LH)

$75.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 917-05293A

BALANCE SHAFT (RH)

$75.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 936-05112

WASHER 17.2 x 26 x 1

$4.99

$

In Stock, only 2 left!

0

102

Cub Cadet 919-05216

CAMSHAFT

$74.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 931-10867

FILTER COVER

$4.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 951-14895

PRESSURE RELEASE COVER

$4.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 932-05290

PRESSURE RELEASE SPRING

$4.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

109

Cub Cadet 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-05313

BOLT M8 x 15

$3.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 736-04560

OIL DRAIN PLUG WASHER

$3.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-05247

OIL PUMP ASSEMBLY

$54.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 921-04742

GASKET

$6.99

$

In Stock, only 1 left!

0

114

Cub Cadet 710-06289

BOLT M8 x 45

$4.49

$

Usually ships in 3-6 days

0

115

Cub Cadet 951-14896

OIL SEPARATOR

$4.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 710-06565

Bolt, M6X12

$

$

Currently unavailable

117

Cub Cadet 710-06287

BOLT M6-1 x 45 CL5.8

$4.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 924-05033A

DIPSTICK ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 721P07061

O-RING

$1.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 921-04740

O-RING

$4.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 651-08706

CRANKCASE COVER

$

$

Currently unavailable

122

Cub Cadet 951-11644

ENGINE PLUG 3/8 NPT

$9.49

$

In Stock, Qty 6

0

26

Cub Cadet 651P06495

CARBURETOR

$141.99

$

Usually ships in 3-6 days

0

a

Screw, M4×16

$

$

Not available

b

Cub Cadet 731P18251

CARBURETOR COVER

$3.99

$

Usually ships in 3-6 days

0

c

Stepper Motor Shock Pad

$

$

Not available

d

Protecting Cover Gasket

$

$

Not available

e

Cub Cadet 710-05268

SCREW M4-0.7x10

$2.49

$

Usually ships in 3-6 days

0

f

Stepping Motor

$

$

Not available

g

Electronic Conctol Driving Gear

$

$

Not available

h

Choke Driven Gear

$

$

Not available

i

Choke Plate

$

$

Not available

j

Cub Cadet 736-04638A

LOCK WASHER

$3.49

$

In Stock, only 1 left!

0

k

Screw, M3×5

$

$

Not available

l

Cub Cadet 732P06586

CHOKE SPRING

$1.99

$

Usually ships in 3-6 days

0

m

Idle Jet Rivet

$

$

Not available

n

O-Ring, 4×1.8G

$

$

Not available

o

Cub Cadet 737P05014

FUEL NIPPLE

$2.99

$

Usually ships in 3-6 days

0

p

Carburetor Body

$

$

Not available

q

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

r

Cub Cadet 751P14036A

NEEDLE VALVE

$5.49

$

Usually ships in 3-6 days

0

s

Cub Cadet 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

t

Cub Cadet 731P09131

CARBURETOR FLOAT

$3.49

$

Usually ships in 3-6 days

0

u

Cub Cadet 951-11970

FUEL BOWL GASKET

$6.49

$

In Stock, Qty 9

0

v

Idle Mixture Screw

$

$

Not available

w

Cub Cadet 736-04629

WASHER

$3.99

$

Usually ships in 3-6 days

0

x

Screw, M5×8

$

$

Not available

y

Cub Cadet 951-14972

CARBURETOR SOLENOID VALVE ASM

$42.99

$

In Stock, only 3 left!

0

z

Cub Cadet 736-05077

WASHER 12x8.2x.8

$1.99

$

Usually ships in 3-6 days

0

aa

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$3.99

$

In Stock, Qty 16

0

bb

Cub Cadet 910-06752

DRAIN BOLT

$4.99

$

Usually ships in 3-6 days

0

cc

Cub Cadet 710-06198

FUEL BOWL BOLT

$2.49

$

Usually ships in 3-6 days

0

dd

O-Ring, P18-2001

$

$

Not available

ee

Cub Cadet 619P05093

FLOAT BOWL

$9.99

$

Usually ships in 3-6 days

0

ff

Cub Cadet 721P04699

SEAL

$2.49

$

In Stock, only 1 left!

0

gg

Main Jet

$

$

Not available

hh

Nozzle Tube

$

$

Not available

ii

Cub Cadet 793P00129A

IDLE MIXTURE SCREW

$2.99

$

Usually ships in 3-6 days

0

jj

Idle Adjusting Screw

$

$

Not available

kk

Spring

$

$

Not available

ll

Idle Jet

$

$

Not available

mm

Idle Jet Board

$

$

Not available

nn

Screw, M3×6

$

$

Not available

oo

Cub Cadet 732P06606

THROTTLE SPRING

$1.99

$

Usually ships in 3-6 days

0

pp

Throttle Plate

$

$

Not available

qq

Throttle Driven Gear

$

$

Not available

rr

Stepping Motor

$

$

Not available

ss

Protecting Cover Jacket

$

$

Not available

tt

Screw, M2.5×4

$

$

Not available

Cub Cadet 752MAX90H0

Engine

$

$

Currently unavailable
