AYP 1143 A69 - Electrolux/AYP Lawn Tractor (1996) ENGINE/BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

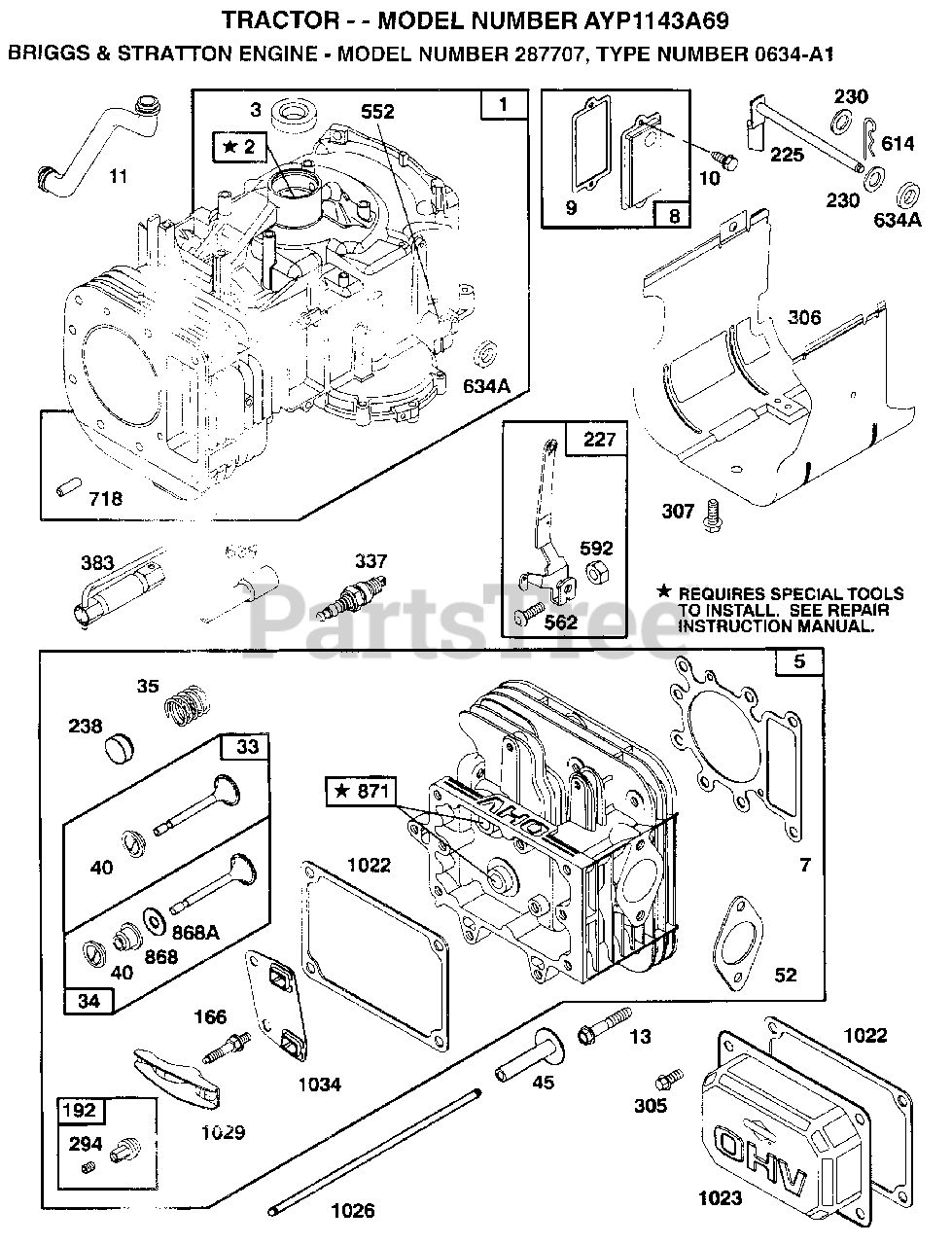

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

284

Briggs & Stratton 94704

SCREW, AIR CLEANER
(Superseded to 690703)

$3.99

$

Usually ships in 2-12 days

0

284A

Briggs & Stratton 94903

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

294

Briggs & Stratton 810068

SCREW, SET
(Superseded to 691986)

$11.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 496281

HOUSING, BLOWER
(Superseded to 695065)

$217.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 225020

SHIELD, CYLINDER
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94623

SCREW, SEMS, CYLINDER SHIELD MTG.
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

309

Briggs & Stratton 497595

MOTOR, STARTING, 12 VOLT

$110.99

$

In Stock, Qty 6

0

310

Electrolux/AYP 497602

BOLT, THRU

$

$

Not available

311

Briggs & Stratton 497608

BRUSH SET

$27.99

$

In Stock, only 4 left!

0

333

Briggs & Stratton 495859

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 17

0

337

Briggs & Stratton 491055

PLUG, SPARK
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

346

Electrolux/AYP 94909

SCREW, HEX HEAD

$

$

Not available

356

Briggs & Stratton 497708

WIRE ASSY
(Superseded to 692037)

$35.99

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 494705

WIRE, STOP
(Superseded to 690807)

$10.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 495993

GASKET SET

$86.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

423

Briggs & Stratton 94903

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 496894

CARTRIDGE, AIR CLEANER
(Superseded to 496894S)

$19.99

$

In Stock, Qty 11

0

455

Briggs & Stratton 222561

CUP, SCREEN MOUNTING
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 493903

KNOB, AIR CLEANER
(Superseded to 691668)

$5.49

$

In Stock, only 3 left!

0

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 806000

STRAP, STARTER
(Superseded to 691532)

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

DRIVE, STARTER
(Superseded to 696541)

$90.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 495230

CAP AND DIPSTICK, OIL FILLER
(Superseded to 692014)

$25.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 68838

SEAL, FILLER TUBE
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

TUBE, OIL FILLER
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 272403

ELEMENT, AIR CLEANER
(Superseded to 272403S)

$3.99

$

In Stock, Qty 19

0

537

Briggs & Stratton 281106

O-RING, AIR CLEANER
(Superseded to 691917)

$4.49

$

In Stock, Qty 13

0

544

Briggs & Stratton 497603

ARMATURE, STARTER
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231597

BUSHING, GOVERNOR CRANK, 1/4" I.D.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 94907

BOLT, GOVENOR LEVEL
(Superseded to 691119)

$4.49

$

In Stock, Qty 18

0

592

Briggs & Stratton 231978

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

611

Briggs & Stratton 493496

ELBOW, FUEL PIPE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 263080

RETAINER
(Superseded to 691265)

$5.49

$

In Stock, Qty 6

0

618

Briggs & Stratton 262803

SPRING, CHOKE RETURN

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

SEAL, CHOKE SHAFT
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 491323

SEAL, GOVERNOR
(Superseded to 692407)

$7.99

$

In Stock, Qty 11

0

634B

Briggs & Stratton 281167

WASHER, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 280872

ELBOW, SPARK PLUG
(Superseded to 691909)

$4.99

$

In Stock, Qty 10

0

646

Briggs & Stratton 224546

BRACE, AIR CLEANER

$

$

Not available

653

Briggs & Stratton 93585

SCREW, HEX HEAD
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

657

Briggs & Stratton 94906

SCREW
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94929

SCREW, SELF-TAPPING
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

668

Briggs & Stratton 280848

SPACER
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 230192

PIN, DOWEL
(Superseded to 690959)

$6.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 490324

COVER, STARTER

$26.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 94951

SCREW, HEX HEAD
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

729

Briggs & Stratton 225170

RETAINER, WIRE
(Superseded to 691224)

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 281390

CLIP, WIRE
(Superseded to 691335)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262932

GEAR, TIMING
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

LINK, COUNTERWEIGHT
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 399891

COUNTERWEIGHT ASSY
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Electrolux/AYP 289909

PIN, COUNTERWEIGHT

$

$

Not available

761

Briggs & Stratton 94593

SCREW, COUNTERWEIGHT
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

801

Briggs & Stratton 394856

CAP, DRIVE
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497605

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691293)

$29.99

$

In Stock, Qty 6

0

803

Briggs & Stratton 497604

HOUSING, STARTER
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 496415

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 597130)

$47.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 224110

TERMINAL, IGNITION CABLE
(Superseded to 692424)

$5.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 494435

SEAL ASSEMBLY, VALVE
(Superseded to 690968)

$10.99

$

In Stock, only 1 left!

0

868A

Briggs & Stratton 272610

GASKET, VALVE
(Superseded to 690968)

$10.99

$

In Stock, only 1 left!

0

871

Electrolux/AYP 262835

BUSHING, GUIDE (INTAKE & EXHAUST)

$

$

Not available

872

Briggs & Stratton 281104

COVER, AIR CLEANER
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 495862

BODY, AIR CLEANER
(Superseded to 696129)

$

$

Not available

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 497157

SOLENOID
(Superseded to 692734)

$102.99

$

In Stock, Qty 8

0

965

Briggs & Stratton 94010

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, Qty 7

0

975

Briggs & Stratton 495933

BOWL ASSEMBLY, CARBURETOR

$10.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 494385

CARBURETOR GASKET KIT
(Superseded to 697241)

$43.99

$

In Stock, Qty 5

0

987

Briggs & Stratton 281166

SEAL, THROTTLE SHAFT
(Superseded to 691326)

$5.49

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 281355

FAN, FLYWHEEL
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

RETAINER, FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496758

LABEL KIT

$29.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475

GASKET, COVER
(Superseded to 272475S)

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 224552

COVER, ROCKER ARM
(Superseded to 691192)

$

$

Not available

1026

Briggs & Stratton 494432

ROD, PUSH, INTAKE
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0

Briggs & Stratton 495136

ROD, PUSH, EXHAUST
(Superseded to 692011)

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 224554

ARM, ROCKER
(Superseded to 691751)

$9.49

$

In Stock, only 4 left!

0

1033

Briggs & Stratton 495992

VALVE OVERHAUL KIT

$64.99

$

In Stock, only 1 left!

0

1034

Briggs & Stratton 495248

GUIDE ASSEMBLY, PUSH ROD
(Superseded to 690822)

$9.49

$

In Stock, Qty 11

0

1044

Briggs & Stratton 94673

SCREW, SHOULDER, HEX HEAD
(Superseded to 698139)

$5.99

$

In Stock, only 4 left!

0

1058

Electrolux/AYP 272623

MANUAL, OWNER'S

$

$

Not available

1090

Briggs & Stratton 497607

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281364

CAP, LIMITER
(Superseded to 691333)

$9.49

$

Usually ships in 2-12 days

0
