AYP 7167 A29 - Electrolux/AYP Lawn Tractor (1992) ENGINE Parts Diagram

Lawn Tractor

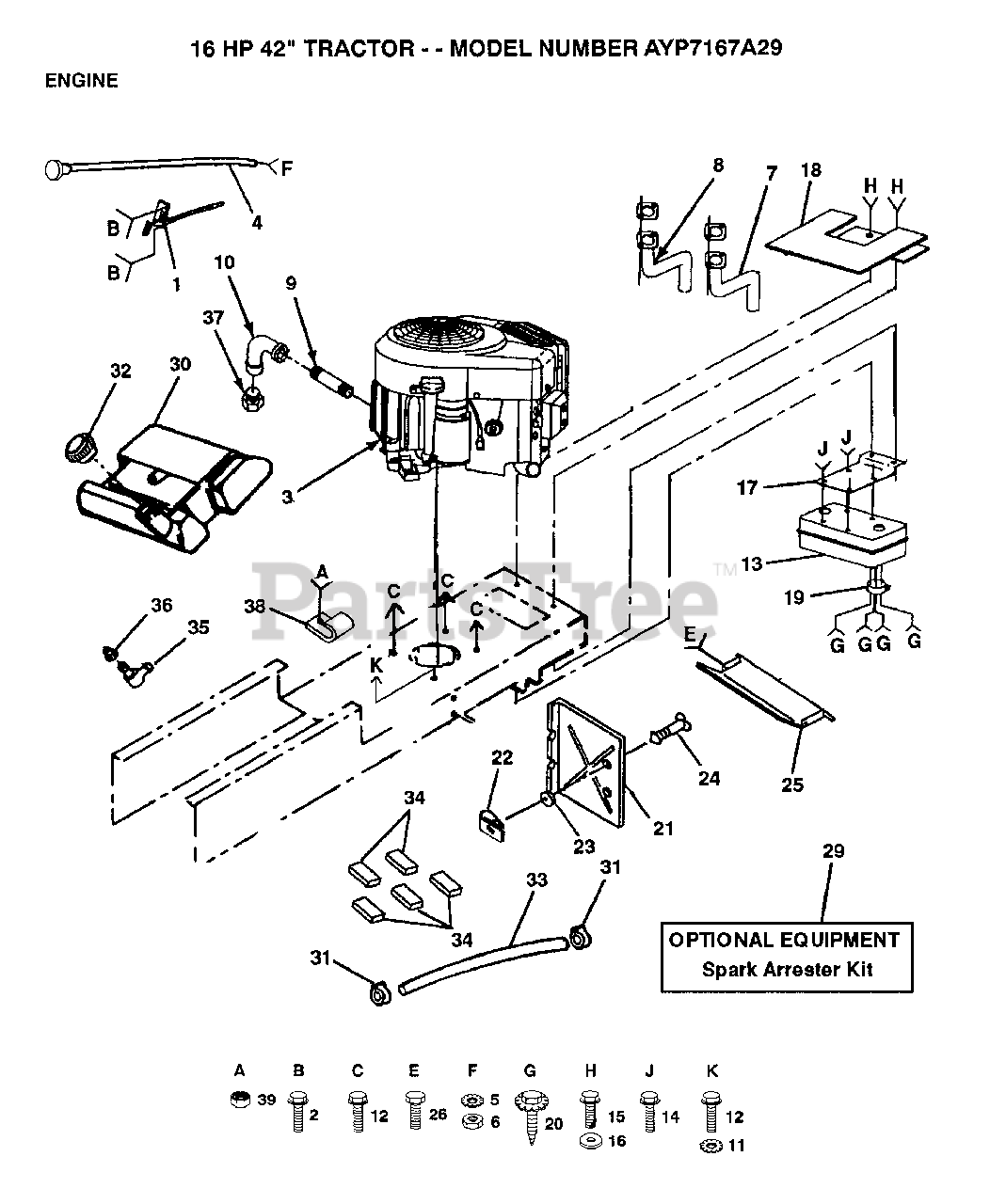

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 132748

SUB= 532132748

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 131958

ENGINE

$

$

Not available

4

Electrolux/AYP 132781

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

5

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$

$

Not available

7

Electrolux/AYP 122435X

TUBE ASSY EXH RH
(Superseded to 532122435)

$

$

Not available

8

Electrolux/AYP 122434X

TUBE ASSY EXH LH
(Superseded to 532122434)

$

$

Not available

9

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$5.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 122440X

SUB= 149723

$

$

Not available

14

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$

$

Not available

15

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$

$

Not available

17

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

18

Electrolux/AYP 128199X

SUB= 145552

$

$

Not available

19

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

20

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

21

Electrolux/AYP 133746

HEAT SHIELD
(Superseded to 133747)

$

$

Not available

22

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$

$

Not available

24

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$

$

Not available

25

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

26

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

30

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$3.99

$

In Stock, Qty 11

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

33

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$

$

Not available

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

37

REFER TO IMAGE

$

$

Not available

38

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

39

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$

$

Not available
