AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) AIR INTAKE Parts Diagram

Lawn Tractor

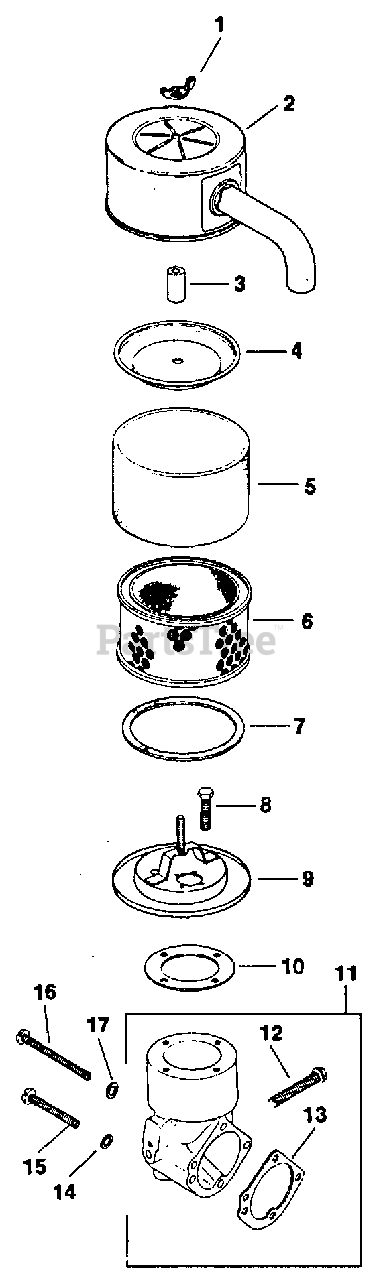

AIR INTAKE Parts Diagram

  • Title

1

Kohler X-276-7

WING NUT
(Superseded to X-276-7-S)

$

$

Not available

2

Kohler 52 096 36

COVER, AIR CLEANER
(Superseded to 52 096 36-S)

$

$

Not available

3

Kohler 231032

SEAL ELEMENT
(Superseded to 231032-S)

$8.49

$

In Stock, Qty 5

0

4

Kohler 52 082 04

COVER, AIR CLEANER ELEMENT
(Superseded to 52 082 04-S)

$28.99

$

In Stock, only 1 left!

0

5

Kohler 45 083 01

PRE-CLEANER
(Superseded to 45 083 01-S)

$6.99

$

In Stock, only 2 left!

0

6

Kohler 45 083 02

ELEMENT, AIR CLEANER
(Superseded to 45 083 02-S)

$23.99

$

In Stock, only 1 left!

0

7

Kohler 237423

SEAL
(Superseded to 237423-S)

$

$

Not available

8

Kohler X-67-98

SCREW
(Superseded to X-67-98-S)

$3.49

$

In Stock, Qty 9

0

9

Kohler 52 201 06

BASE, AIR CLEANER
(Superseded to 52 201 06-S)

$

$

Not available

10

Kohler 277093

GASKET
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 8

0

11

Kohler 52 754 01

KIT, ELBOW
(Superseded to 52 754 01-S)

$135.99

$

Usually ships in 2-5 days

0

12

Kohler 52 086 11

SCREW
(Superseded to 52 086 11-S)

$

$

Not available

13

Kohler 25 041 06

GASKET, ELBOW
(Superseded to 25 041 06-S)

$3.49

$

In Stock, only 4 left!

0

14

Kohler X-22-9

WASHER
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

15

Kohler X-50-57

SCREW
(Superseded to X-50-57-S)

$5.49

$

In Stock, only 1 left!

0

16

Kohler X-50-37

SCREW
(Superseded to X-50-37-S)

$3.99

$

In Stock, Qty 5

0

17

Kohler X-25-79

WASHER
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

Kohler 25 113 07

DECAL, AIR CLEANER
(Superseded to 25 113 07-S)

$

$

Not available
