AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) PISTON AND ROD Parts Diagram

Lawn Tractor

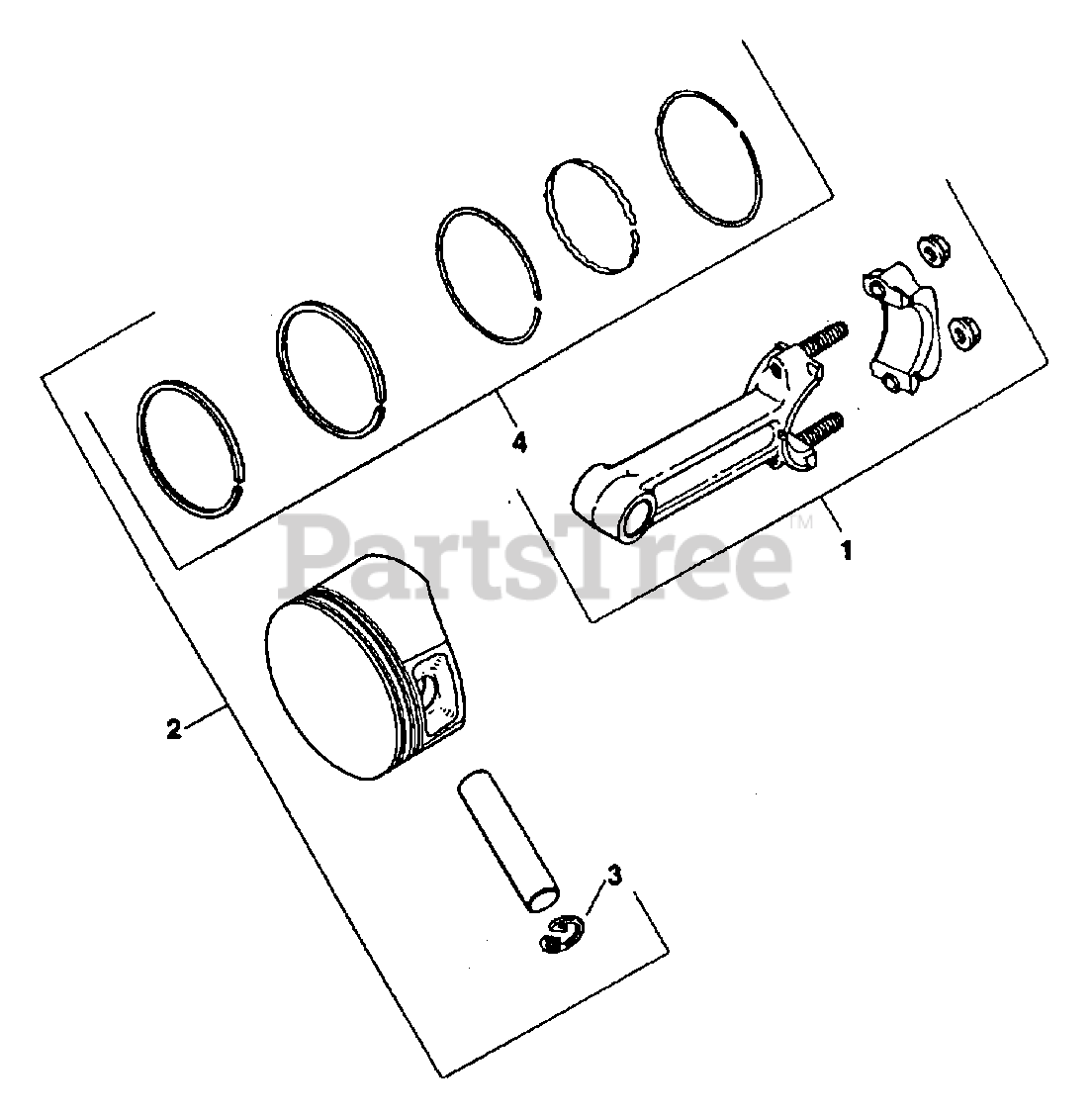

PISTON AND ROD Parts Diagram

  • Title

1

Kohler 52 067 71

CONNECTING ROD
(Superseded to 52 067 71-S)

$

$

Not available

Kohler 52 067 72

CONNECTING ROD
(Superseded to 52 067 72-S)

$

$

Not available

2

Kohler 52 874 16

PISTON W/RING SET
(Superseded to 52 874 16-S)

$323.99

$

Usually ships in 2-5 days

0

Kohler 52 874 17

PISTON W/RING SET
(Superseded to 52 874 17-S)

$

$

Not available

Kohler 52 874 18

PISTON W/RING SET
(Superseded to 52 874 18-S)

$248.99

$

Usually ships in 2-5 days

0

Kohler 52 874 19

PISTON W/RING SET
(Superseded to 52 874 19-S)

$

$

Not available

Kohler 52 874 20

PISTON W/RING SET
(Superseded to 52 874 20-S)

$

$

Not available

3

Kohler 52 141 01

RETAINER, PISTON PIN
(Superseded to 52 141 01-S)

$6.99

$

Usually ships in 2-5 days

0

4

Kohler 52 108 09

RING SET
(Superseded to 52 108 09-S)

$146.99

$

Usually ships in 2-5 days

0

Kohler 52 108 10

RING SET
(Superseded to 52 108 10-S)

$

$

Not available

Kohler 52 108 11

RING SET
(Superseded to 52 108 11-S)

$147.99

$

Usually ships in 2-5 days

0

Kohler 52 108 12

RING SET
(Superseded to 52 108 12-S)

$

$

Not available
