AYP 8208 A39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE CRANKCASE Parts Diagram

Lawn Tractor

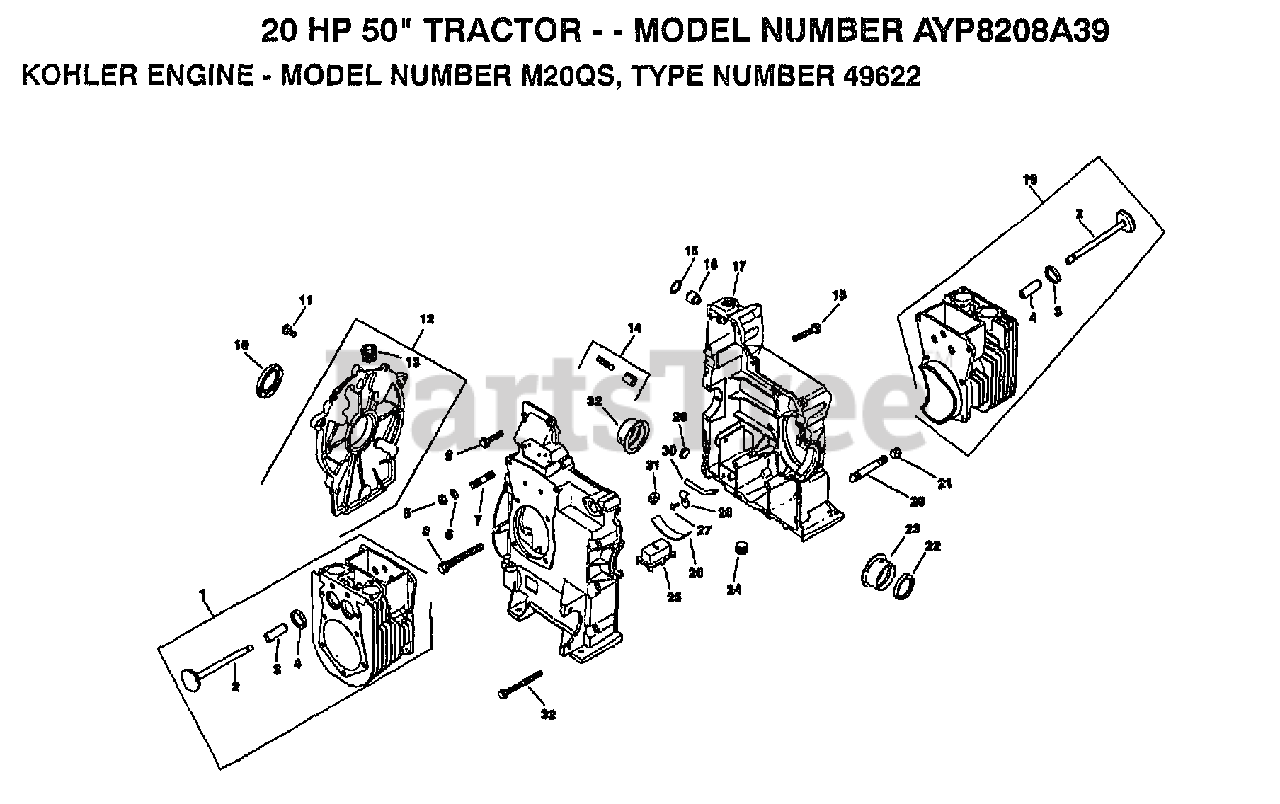

KOHLER ENGINE CRANKCASE Parts Diagram

  • Title

1

Electrolux/AYP 8275519

KIT, #2 CYLINDER BARREL

$

$

Not available

2

Electrolux/AYP 5201606

VALVE, EXHAUST

$

$

Not available

3

Electrolux/AYP 5231606

GUIDE, VALVE

$

$

Not available

4

Electrolux/AYP 5203101

INSERT, VALVE SEAT

$

$

Not available

5

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

6

Electrolux/AYP 5246812

WASHER

$

$

Not available

7

Electrolux/AYP 5207212

STEP STUD

$

$

Not available

8

Electrolux/AYP 2508613

SCREW

$

$

Not available

9

Electrolux/AYP 2508610

SCREW

$

$

Not available

10

Kohler X-583-5

SEAL
(Superseded to X-583-5-S)

$21.99

$

In Stock, only 4 left!

0

11

Kohler X-802-9

SCREW
(Superseded to X-802-9-S)

$

$

Not available

12

Electrolux/AYP 5275557

KIT, CLOSURE PLATE

$

$

Not available

13

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 3 left!

0

14

Electrolux/AYP 5275550

KIT, OIL RELIEF

$

$

Not available

15

Kohler X-269-43

RING, RETAINING
(Superseded to X-269-43-S)

$3.49

$

Usually ships in 2-5 days

0

16

Electrolux/AYP 5207805

SHAFT, GOVERNOR

$

$

Not available

17

Electrolux/AYP 5252277

CRANKCASE

$

$

Not available

18

Electrolux/AYP 2508612

SCREW

$

$

Not available

19

Electrolux/AYP 8275518

KIT, #1 CYLINDER BARREL

$

$

Not available

20

Electrolux/AYP 1213607

NIPPLE, PIPE

$

$

Not available

21

Electrolux/AYP 1217303

CAP, PIPE

$

$

Not available

23

Electrolux/AYP 5203010

BEARING, SLEEVE

$

$

Not available

23

Electrolux/AYP 5203011

BEARING, SLEEVE

$

$

Not available

23

Electrolux/AYP 5203012

BEARING, SLEEVE

$

$

Not available

24

Kohler X-75-32

PLUG
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 5209503

HOUSING, OIL PICKUP

$

$

Not available

26

Electrolux/AYP 5223702

CLAMP, SPRING

$

$

Not available

27

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$

$

Not available

28

Electrolux/AYP 5223705

CLAMP, TUBE

$

$

Not available

29

Kohler X-702-15

PLUG, CUP
(Superseded to X-702-15-S)

$2.99

$

Usually ships in 2-5 days

0

30

Electrolux/AYP 5212310

TUBE, DIPSTICK

$

$

Not available

31

Electrolux/AYP 5213908

PLUG

$

$

Not available

32

Electrolux/AYP 5203210

SEAL, OIL, FRONT

$

$

Not available

33

Electrolux/AYP 2508611

SCREW

$

$

Not available
