AYP 8208 A39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE OIL PUMP Parts Diagram

Lawn Tractor

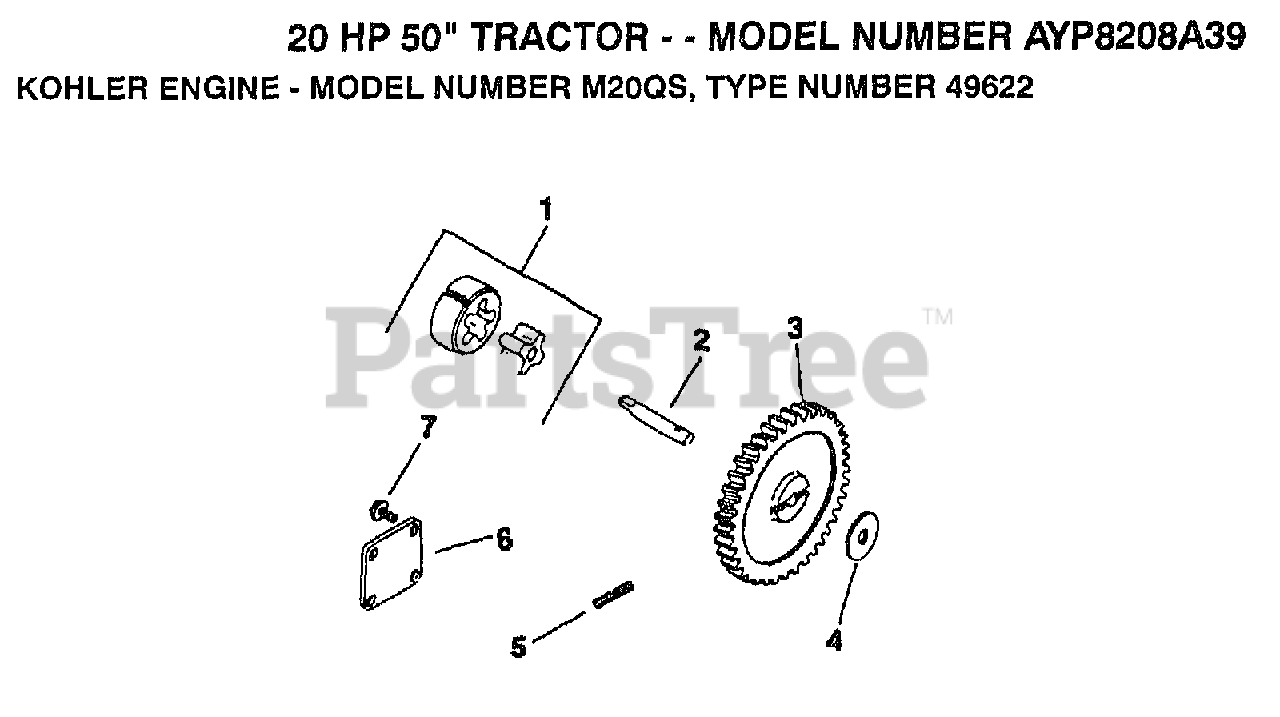

KOHLER ENGINE OIL PUMP Parts Diagram

  • Title

1

Electrolux/AYP 5239309

ROTOR SET

$

$

Not available

2

Electrolux/AYP 5214405

SHAFT, OIL PUMP

$

$

Not available

3

Electrolux/AYP 5204305

GEAR, OIL PUMP

$

$

Not available

4

Electrolux/AYP 5242201

SPACER, SHIM

$

$

Not available

5

Kohler X-280-25

PIN, ROLL
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 5209603

COVER, OIL PUMP

$

$

Not available

7

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$

$

Not available

Electrolux/AYP 5252277

CRANKCASE

$

$

Not available

Electrolux/AYP 5275594

GASKET SET

$

$

Not available
