AYP 8208 B39 - Electrolux/AYP Lawn Tractor (1993) AIR INTAKE/BAFFLES AND SHROUD/BREATHER AND VENT Parts Diagram

Lawn Tractor

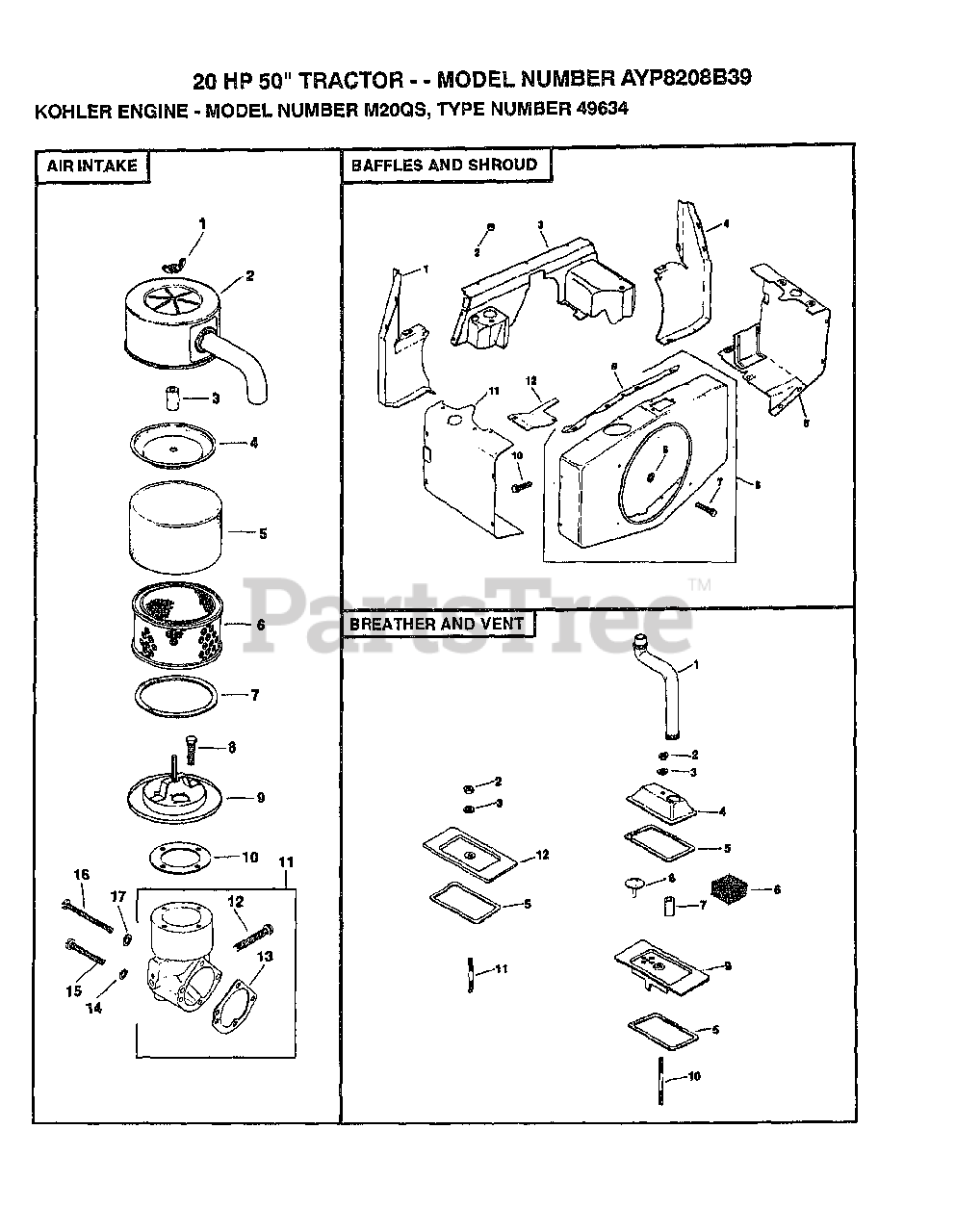

AIR INTAKE/BAFFLES AND SHROUD/BREATHER AND VENT Parts Diagram

  • Title

1

Electrolux/AYP X-276-7

WING NUT

$

$

Not available

2

Electrolux/AYP 52-096-36

COVER, AIR CLEANER

$

$

Not available

3

Electrolux/AYP 231032

SEAL ELEMENT

$

$

Not available

4

Electrolux/AYP 52-082-04

COVER AIR CLEANER ELEMENT

$

$

Not available

5

Electrolux/AYP 45-083-01

PRE-CLEANER

$

$

Not available

6

Electrolux/AYP 45-083-02

ELEMENT

$

$

Not available

7

Electrolux/AYP 237423

SEAL

$

$

Not available

8

Electrolux/AYP X-67-98

SCREW

$

$

Not available

9

Electrolux/AYP 52-201-06

BASE

$

$

Not available

10

Electrolux/AYP 277093

GASKET

$

$

Not available

11

Electrolux/AYP 52-754-01

KIT, ELBOW

$

$

Not available

12

Electrolux/AYP 52-086-11

SCREW

$

$

Not available

13

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

14

Electrolux/AYP X-22-9

WASHER

$

$

Not available

15

Electrolux/AYP X-50-57

SCREW

$

$

Not available

16

Electrolux/AYP X-50-37

SCREW

$

$

Not available

17

Electrolux/AYP X-25-79

WASHER

$

$

Not available

1

Electrolux/AYP 52-281-23

DUCT, AIR, #1 SIDE

$

$

Not available

2

Electrolux/AYP X-82-2

NUT

$

$

Not available

3

Electrolux/AYP 52-282-01

COVER, AIR DUCT

$

$

Not available

4

Electrolux/AYP 52-281-05

DUCT, AIR #2 SIDE

$

$

Not available

5

Electrolux/AYP 52-063-36

BAFFLE, #1 CYLINDER HEAD

$

$

Not available

6

Electrolux/AYP 52-755-71

KIT, BLOWER HOUSING

$

$

Not available

7

Electrolux/AYP 52-086-11

SCREW

$

$

Not available

8

Electrolux/AYP 52-468-16

WASHER

$

$

Not available

9

Electrolux/AYP 52-217-01

SUPPORT

$

$

Not available

10

Electrolux/AYP X-67-83

SCREW

$

$

Not available

11

Electrolux/AYP 52-063-30

BAFFLE, #2 CYLINDER HEAD

$

$

Not available

12

Electrolux/AYP 52-063-01

BAFFLE, #2 CYLINDER TOP

$

$

Not available

1

Electrolux/AYP 52-326-05

HOSE, BREATHER

$

$

Not available

2

Electrolux/AYP X-81-1

NUT

$

$

Not available

3

Electrolux/AYP X-25-12

WASHER

$

$

Not available

4

Electrolux/AYP 52-096-08

COVER

$

$

Not available

5

Electrolux/AYP 52-055-01

GASKET

$

$

Not available

6

Electrolux/AYP 231419

FILTER, BREATHER

$

$

Not available

7

Electrolux/AYP 52-032-04

SEAL BREATHER

$

$

Not available

8

Electrolux/AYP 52-462-01

VALVE, BREATHER

$

$

Not available

9

Electrolux/AYP 52-096-22

COVER, #1 LOWER CYLINDER VALVE

$

$

Not available

10

Electrolux/AYP 275220

STUD

$

$

Not available

11

Electrolux/AYP X-352-39

STUD

$

$

Not available

12

Electrolux/AYP 52-096-18

COVER, #2 CYLINDER VALVE

$

$

Not available

Electrolux/AYP 25-113-15

DECAL, AIR CLEANER

$

$

Not available

Electrolux/AYP 52-113-43

DECAL, AIR CLEANER

$

$

Not available
