AYP 8208 B39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE-CRANKSHAFT/CYLINDER HEAD/DIPSTICK/EXHAUST/ELECTRIC STARTER Parts Diagram

Lawn Tractor

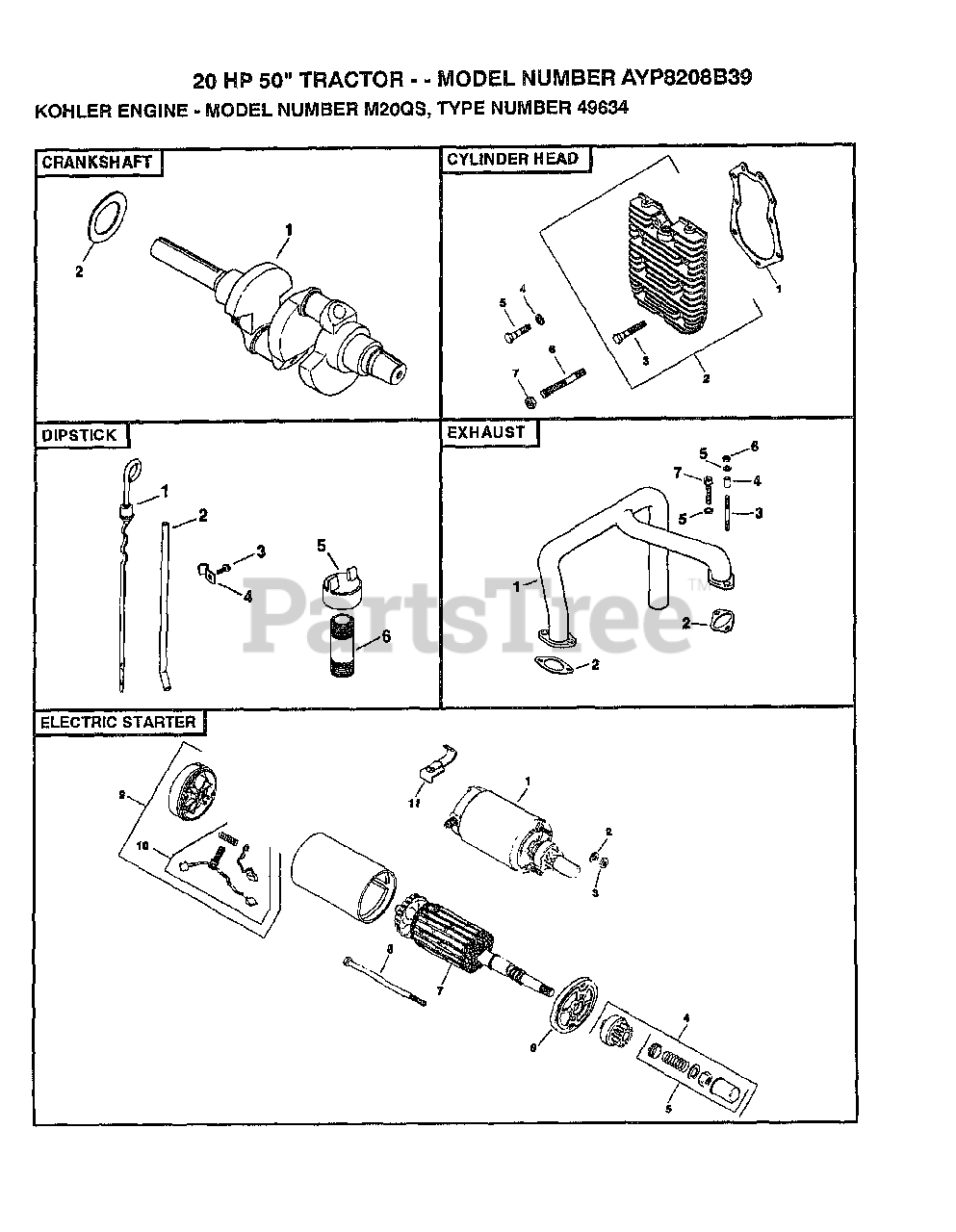

KOHLER ENGINE-CRANKSHAFT/CYLINDER HEAD/DIPSTICK/EXHAUST/ELECTRIC STARTER Parts Diagram

  • Title

1

Electrolux/AYP 52-014-76

CRANKSHAFT

$

$

Not available

2

Electrolux/AYP 52-468-03

WASHER, .119/.122 (A.R.)

$

$

Not available

2

Electrolux/AYP 52-468-04

WASHER, .128/.131

$

$

Not available

2

Electrolux/AYP 52-468-05

WASHER, .137/.140 (A.R.)

$

$

Not available

1

Electrolux/AYP 52-041-20

GASKET

$

$

Not available

2

Electrolux/AYP 52-755-78

KIT, CYL. HEAD

$

$

Not available

3

Electrolux/AYP 25-086-07

SCREW

$

$

Not available

4

Kohler 220534

WASHER
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

5

Electrolux/AYP 41-086-02

SCREW

$

$

Not available

6

Electrolux/AYP 52-072-15

STUD

$

$

Not available

7

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

1

Electrolux/AYP 52-038-04

DIPSTICK, BLADE 11-5/16

$

$

Not available

2

Electrolux/AYP 52-123-09

TUBE, OIL LEVEL

$

$

Not available

3

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$

$

Not available

4

Electrolux/AYP 52-154-01

CLIP, TUBE

$

$

Not available

5

Electrolux/AYP 52-173-01

CAP, PIPE

$

$

Not available

6

Electrolux/AYP 46-136-02

PIPE, OIL

$

$

Not available

1

Electrolux/AYP 52-164-17

MANIFOLD

$

$

Not available

2

Electrolux/AYP 52-041-14

GASKET, EXHAUST

$

$

Not available

3

Electrolux/AYP 52-072-13

STUD

$

$

Not available

4

Electrolux/AYP 52-112-08

SPACER

$

$

Not available

5

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

Usually ships in 2-5 days

0

6

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler X-55-6

SCREW
(Superseded to X-55-6-S)

$3.49

$

In Stock, only 3 left!

0

1

Electrolux/AYP 52-098-06

STARTER ASSEMBLY

$

$

Not available

2

Kohler X-20-1

WASHER
(Superseded to X-20-1-S)

$3.99

$

Usually ships in 2-5 days

0

3

Kohler X-81-1

NUT
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 52-755-05

KIT, DRIVE

$

$

Not available

5

Electrolux/AYP 52-755-08

KIT, DRIVE PARTS

$

$

Not available

6

Electrolux/AYP 52-227-01

CAP, DRIVE END

$

$

Not available

7

Electrolux/AYP 52-170-03

ARMATURE

$

$

Not available

8

Electrolux/AYP 52-211-03

BOLT

$

$

Not available

9

Electrolux/AYP 52-227-01

CAP, DRIVE END

$

$

Not available

10

Electrolux/AYP 52-755-15

KIT, BRUSH

$

$

Not available

11

Electrolux/AYP 52-126-09

BRACKET, MOUNTING

$

$

Not available

Electrolux/AYP 52-357-01

LUBRICANT, STARTER

$

$

Not available

Electrolux/AYP 25-450-03

TAG CAUTION

$

$

Not available
