AYP 8208 B39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE-PISTON AND ROD/CAMSHAFT AND VALVES/OIL FILTER/LOW OIL PRESSURE SWITCH/OIL PUMP Parts Diagram

Lawn Tractor

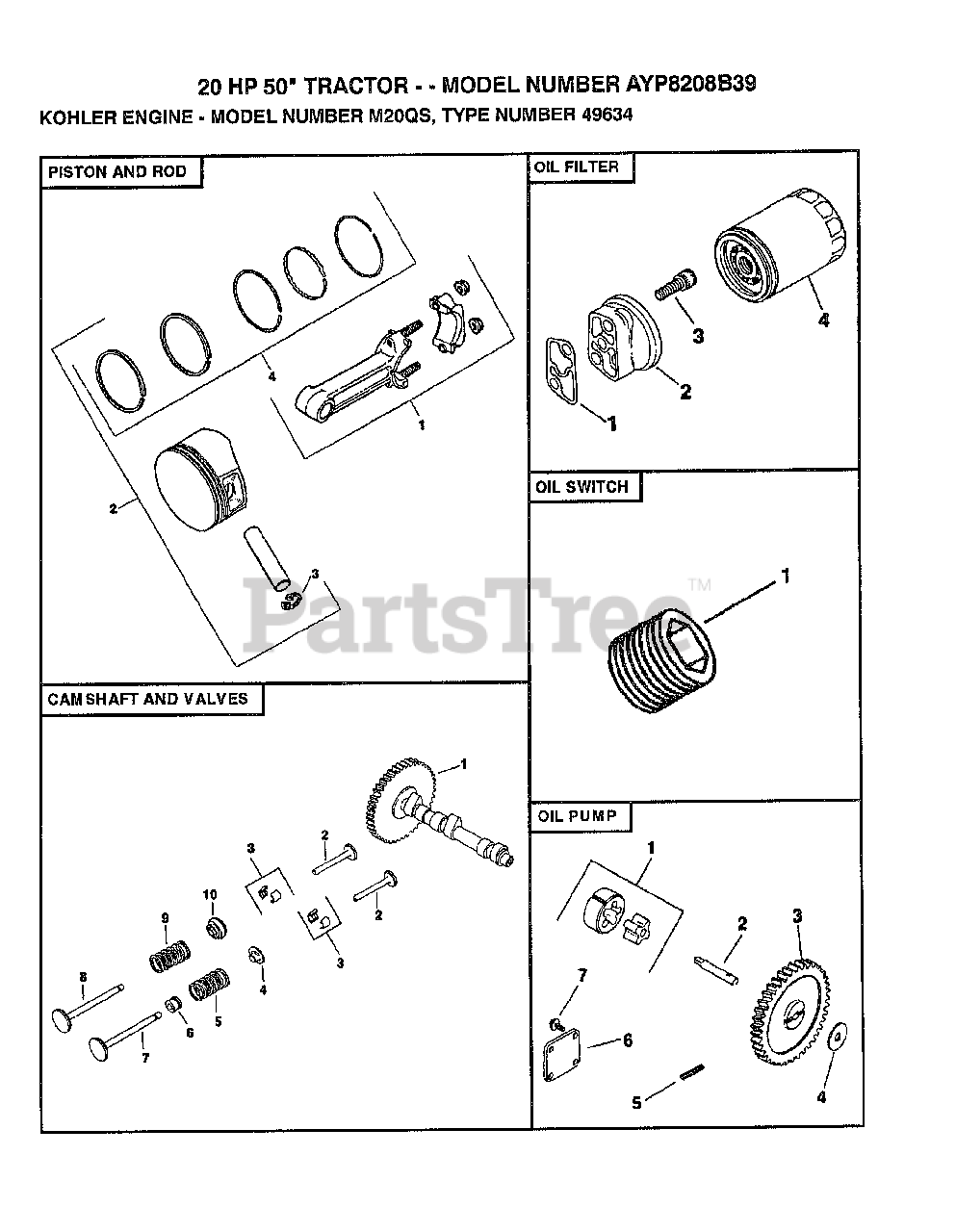

KOHLER ENGINE-PISTON AND ROD/CAMSHAFT AND VALVES/OIL FILTER/LOW OIL PRESSURE SWITCH/OIL PUMP Parts Diagram

  • Title

1

Electrolux/AYP 52-067-71

CONNECTING ROD, STANDARD

$

$

Not available

1

Electrolux/AYP 52-067-72

CONNECTING ROD

$

$

Not available

2

Electrolux/AYP 52-874-16

PISTON WITH RING SET, STANDARD

$

$

Not available

2

Electrolux/AYP 52-874-17

PISTON WITH RING SET .003"

$

$

Not available

2

Electrolux/AYP 52-874-18

PISTON WITH RING SET .010"

$

$

Not available

2

Electrolux/AYP 52-874-19

PISTON WITH RING SET .020"

$

$

Not available

2

Electrolux/AYP 52-874-20

PISTON WITH RING SET .030"

$

$

Not available

3

Electrolux/AYP 52-141-01

RETAINER, PISTON PIN

$

$

Not available

4

Electrolux/AYP 52-108-09

RING SET, .003"

$

$

Not available

4

Electrolux/AYP 52-108-10

RING SET, .010"

$

$

Not available

4

Electrolux/AYP 52-108-11

RING SET, 020"

$

$

Not available

4

Electrolux/AYP 52-108-12

RING SET, .030"

$

$

Not available

1

Electrolux/AYP 52-012-09

CAMSHAFT

$

$

Not available

2

Electrolux/AYP 52-019-03

TAPPET

$

$

Not available

3

Electrolux/AYP 41-755-10

KIT RETAINER

$

$

Not available

4

Kohler 230011

RETAINER, INTAKE VALVE
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 11

0

5

Electrolux/AYP 25-089-01

SPRING

$

$

Not available

6

Electrolux/AYP 52-032-13

SEAL

$

$

Not available

7

Electrolux/AYP 52-017-07

VALVE, INTAKE

$

$

Not available

8

Electrolux/AYP 52-016-06

VALVE

$

$

Not available

9

Electrolux/AYP 25-089-01

SPRING

$

$

Not available

10

Electrolux/AYP 52-413-01

ROTATOR

$

$

Not available

1

Electrolux/AYP 52-041-16

GASKET

$

$

Not available

2

Electrolux/AYP 52-181-03

ADAPTER, OIL FILTER

$

$

Not available

3

Kohler X-55-15

SCREW
(Superseded to X-55-15-S)

$3.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 52-050-02

OIL FILTER

$

$

Not available

1

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 3 left!

0

1

Electrolux/AYP 52-393-09

ROTOR SET

$

$

Not available

2

Electrolux/AYP 52-144-05

SHAFT OIL PUMP

$

$

Not available

3

Electrolux/AYP 52-043-05

GEAR OIL PUMP

$

$

Not available

4

Electrolux/AYP 52-422-01

SPACER

$

$

Not available

5

Kohler X-280-25

PIN, ROLL
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 52-096-03

COVER OIL PUMP

$

$

Not available

7

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$

$

Not available

Electrolux/AYP 52-522-77

SHORT BLOCK

$

$

Not available

Electrolux/AYP 52-755-94

GASKET SET

$

$

Not available
