AYP 8209 A49 - Electrolux/AYP Lawn Tractor (1994) PISTON AND ROD Parts Diagram

Lawn Tractor

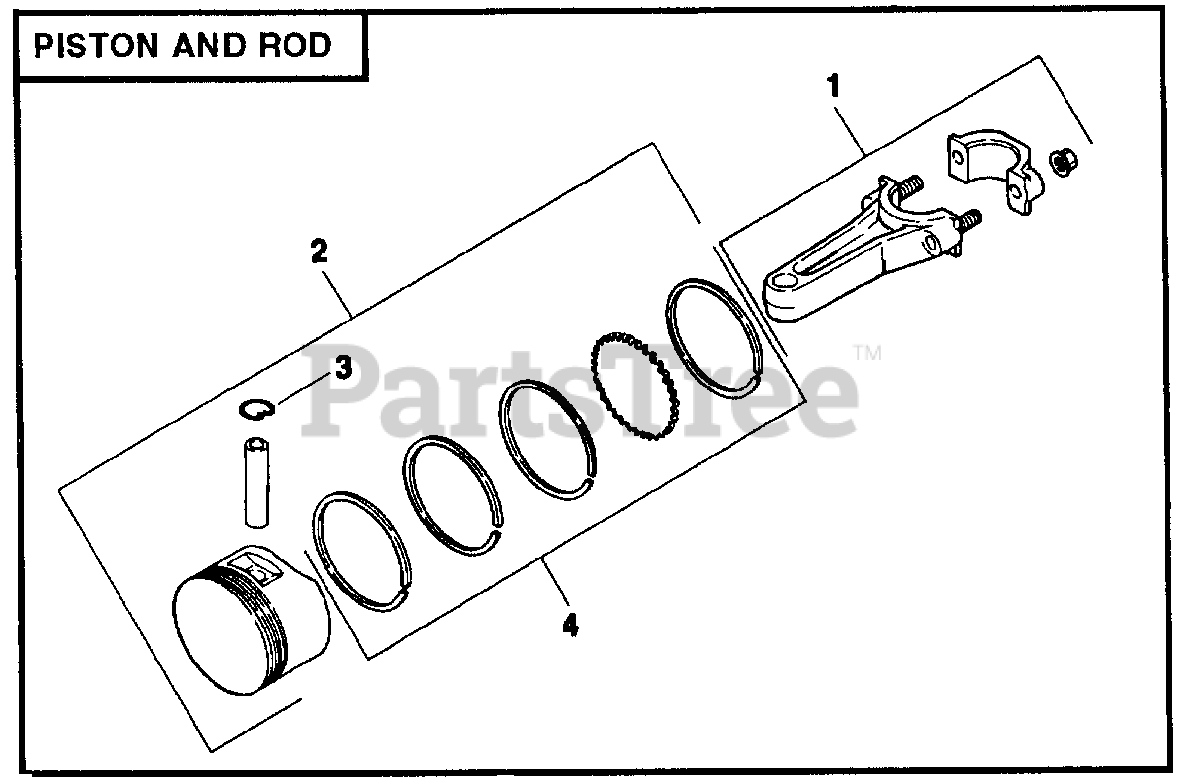

PISTON AND ROD Parts Diagram

  • Title

1

Electrolux/AYP 52-067-67

CONNECTING ROD

$

$

Not available

1A

Electrolux/AYP 52-067-68

CONNECT. ROD .010"

$

$

Not available

2

Electrolux/AYP 52-874-11

PISTON W/RING SET

$

$

Not available

2A

Electrolux/AYP 52-874-12

PISTON W/RING SET .003"

$

$

Not available

2B

Electrolux/AYP 52-874-13

PISTON W/RING SET .010"

$

$

Not available

2C

Electrolux/AYP 52-874-14

PISTON W/RING SET .020"

$

$

Not available

2D

Electrolux/AYP 52-874-15

PISTON W/RING SET .030"

$

$

Not available

3

Electrolux/AYP 230004

RETAINER, PISTON PIN

$

$

Not available

4

Electrolux/AYP 52-108-09

RING SET, .003"

$

$

Not available

4A

Electrolux/AYP 52-108-10

RING SET, .010"

$

$

Not available

4B

Electrolux/AYP 52-108-11

RING SET, 020"

$

$

Not available

4C

Electrolux/AYP 52-108-12

RING SET, .030"

$

$

Not available
