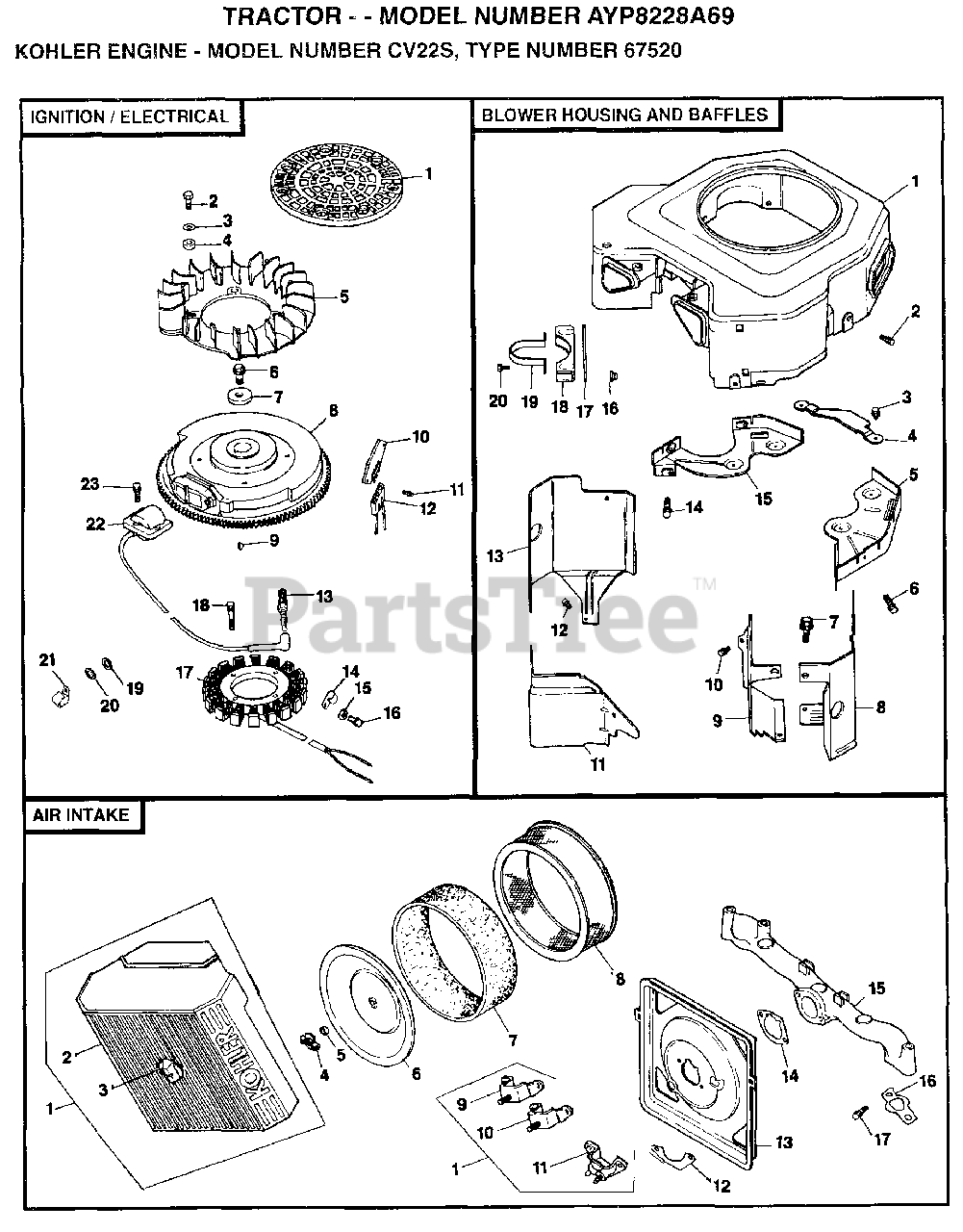

AYP 8228 A69 - Electrolux/AYP Lawn Tractor (1996) KOHLER ENGINE Parts Diagram

Lawn Tractor

KOHLER ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 24-162-17

SCREEN, GRASS

$

$

Not available

2

Kohler M-0403025

SCREW
(Superseded to M-403025-S)

$4.99

$

Usually ships in 2-5 days

0

3

Kohler X-25-92

WASHER
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 24-112-04

SPACER

$

$

Not available

5

Electrolux/AYP 24-157-03

FAN

$

$

Not available

6

Kohler M-0639016

SCREW
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

7

Electrolux/AYP 12-112-01

SCREW

$

$

Not available

8

Electrolux/AYP 24-025-04

FLYWHEEL ASSEMBLY

$

$

Not available

9

Kohler X-42-15

KEY
(Superseded to X-42-15-S)

$2.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 25-403-03

RECTIFIER-REGULATOR

$

$

Not available

11

Electrolux/AYP 24-086-18

SCREW

$

$

Not available

12

Kohler 236602

CONNECTOR
(Superseded to 236602-S)

$7.99

$

In Stock, Qty 10

0

13

Electrolux/AYP 12-132-02

SPARK PLUG

$

$

Not available

14

Electrolux/AYP 48-154-02

CLIP

$

$

Not available

15

Electrolux/AYP 12-468-03

WASHER

$

$

Not available

16

Electrolux/AYP 12-086-14

SCREW

$

$

Not available

17

Electrolux/AYP 24-085-01

STATOR

$

$

Not available

18

Kohler M-0548025

SCREW
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

19

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

20

Kohler X-25-92

WASHER
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

21

Kohler 235173

CLIP
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

22

Electrolux/AYP 24-584-01

MODULE

$

$

Not available

23

Kohler SM-0545020

SCREW
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

Electrolux/AYP 24-176-12

HARNESS

$

$

Not available

Electrolux/AYP 25-518-28

LEAD

$

$

Not available

Electrolux/AYP 24-113-18

DECAL

$

$

Not available

1

Electrolux/AYP 24-027-20

HOUSING

$

$

Not available

2

Kohler M-0545016

SCREW
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

3

Kohler M-0645016

SCREW
(Superseded to M-645016)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 24-314-05

SCREW

$

$

Not available

5

Electrolux/AYP 24-146-02

GUARD

$

$

Not available

6

Kohler M-0545020

PLATE

$

$

Not available

7

Kohler M-0551016

SCREW
(Superseded to M-551016-S)

$2.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 24-063-20

SCREW

$

$

Not available

9

Electrolux/AYP 24-063-14

BAFFLE

$

$

Not available

10

Kohler M-0545010

SCREW, MOUNTING
(Superseded to M-545010)

$4.49

$

In Stock, Qty 9

0

11

Electrolux/AYP 24-063-23

BAFFLE

$

$

Not available

12

Kohler M-0545016

SCREW
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 24-063-30

BAFFLE

$

$

Not available

14

Kohler M-0645016

SCREW
(Superseded to M-645016)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 24-146-08

PLATE

$

$

Not available

16

Electrolux/AYP 24-100-02

NUT

$

$

Not available

17

Electrolux/AYP 24-112-12

SPACER

$

$

Not available

18

Electrolux/AYP 24-126-44

BRACKET, BREATHER SEPARATOR

$

$

Not available

19

Electrolux/AYP 24-445-02

STRAP, BREATHER SEPARATOR

$

$

Not available

20

Electrolux/AYP 24-086-27

SPREW

$

$

Not available

Electrolux/AYP 24-100-01

NUT

$

$

Not available

Electrolux/AYP 24-100-02

NUT

$

$

Not available

Electrolux/AYP 25-139-16

PLUG

$

$

Not available

1

Electrolux/AYP 24-743-05

KIT, AIR CLEANER COVER

$

$

Not available

2

Electrolux/AYP 24-096-24

COVER, AIR CLEANER

$

$

Not available

3

Electrolux/AYP 25-341-02

KNOB

$

$

Not available

4

Electrolux/AYP 12-100-01

WING NUT

$

$

Not available

5

Electrolux/AYP 24-032-03

SEAL

$

$

Not available

6

Electrolux/AYP 24-096-01

COVER

$

$

Not available

7

Electrolux/AYP 24-083-02

ELEMENT

$

$

Not available

8

Electrolux/AYP 24-083-03

ELEMENT

$

$

Not available

9

Electrolux/AYP 24-126-21

BRACKET

$

$

Not available

10

Electrolux/AYP 24-126-43

BRACKET

$

$

Not available

11

Electrolux/AYP 24-109-06

CUP

$

$

Not available

12

Electrolux/AYP 24-041-13

GASKET

$

$

Not available

13

Electrolux/AYP 24-094-14

BASE

$

$

Not available

14

Electrolux/AYP 24-041-14

GASKET

$

$

Not available

15

Electrolux/AYP 24-164-06

MANIFOLD

$

$

Not available

16

Electrolux/AYP 24-041-01

GASKET

$

$

Not available

17

Electrolux/AYP M-0519055

SCREW

$

$

Not available

Electrolux/AYP 12-113-53

DECAL

$

$

Not available
