B-110 (2029927) - Allis-Chalmers Garden Tractor, 10hp CLUTCH AND BRAKE GROUP - MFG Nos.990496 & 990497 Parts Diagram

Garden Tractor, 10hp

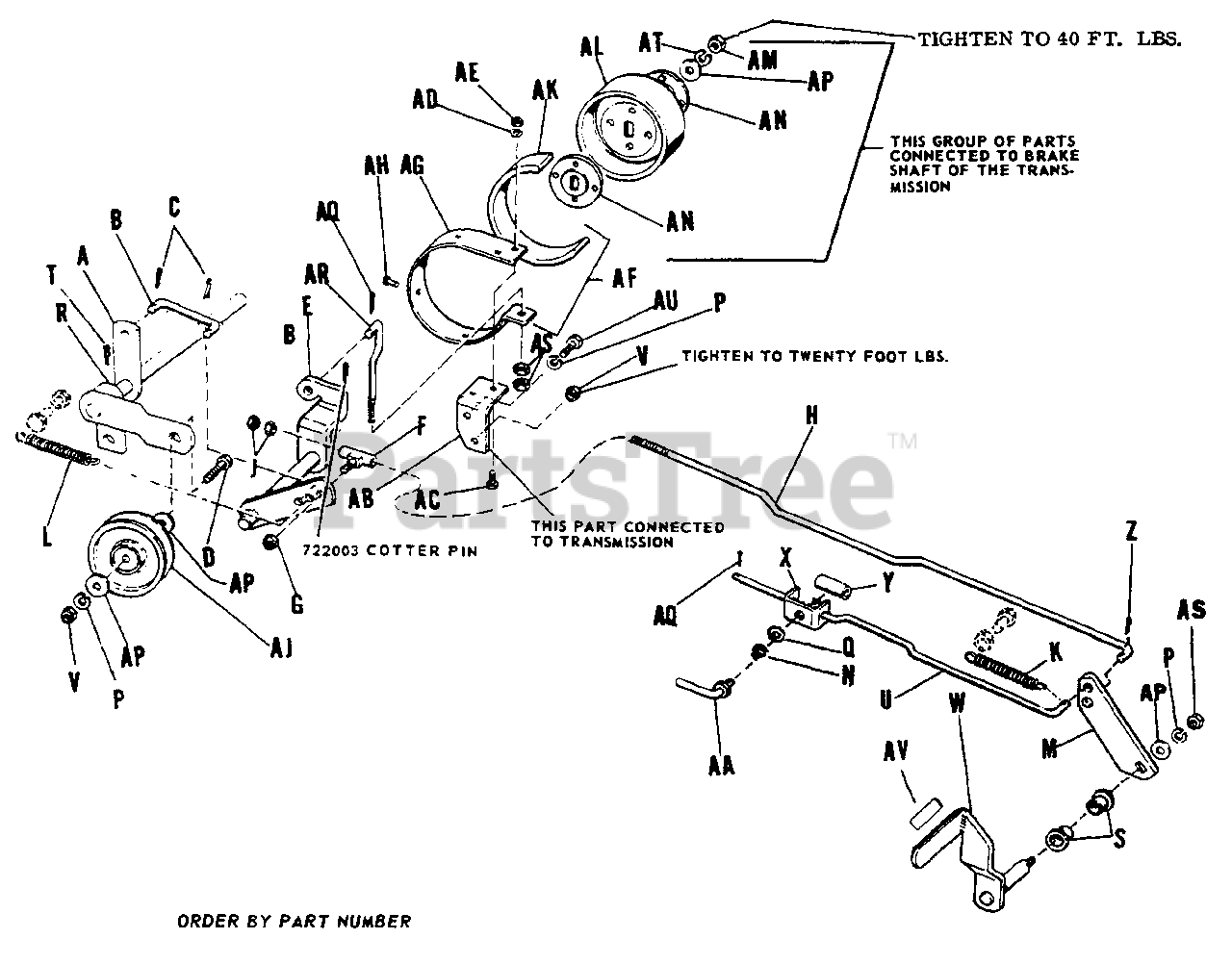

CLUTCH AND BRAKE GROUP - MFG Nos.990496 & 990497 Parts Diagram

  • Title

A

Simplicity 164057

Idler Pivot Assembly

$

$

Not available

B

Simplicity 157039

Clutch Lever Link

$

$

Not available

C

Simplicity 2722001

Cotter Pin, 3/32 x 3/4" lg.

$

$

Not available

D

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1-1/4"

$

$

Not available

E

Simplicity 157274

Pivot Lever Assembly

$

$

Not available

F

Simplicity 2164094SM

Rod Guide Assembly

$65.99

$

Usually ships in 2-12 days

0

G

Simplicity 2717511

Full Lock Hex. Nut, 5/16"-18

$

$

Not available

H

Simplicity 157303

Brake & Clutch Rod

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 2159106SM

Tension Spring
(Superseded to 703144)

$6.49

$

In Stock, only 2 left!

0

L

Simplicity 2156302

Tension Spring
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

M

Simplicity 2157300SM

Pedal Foot Arm

$

$

Not available

N

Simplicity 2157127SM

Spring

$

$

Not available

P

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Q

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

R

Simplicity 164055

Bar Pivot

$

$

Not available

S

Simplicity 2108419

Bushing

$

$

Not available

T

Simplicity 2722009

Cotter Pin 1/8 x 3/4" lg.

$

$

Not available

U

Simplicity 164210

Brake Rod

$

$

Not available

V

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

W

Simplicity 157280

Foot Pedal Assembly

$

$

Not available

X

Simplicity 164143

Bracket Assembly

$

$

Not available

Y

Simplicity 157287

Spacer

$

$

Not available

Z

Simplicity 2722009

Cotter Pin, 1/8 x 3/4" lg.

$

$

Not available

AA

Simplicity 164142

Park Brake Lock

$

$

Not available

AB

Simplicity 154134

Brake Band Bracket

$

$

Not available

AC

Simplicity 2705030

Hex. Cap Screw, 1/4"-20 x 3/4"

$

$

Not available

AD

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AE

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

AF

Simplicity 2164111

Brake Band & Lining Assembly

$

$

Not available

AG

Simplicity 1679358SM

Brake Band

$

$

Not available

AH

Simplicity 724501

Rivet #7 x 5/16"

$

$

Not available

AJ

Simplicity 105285

Idler Pulley

$

$

Not available

AK

Simplicity 2154133

Brake Lining

$

$

Not available

AL

Simplicity 2157282

Brake Drum

$

$

Not available

AM

Simplicity 2717022

Full Hex. Nut, 7/16"-14

$

$

Not available

AN

Simplicity 2158196SM

Special Washer

$7.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AQ

Simplicity 2722001

Cotter Pin, 3/32 x 3/4"

$

$

Not available

AR

Simplicity 157261

Brake Rod

$

$

Not available

AS

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AT

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AU

Simplicity 2705031

Hex. Cap Screw 3/8"-16 x 7/8" lg.

$

$

Not available

AV

Simplicity 162098

Pad, Pedal

$

$

Not available
