B-112 (2029930) - Allis-Chalmers Garden Tractor, 12hp POWER LIFT GROUP - Diagram 2 Parts Diagram

Garden Tractor, 12hp

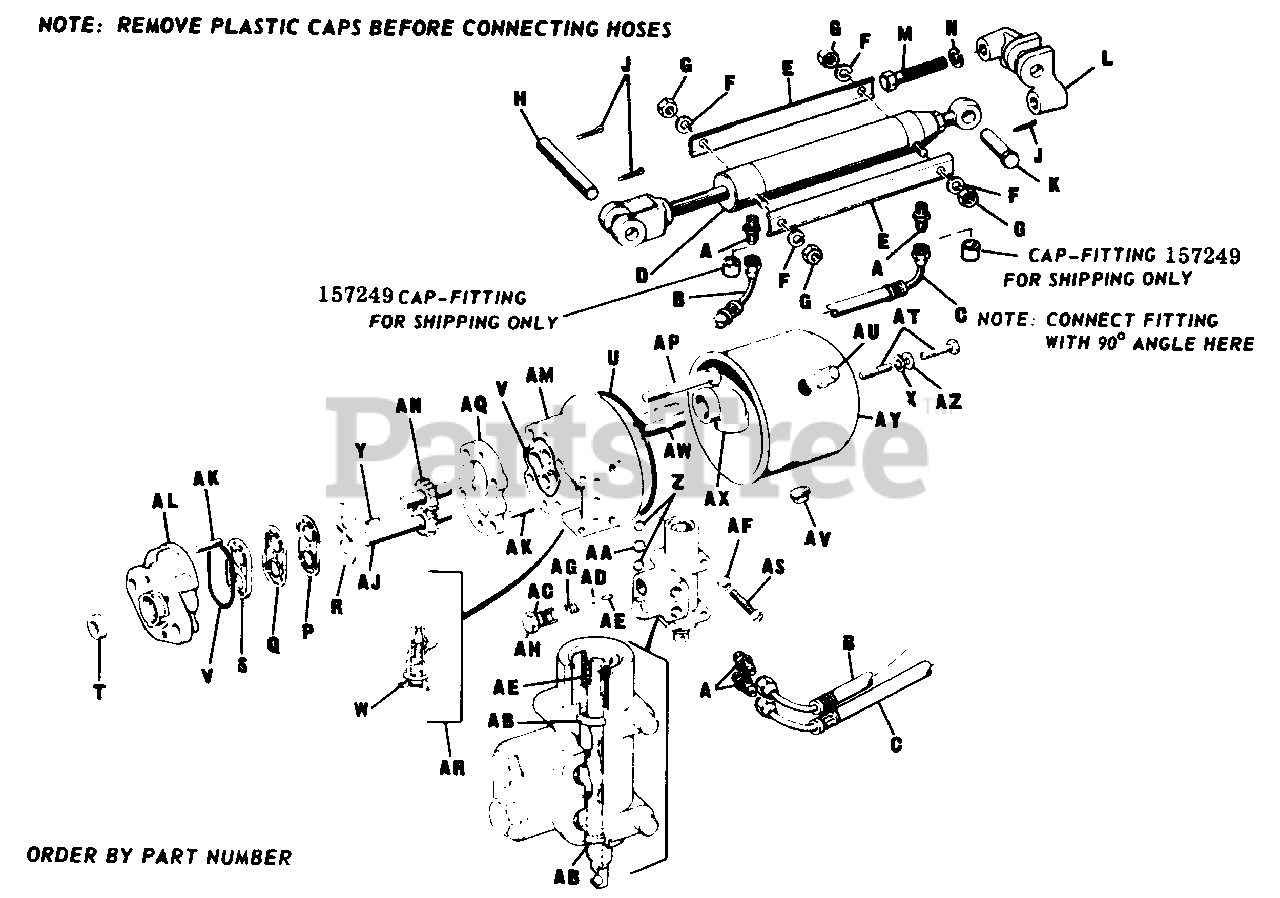

POWER LIFT GROUP - Diagram 2 Parts Diagram

  • Title
A

$

$

Not available

B

Simplicity 157210

Hose Assembly

$

$

Not available

C

Simplicity 157211

Hose Assembly

$

$

Not available

D

Simplicity 157236

Cylinder Assembly

$

$

Not available

E

$

$

Not available

F

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

G

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

$

$

Not available

J

Simplicity 2722009

Cotter Pin, 1/8" x 3/4"

$

$

Not available

K

Simplicity 157194

Ram Bracket Pin

$

$

Not available

L

Simplicity 157001

Ram Bracket

$

$

Not available

M

Simplicity 705052

Hex. Cap Screw 7/16"-14 x 2-1/4"

$10.99

$

In Stock, only 1 left!

0

N

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

P

Simplicity 157433

Heat Shield (for service only)

$

$

Not available

$

$

Not available

R

Simplicity 157435

Wear Plate

$

$

Not available

$

$

Not available

T

Simplicity 157437

Rotary Seal

$

$

Not available

U

$

$

Not available

V

$

$

Not available

W

$

$

Not available

X

Simplicity 157441

Stat-O-Seal

$

$

Not available

Y

Simplicity 157442

Shaft Drive Key

$

$

Not available

Z

$

$

Not available

AA

$

$

Not available

AB

$

$

Not available

AC

$

$

Not available

$

$

Not available

AE

$

$

Not available

AF

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

AG

$

$

Not available

$

$

Not available

AJ

Simplicity 157450

Drive Gear Assembly

$

$

Not available

AK

Simplicity 157451

Dowel Pin

$

$

Not available

AL

Simplicity 157452

Front Cover Assembly

$

$

Not available

AM

Simplicity 157453

Back Cover Assembly

$

$

Not available

AN

Simplicity 157454

Driven Gear Assembly

$

$

Not available

$

$

Not available

AQ

Simplicity 157456

Center, Section Machined

$

$

Not available

AR

Simplicity 157457

Relief Valve Assembly

$

$

Not available

$

$

Not available

$

$

Not available

AU

Simplicity 157462

Filler Cap Plug

$

$

Not available

AV

Simplicity 157463

Drain Plug

$

$

Not available

AW

Simplicity 157464

Inlet Nipple

$

$

Not available

AX

Simplicity 157465

Inlet Elbow

$

$

Not available

AY

Simplicity 157461

Tank Assembly

$

$

Not available

AZ

Simplicity 2719006

Flat Washer, 1/4"

$

$

Not available
