B 1750 - Poulan Blower (2006-12) Housing Parts Diagram

Blower

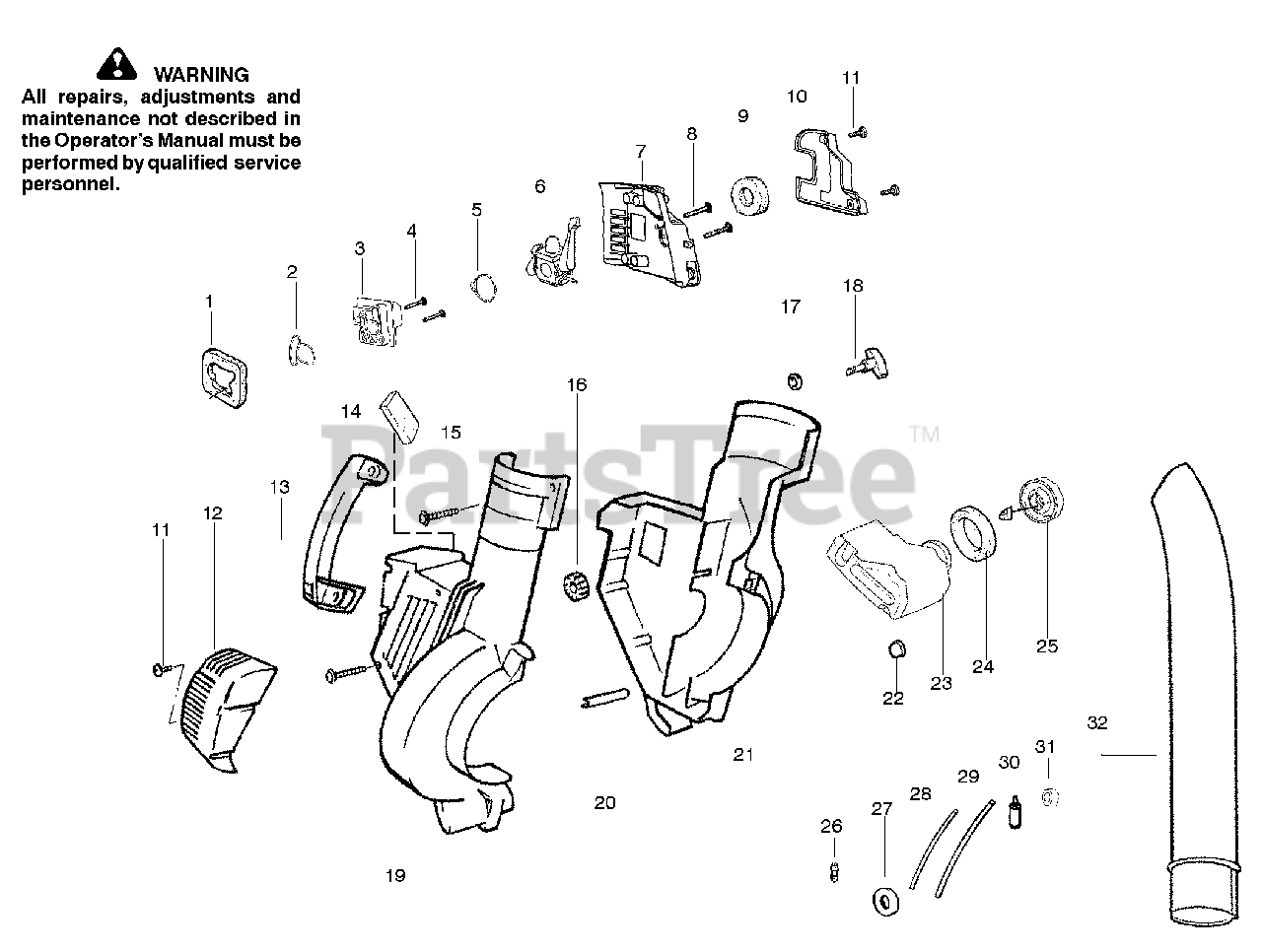

Housing Parts Diagram

  • Title

1

Electrolux/AYP 530071459

Air Dam (kit)

$

$

Not available

2

Electrolux/AYP 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Electrolux/AYP 530035561

Carburetor Adaptor

$

$

Not available

4

Electrolux/AYP 530016309

Screw

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Electrolux/AYP 530071632

Kit-Carb Ass'y. Zama-(C1Q-W11C)
(Superseded to 530071775)

$74.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 530071775

Kit-Carb Ass'y. Walbro-(WT-606)

$74.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 530056629

Air Box

$

$

Not available

8

Electrolux/AYP 530015849

Screw-Carb.

$6.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530049383

Filter-Air

$

$

Not available

10

Electrolux/AYP 530056581

Cover-Air Filter

$

$

Not available

11

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530056641

Guard-Muffler
(Superseded to 545085001)

$14.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 530095469

Handle

$

$

Not available

14

Electrolux/AYP 530071459

Foam - 71.12mm (kit)

$

$

Not available

15

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

16

Electrolux/AYP 530049323

Isolator

$

$

Not available

17

Electrolux/AYP 530015197

Nut

$6.49

$

In Stock, Qty 5

0

18

Electrolux/AYP 530016322

Knob-Blower

$3.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 545018501

Shroud-RH

$21.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530049617

Guide-Starter Rope

$

$

Not available

21

Electrolux/AYP 545018601

Shroud-LH

$27.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 545058007

Assy-Fuel Tank

$

$

Not available

24

Electrolux/AYP 530049527

Gasket-Fuel Tank

$

$

Not available

25

Electrolux/AYP 530049386

Fuel Cap w/Retainer
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530023877

Fitting-Fuel Line

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 530049656

Grommet-Shroud

$

$

Not available

28

Electrolux/AYP 530069247

Kit-Line Carb/Purge

$6.49

$

In Stock, Qty 20+

0

29

Electrolux/AYP 530069216

Kit-Line Tank/Purge

$6.49

$

In Stock, Qty 20+

0

30

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 530071459

Grommet-Fuel line (kit)

$

$

Not available

32

Electrolux/AYP 530095597

Tube-Blower

$14.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 545117571

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530057866

Warning Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530057215

Decal-Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
