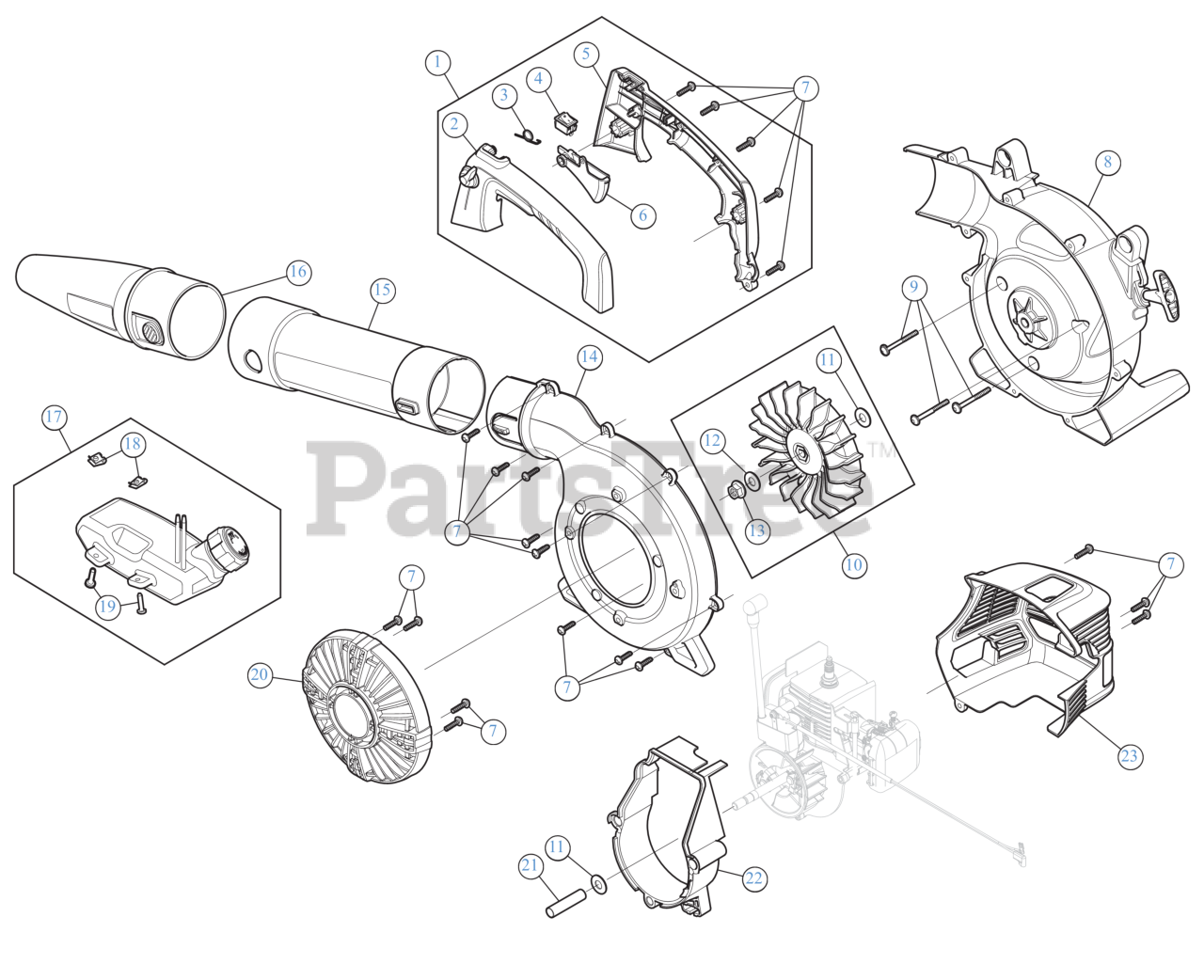

B 2000 (CMXGAAM204101) (41BR25B2793) - Craftsman Handheld Blower General Assembly Parts Diagram

Handheld Blower

General Assembly Parts Diagram

  • Title

1

MTD 753-11129

HANDLE ASSEMBLY

Note: (Incl. 1 - 7)

$8.49

$

Usually ships in 3-6 days

0

2

MTD 841-014641S

HANDLE (lH)

$

$

Currently unavailable

3

MTD 753-05007

TRIGGER SPRING

$5.49

$

Usually ships in 3-6 days

0

4

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 20+

0

5

MTD 731-10776A-49

HANDLE (RH)

$4.49

$

Usually ships in 3-6 days

0

6

MTD 731-09987-3

THROTTLE TRIGGER

$2.99

$

Usually ships in 3-6 days

0

7

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

8

MTD 753-09186

IMPELLER HOUSING ASSEMBLY (INNER)

Note: (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

MTD 710-06341

SCREW 10/32

$3.49

$

In Stock, Qty 7

0

10

MTD 753-08491

IMPELLER ASSEMBLY

Note: (Incl. 11 - 13)

$7.99

$

In Stock, Qty 8

0

11

MTD 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

12

MTD 736-04110A

LOCK WASHER

$5.49

$

Usually ships in 3-6 days

0

13

MTD 712-04137

NUT 3/8-24

$6.99

$

In Stock, only 3 left!

0

14

MTD 753-09185

IMPELLER HOUSING ASSEMBLY (OUTER)

Note: (Incl. 7)

$12.99

$

In Stock, only 1 left!

0

15

MTD 731-10598

TUBE UPPER

$7.49

$

In Stock, Qty 13

0

16

MTD 731-10604

NOZZLE

$5.49

$

In Stock, only 1 left!

0

17

MTD 753-08508

FUEL TANK ASSEMBLY

Note: (Incl. 18 & 19)

$21.99

$

Usually ships in 3-6 days

0

18

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 2 left!

0

19

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, Qty 9

0

20

MTD 753-08539

INTAKE COVER

Note: (Incl. 7)

$4.99

$

In Stock, Qty 6

0

21

MTD 750-06367

SPACER

$3.49

$

Usually ships in 3-6 days

0

22

MTD 753-08496

ENGINE ADAPTER

Note: (Incl. 9)

$7.49

$

Usually ships in 3-6 days

0

23

MTD 753-08510

ENGINE COVER

Note: (Incl. 7)

$22.99

$

Usually ships in 3-6 days

0
