B 2200 (CMXGAAMRBL25) (41BRBL25793) - Craftsman Handheld Blower General Assembly Parts Diagram

Handheld Blower

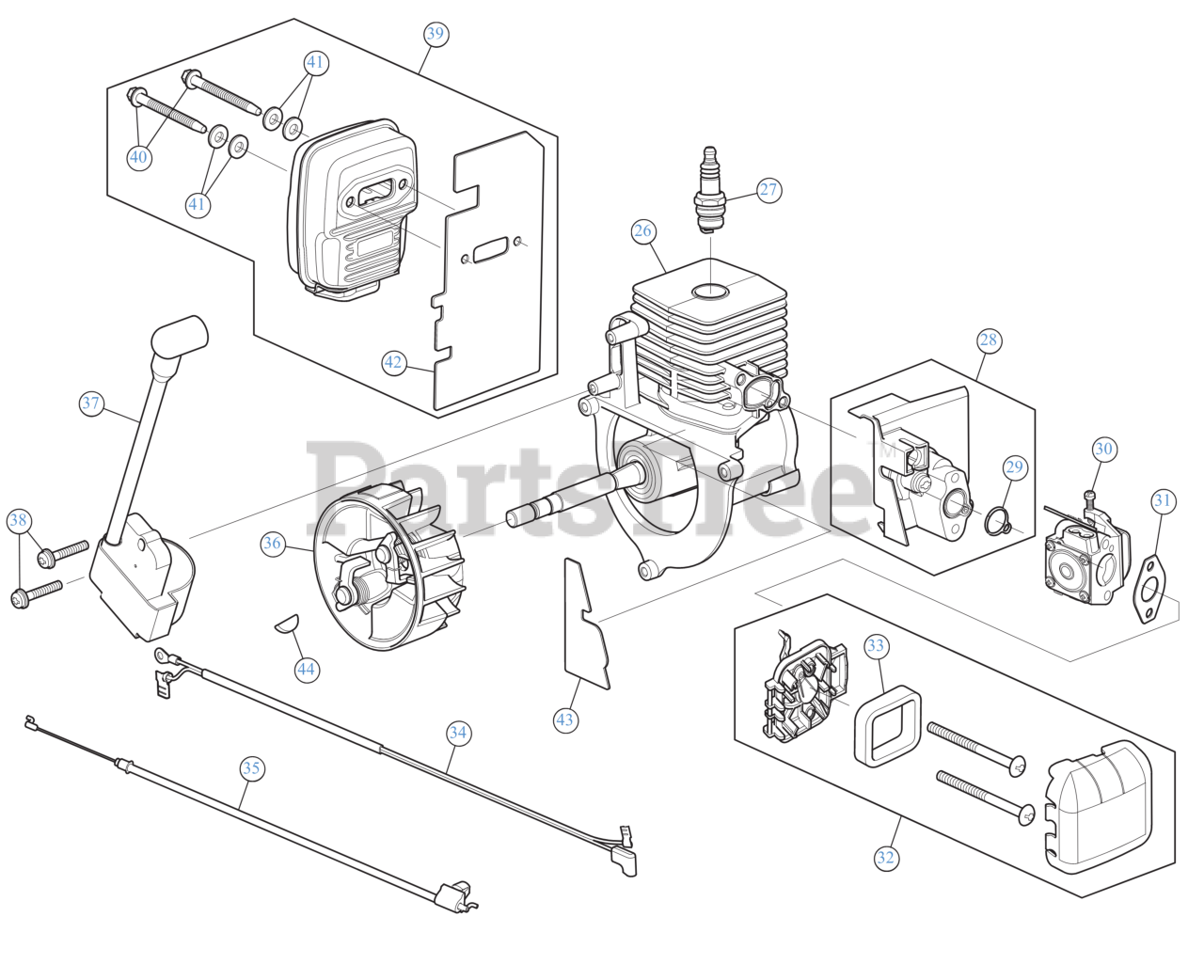

General Assembly Parts Diagram

  • Title

26

MTD 753-09204

SHORT BLOCK

$50.99

$

In Stock, Qty 5

0

27

MTD 753-06847

SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

28

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 29)

$7.49

$

In Stock, Qty 20+

0

29

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

30

MTD 753-06190

CARBURETOR

$32.99

$

In Stock, Qty 20+

0

31

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

32

MTD 753-08498

AIR CLEANER ASSEMBLY

Note: (Incl. 33)

$8.49

$

In Stock, Qty 20+

0

33

MTD 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

34

MTD 725-06313

WIRE LEAD

$2.99

$

Usually ships in 3-6 days

0

35

MTD 746-06971

THROTTLE CABLE

$3.99

$

Usually ships in 3-6 days

0

36

MTD 753-08490

FLYWHEEL ASSEMBLY

$14.99

$

In Stock, only 4 left!

0

37

MTD 753-08489

MODULE

$16.99

$

In Stock, Qty 11

0

38

MTD 710-06301

SCREW 8-32X.750

$2.99

$

Usually ships in 3-6 days

0

39

MTD 753-08488

MUFFLER ASSEMBLY

Note: (Incl. 40 - 42)

$27.99

$

In Stock, only 1 left!

0

40

MTD 753-06294

MUFFLER SCREW

$2.99

$

In Stock, Qty 11

0

41

MTD 791-182568

WASH, FLAT .480X.1

$3.99

$

Usually ships in 3-6 days

0

42

MTD 721-04801

GASKET

$2.99

$

In Stock, only 1 left!

0

43

MTD 721-04824

SHORTBLOCK GASKET

$2.49

$

Usually ships in 3-6 days

0

44

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
