B 2216 CC (UT-10941) - Homelite Chainsaw Clutch - Hand Guard - Drive Case Cover Parts Diagram

Chainsaw

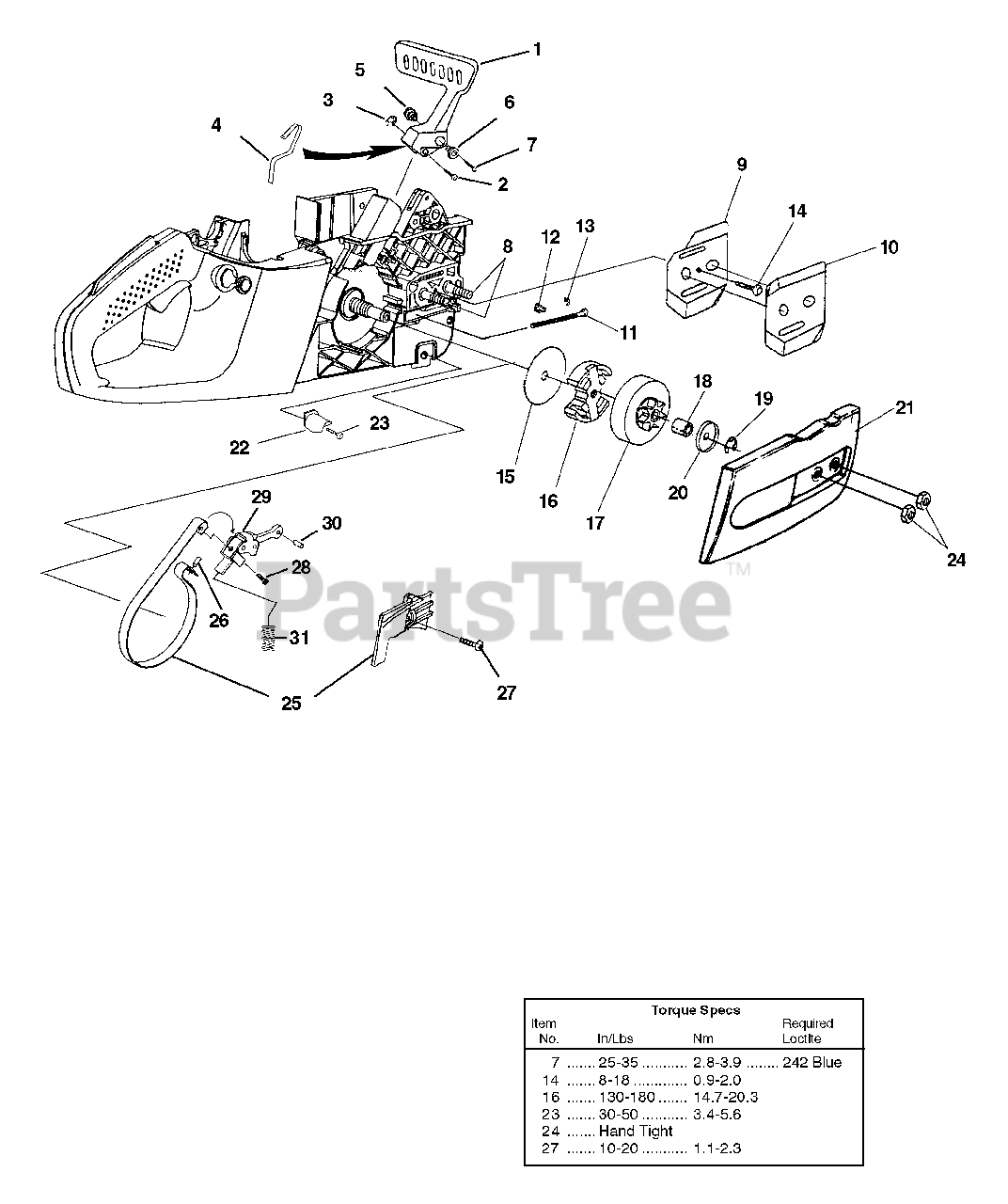

Clutch - Hand Guard - Drive Case Cover Parts Diagram

  • Title

1

Homelite UP06568A

Hand Guard Kit
(Superseded to 000998152)

Note: Includes items 2-3

$

$

Not available

2

Homelite 07580

Hand Guard Actuating Pin
(Superseded to 620282001)

$1.49

$

In Stock, Qty 20+

0

3

Homelite 69599

Retaining Ring

$

$

Not available

4

Homelite 07613

Spring, Handguard
(Superseded to 631052001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 07393

Pivot, L.H.
(Superseded to 671097001)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 07392

Pivot, R.H.
(Superseded to 671096001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 82624

Screw, Hex Socket Hd. (8-32 x 5/8")
(Superseded to 660635001)

$1.49

$

In Stock, only 2 left!

0

8

Homelite PS04881

Guide Bar Bolt

$

$

Not available

Homelite UP06966A

Guide Bar Adjusting Kit

$

$

Not available

9

Homelite 07404A

Plate, Guide Bar
(Superseded to 631036001)

Note: Includes items 9-13

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 07405A

Plate, Guide Bar
(Superseded to 631038001)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 06844

Screw, Guide Bar Adjusting

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 06842

Pin, Guide Bar Adjusting
(Superseded to 631037001)

$1.49

$

In Stock, only 4 left!

0

13

Homelite 69599

Ring, Retaining

$

$

Not available

14

Homelite 82513

Screw, Thread Form., Plastite (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

15

Homelite 04940

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 3 left!

0

16

Homelite UP06727A

Clutch & Hardware
(Superseded to 300960003)

$

$

Not available

17

Homelite UP06967A

Sprocket, Drum (3/8 Pitch)
(Superseded to 000998263)

Note: Includes items 18-19

$28.99

$

Usually ships in 3-7 days

0

18

Homelite PS04669

Bearing, Needle

$3.99

$

Usually ships in 3-7 days

0

19

Homelite 08981

Ring, Retaining

$2.99

$

In Stock, only 1 left!

0

20

Homelite 04939A

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

21

Homelite UP06975A

Drive Case Cover

Note: Includes items 22-23

$

$

Not available

22

Homelite UP05634A

Stop, Chain
(Superseded to 631035002)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 82563

Screw, Thread Form., Plastite (10-14 x 3/4")

$1.49

$

In Stock, Qty 6

0

24

Homelite 81196

Nut, Hex
(Superseded to 671076001)

$1.49

$

In Stock, only 3 left!

0

25

Homelite UP06373A

Chain Brake Kit

Note: Includes items 26-28

$

$

Not available

26

Homelite 06672

Pin, Roll
(Superseded to 671095001)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 82513

Screw, Pan Hd. (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

28

Homelite 82623

Screw, Pan Hd. (8-16 x .320)
(Superseded to 660634001)

$1.49

$

In Stock, Qty 20+

0

29

Homelite 984897001

Chain Brake Link

$

$

Not available

30

Homelite 95395A

Pin, Roll
(Superseded to 671099001)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 984679001

Spring, Compression

$

$

Not available
