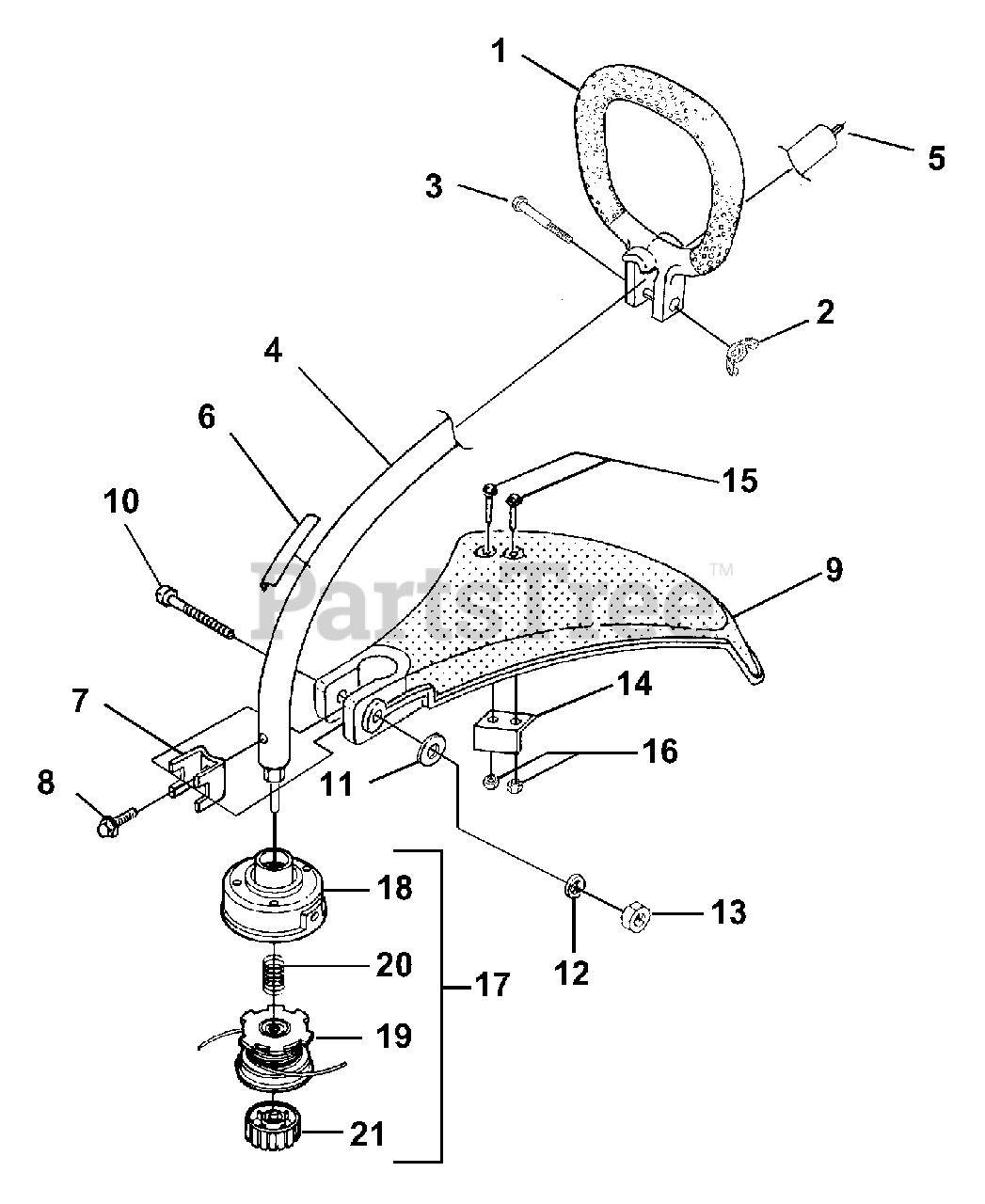

B 25 C (UT-20770) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP03010

HANDLE ASSY.-Front
(Superseded to UP03010A)

Note: Includes items 2-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP04357

DRIVESHAFT HOUSING ASSY.
(Superseded to UP04555A)

Note: Includes items 5-8

$

$

Not available

5

Homelite UP03031

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

6

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

7

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

8

Homelite 88077

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm.

$

$

Not available

9

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 10-16

$

$

Not available

10

Homelite 80295

SCREW-Cap Hex Hd. (10-24 X 2")

$2.99

$

Usually ships in 3-7 days

0

11

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

12

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

13

Homelite UP03399

NUT-Hex
(Superseded to 81242)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 15-16

$

$

Not available

15

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

16

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available

17

Homelite DA03001A

STRINGHEAD-Complete
(Superseded to UP04408A)

Note: Includes items 18-21

$

$

Not available

18

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

19

Homelite UP00145

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

Note: Includes item 20

$

$

Not available

20

Homelite B06713

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

21

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
