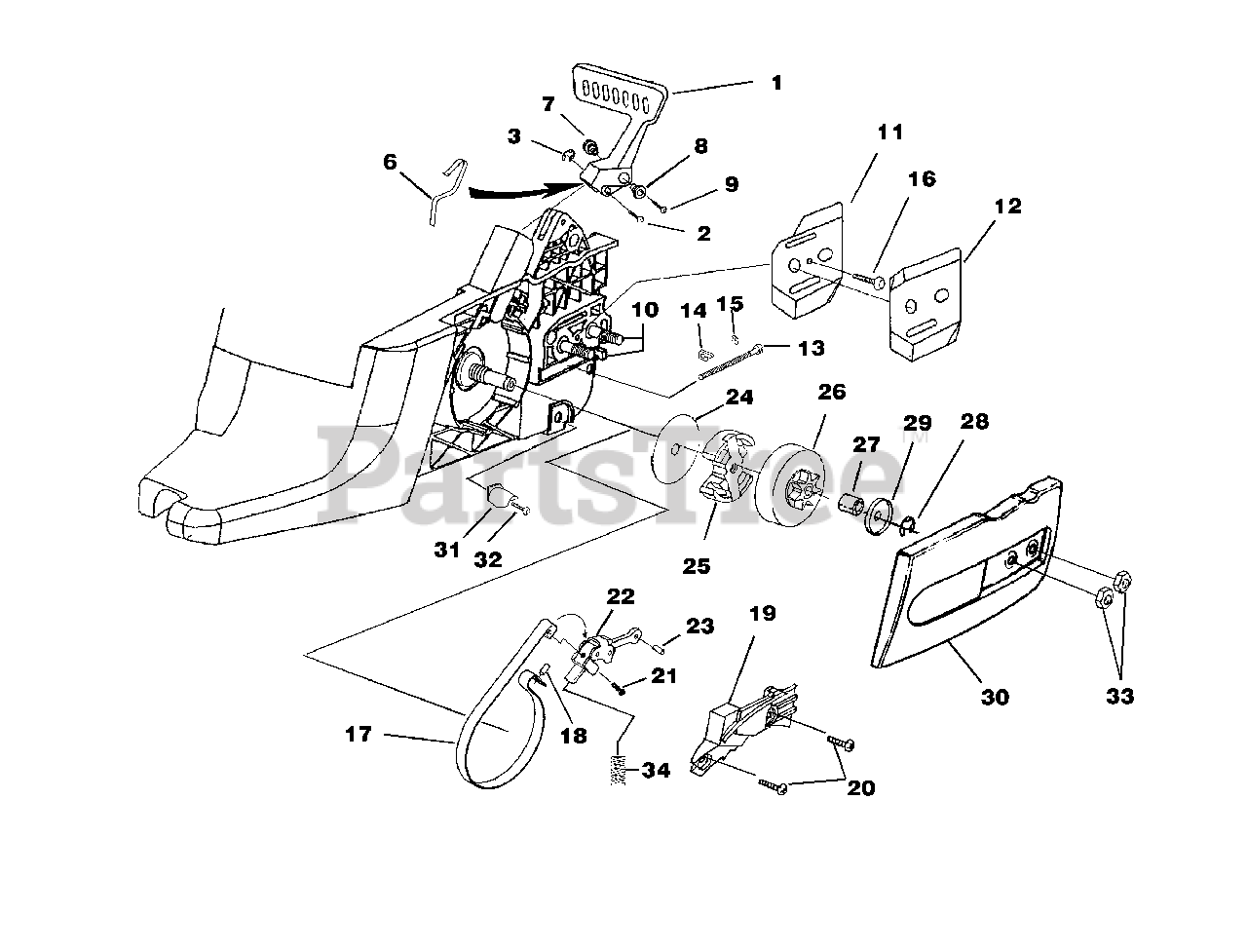

B 2720 CC (UT-10876) - Homelite Chainsaw Clutch - Chain Brake - Drive Case Cover Parts Diagram

Chainsaw

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title

1

Homelite UP06568

Hand Guard Kit
(Superseded to UP06568A)

Note: Includes items 2-5

$

$

Not available

2

Homelite UP04214

Hand Guard Actuating Pin
(Superseded to 620282001)

$1.49

$

In Stock, Qty 20+

0

3

Homelite UP04054

Retaining Ring
(Superseded to A68593)

$

$

Not available

?4

Homelite UP04207

Hand Guard Link

Note: (Non-chain brake units-not shown)

$

$

Currently unavailable

?5

Homelite UP04090

Roll Pin
(Superseded to 95395A)

Note: (Non-chain brake units-not shown)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite UP04224

Spring, Handguard
(Superseded to 631052001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite UP04202

Pivot, L.H.
(Superseded to 671097001)

$1.49

$

In Stock, only 1 left!

0

8

Homelite UP04201

Pivot, R.H.
(Superseded to 671096001)

$1.49

$

In Stock, only 1 left!

0

9

Homelite UP04240

Screw, Hex Socket Hd. (8-32 x 5/8")
(Superseded to 82624)

Note: Torque Specs 25-35 In/Lbs; 2.8-3.9 Nm

$1.49

$

In Stock, only 3 left!

0

10

Homelite UP04180

Guide Bar Bolt
(Superseded to PS04881)

$

$

Not available

Homelite UP06966

Guide Bar Adjusting Kit
(Superseded to UP06966A)

Note: Includes items 11-15

$

$

Not available

11

Homelite UP04206

Plate, Guide Bar
(Superseded to 631036001)

$

$

Not available

12

Homelite UP04085

Plate, Guide Bar
(Superseded to 631038001)

$1.49

$

In Stock, only 3 left!

0

13

Homelite UP04187

Screw, Guide Bar Adjusting
(Superseded to 06844)

$

$

Not available

14

Homelite UP04186

Pin, Guide Bar Adjusting
(Superseded to 631037001)

$1.49

$

In Stock, Qty 5

0

15

Homelite UP04056

Ring, Retaining
(Superseded to 69599)

$

$

Not available

16

Homelite UP04082

Screw, Thread Form (6-19 x 1/2")
(Superseded to 82513)

Note: Torque Specs 8-18 In/Lbs; .9-2.0 Nm

$1.49

$

In Stock, Qty 5

0

17

Homelite A08680A

Chain Brake Kit
(Superseded to UP06373A)

Note: Includes items 19-21

$

$

Not available

19

Homelite UP04309

Cover, Chain Brake
(Superseded to 985021001)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite UP04181

Pin, Roll
(Superseded to 671095001)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite UP04082

Screw, Pan Hd. (6-19 x 1/2")
(Superseded to 82513)

Note: Torque Specs 10-20 In/Lbs; 1.1-2.3 Nm

$1.49

$

In Stock, Qty 5

0

21

Homelite UP04239

Screw, Pan Hd. (8-16 x .320)
(Superseded to 82623)

Note: Torque Specs 20-30 In/Lbs; 2.3-3.4 Nm

$1.49

$

In Stock, Qty 20+

0

22

Homelite UP04223

Chain Brake Link
(Superseded to 984897001)

$

$

Not available

23

Homelite UP04090

Pin, Roll
(Superseded to 95395A)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite UP04182

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 3 left!

0

25

Homelite UP06727

Clutch & Hardware
(Superseded to UP06727A)

Note: Torque Specs 130-180 In/Lbs; 14.7-20.3 Nm

$

$

Not available

26

Homelite UP06967

Sprocket, Drum (3/8 Pitch)
(Superseded to UP06967A)

Note: Includes items 27-28

$28.99

$

Usually ships in 3-7 days

0

Homelite UP04560

Sprocket, Drum (.325 Pitch)
(Superseded to PA01650A)

Note: (i3850b & 45cc only)

$

$

Not available

27

Homelite UP04175

Bearing, Needle
(Superseded to PS04669)

$3.99

$

Usually ships in 3-7 days

0

28

Homelite UP04228

Ring, Retaining
(Superseded to 08981)

$2.99

$

In Stock, only 1 left!

0

29

Homelite UP04179

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

30

Homelite UP06975

Drive Case Cover
(Superseded to UP06975A)

Note: Includes items 31-32

$

$

Not available

31

Homelite UP04088

Stop, Chain
(Superseded to 95212)

$

$

Not available

32

Homelite UP03900

Screw, Thread Form (10-14 x 3/4")
(Superseded to 82563)

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$1.49

$

In Stock, Qty 6

0

33

Homelite UP04058

Nut, Hex
(Superseded to 81196)

Note: Torque Specs Hand Tight

$1.49

$

In Stock, Qty 5

0

34

Homelite UP04032

Spring, Compression
(Superseded to 984679001)

$

$

Not available
