B 40 - Shindaiwa Brush Cutter Cylinder Parts Diagram

Brush Cutter

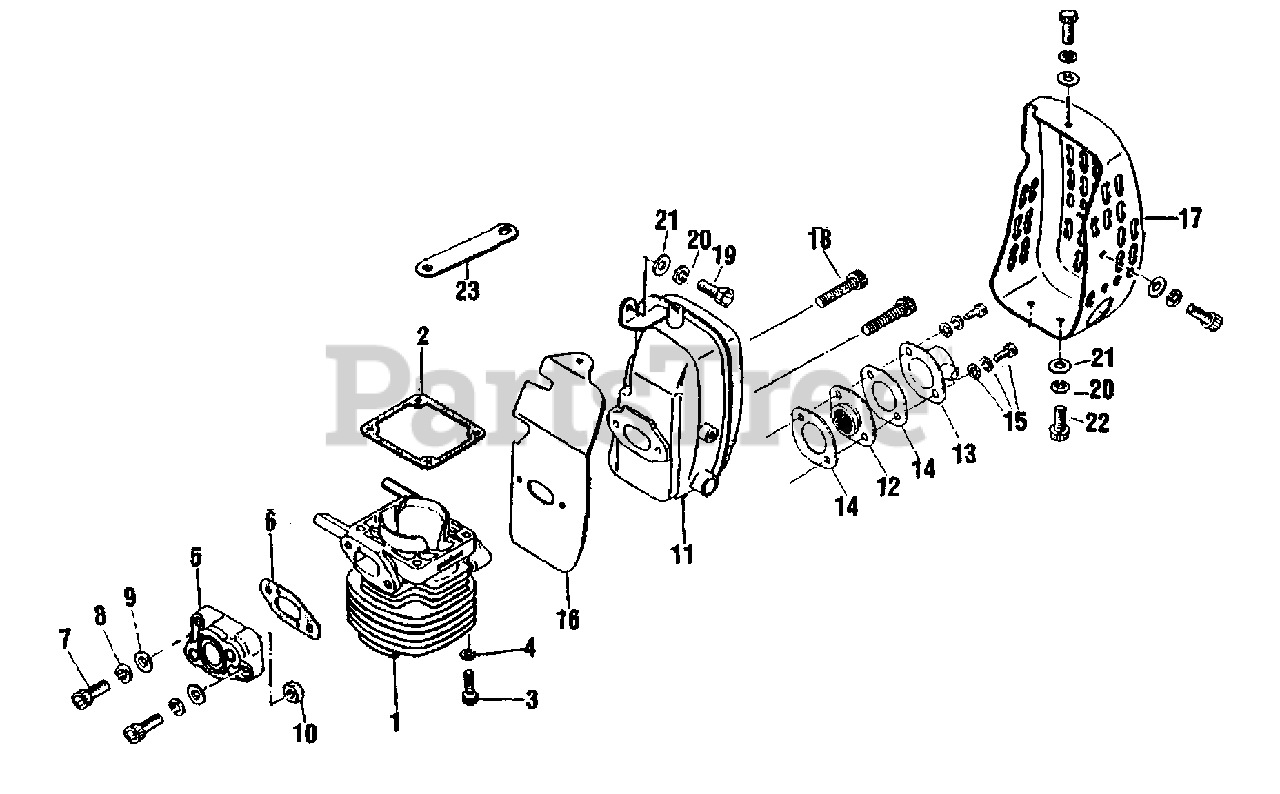

Cylinder Parts Diagram

  • Title

1

Echo 20020-12110

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

$1.99

$

In Stock, only 4 left!

0

3

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

4

Echo 01600-05131

WASHER, SPRING 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

5

Echo 20020-12211

INSULATOR
(Superseded to Discontinued)

$

$

Not available

6

Echo 20020-12220

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

8

Echo 01600-05131

WASHER, SPRING 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

9

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

Echo 70020-15000

MUFFLER ASSY

$

$

Currently unavailable

11

MUFFLER

Note: ORDER P/N 70020-15000; Parts, unnecessary for replacement except for breakage and missing

$

$

Not available

12

Echo 70000-15120

SCREEN, SPARK ARRESTER

$

$

Currently unavailable

13

Echo 70000-15130

GUIDE, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

14

Echo 70000-15140

GASKET, EXHAUST
(Superseded to 70000-15141)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 01213-04080

SCREW
(Superseded to 9156404008)

$0.99

$

In Stock, only 3 left!

0

16

Echo 20010-15211

HEAT SHIELD, EXHAUST

$

$

Not available

17

Echo 70020-15310

GUARD, MUFFLER

$

$

Currently unavailable

18

Echo 01020-06250

BOLT 6×25
(Superseded to 90010506025)

$1.49

$

In Stock, Qty 16

0

19

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

20

Echo 01600-05131

WASHER, SPRING 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

21

Echo 20010-15320

WASHER
(Superseded to 01613-05080)

$0.99

$

In Stock, Qty 20+

0

22

Echo 01020-05100

BOLT M5×10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 8

0

23

Echo 20020-15320

STAY, MUFFLER
(Superseded to Discontinued)

$

$

Not available
