B 40 - Shindaiwa Brush Cutter Cylinder Parts Diagram

Brush Cutter

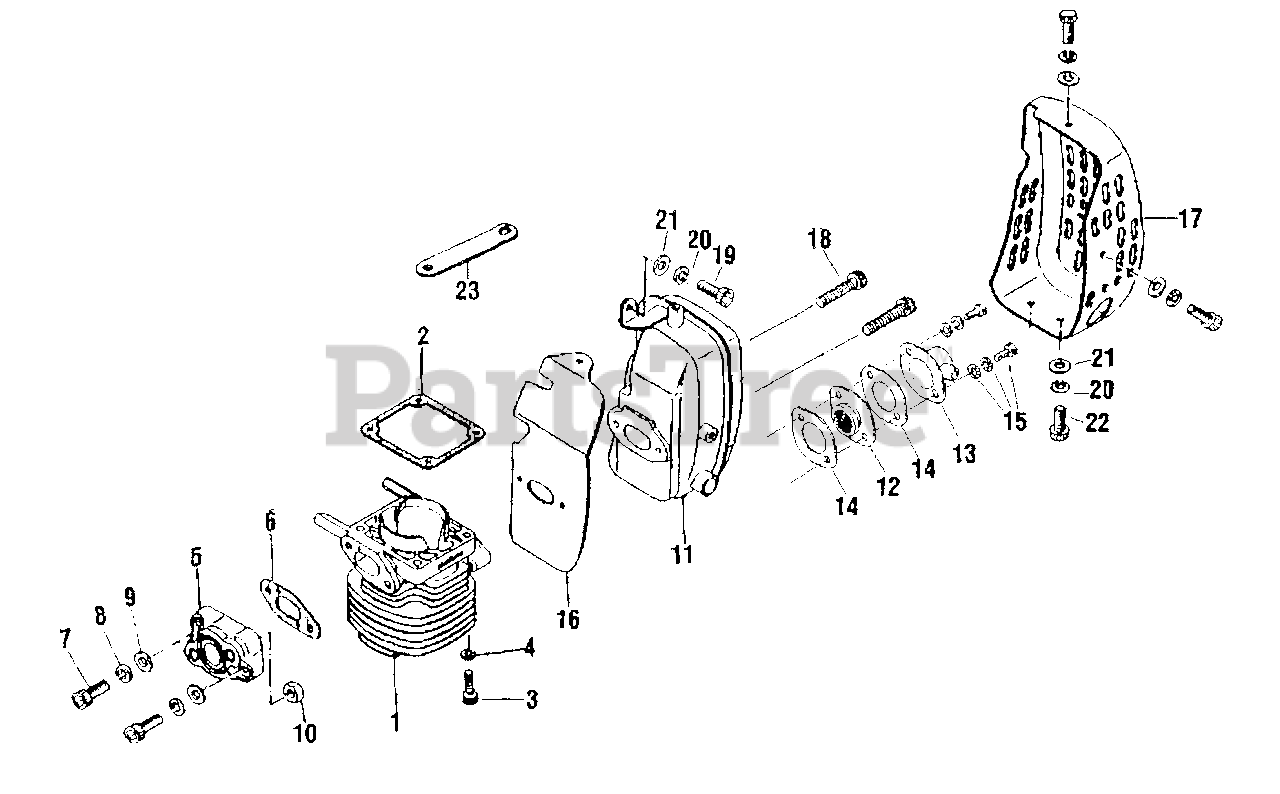

Cylinder Parts Diagram

  • Title

1

Echo 20020-12110

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

$1.99

$

In Stock, Qty 9

0

3

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

4

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

5

Echo 20020-12211

INSULATOR
(Superseded to Discontinued)

$

$

Not available

6

Echo 20020-12220

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

8

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

9

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

Echo 70020-15000

MUFFLER ASSY

$

$

Currently unavailable

11

MUFFLER

Note: ORDER P/N 70020-15000; Parts, unnecessary for replacement except for breakage and missing

$

$

Not available

12

Echo 70000-15120

SCREEN, SPARK ARRESTOR

$

$

Currently unavailable

13

Echo 70000-15130

GUIDE, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

14

Echo 70000-15140

GASKET, EXHAUST
(Superseded to 70000-15141)

$

$

Not available

15

Echo 01213-04080

SCREW - 4X8
(Superseded to 9156404008)

$0.99

$

In Stock, only 4 left!

0

16

Echo 20010-15211

SHIELD, EXHAUST

$

$

Not available

17

Echo 70020-15310

GUARD, MUFFLER

$

$

Currently unavailable

18

Echo 01020-06250

SCREW - 6X25
(Superseded to 90010506025)

$1.49

$

In Stock, Qty 6

0

19

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

20

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

21

Echo 20010-15320

WASHER
(Superseded to 01613-05080)

$0.99

$

In Stock, Qty 20+

0

22

Echo 01020-05100

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 11

0

23

Echo 20020-15320

STAY, MUFFLER
(Superseded to Discontinued)

$

$

Not available
