B 40 - Shindaiwa Brush Cutter Fuel Tank Parts Diagram

Brush Cutter

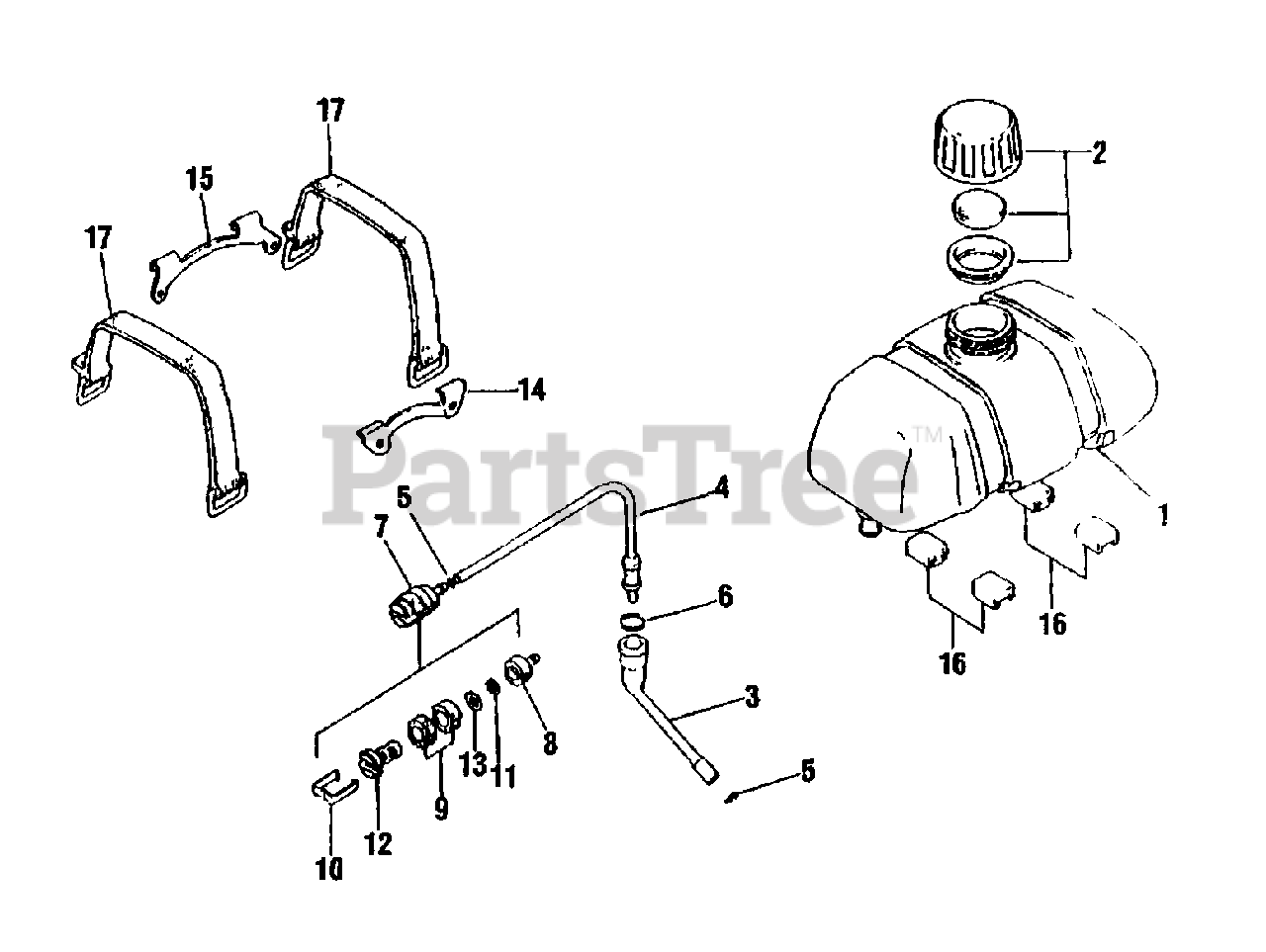

Fuel Tank Parts Diagram

  • Title

Echo 20020-85000

FUEL TANK ASSY

$

$

Currently unavailable

1

Echo 20020-85110

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

Echo 20010-85200

CAP ASSY

$

$

Currently unavailable

2

CAP, FUEL

Note: ORDER P/N 20010-85200

$

$

Not available

Echo 20020-85400

FUEL PIPE ASSY

$6.49

$

Usually ships in 2-4 days

0

3

Echo 20020-85410

PIPE - FUEL

$4.49

$

Usually ships in 2-4 days

0

4

Echo 20020-85510

TUBE, SUCTION
(Superseded to Discontinued)

$

$

Not available

5

Echo 20020-85440

CLAMP
(Superseded to V490000570)

$0.99

$

In Stock, Qty 8

0

6

Echo 20050-85560

CLAMP
(Superseded to V490000640)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

8

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

9

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 18

0

10

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

11

Echo 22128-85461

SCREEN

$

$

Currently unavailable

12

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

13

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

14

Echo 20020-86110

BRACKET - OUTER

$

$

Not available

15

Echo 20011-86120

BRACKET - INNER
(Superseded to A393000190)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 20010-86130

CUSHION
(Superseded to V420002390)

$0.99

$

In Stock, Qty 20+

0

17

Echo 20020-86140

STRAP
(Superseded to A392000060)

$4.49

$

In Stock, Qty 13

0
