B 40 - Shindaiwa Brush Cutter Gearcase Parts Diagram

Brush Cutter

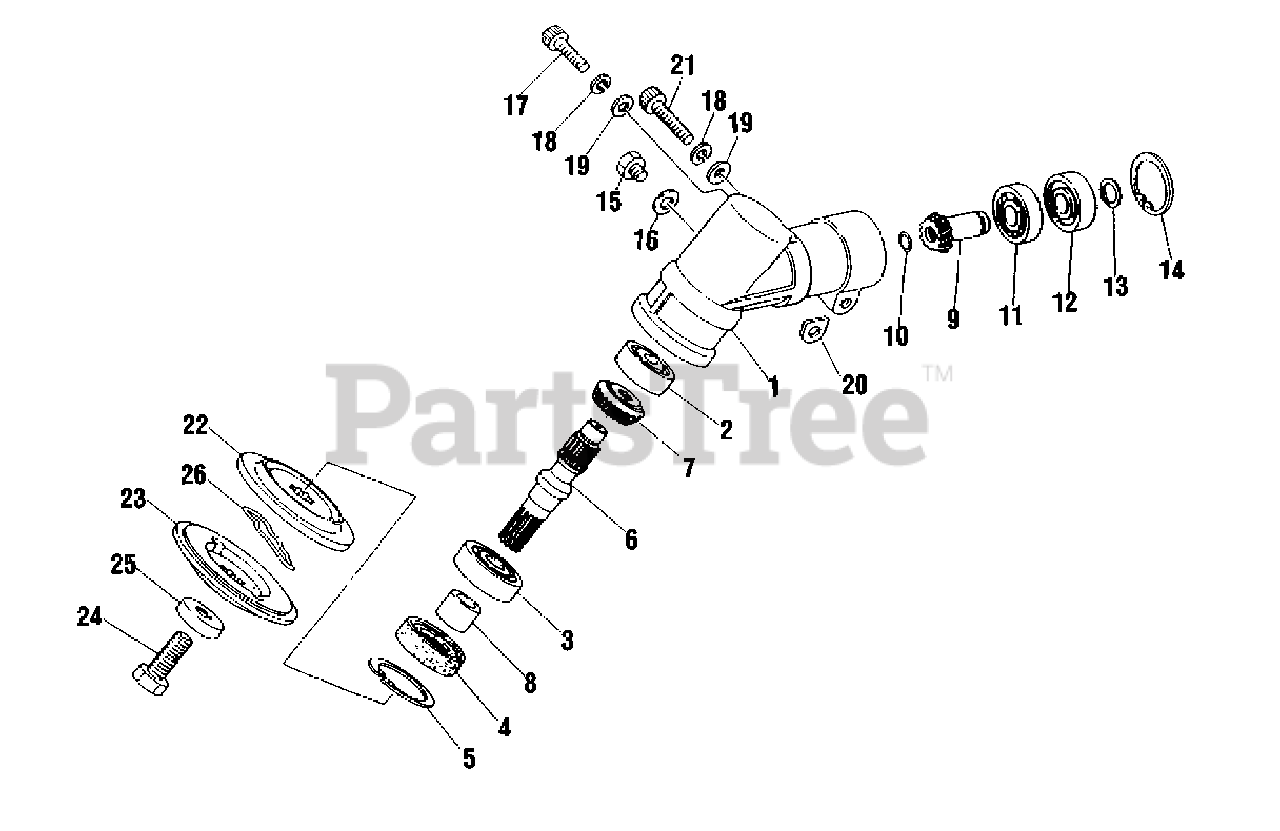

Gearcase Parts Diagram

  • Title

Echo 72017-13001

GEAR CASE ASSY
(Superseded to 72017-13003)

$227.99

$

Usually ships in 2-4 days

0

1

Echo 72017-13110

CASE, GEAR
(Superseded to 72017-13111)

$33.99

$

Usually ships in 2-4 days

0

2

Echo 02006-06000

BEARING, BALL - 6000DDU
(Superseded to 90080206000)

$15.99

$

In Stock, Qty 18

0

3

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

$10.99

$

In Stock, only 2 left!

0

4

Echo 22015-13120

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

5

Echo 02432-35150

RING, RETAINING - 35
(Superseded to 9242435000)

$2.49

$

In Stock, Qty 11

0

6

Echo 22015-13210

GEAR - SHAFT
(Superseded to C534000590)

$36.99

$

Usually ships in 2-4 days

0

7

Echo 22015-13220

GEAR - BEVEL
(Superseded to V651000540)

$27.99

$

Usually ships in 2-4 days

0

8

Echo 22015-13230

COLLAR
(Superseded to V358000130)

$4.49

$

Usually ships in 2-4 days

0

Echo 22015-13390

PINION SET
(Superseded to V651000520)

$29.99

$

Usually ships in 2-4 days

0

9

GEAR - BEVEL

Note: ORDER P/N 22015-13390; Parts, unnecessary for replacement except for breakage and missing

$

$

Not available

10

Echo 20011-31220

RING, RETAINING
(Superseded to V582000080)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 02000-06001

BEARING, BALL - 6001
(Superseded to 37074-63310)

$10.99

$

In Stock, only 2 left!

0

12

Echo 02002-06001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

$12.99

$

In Stock, Qty 5

0

13

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 8

0

14

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

15

Echo 22015-13410

BOLT - 6X10
(Superseded to V206000250)

$1.49

$

In Stock, Qty 18

0

16

Echo 22015-13420

WASHER
(Superseded to V307000230)

$1.49

$

In Stock, only 3 left!

0

17

Echo 01020-06120

SCREW - 6X12
(Superseded to 90010506012)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, Qty 20+

0

19

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 8

0

20

Echo 22011-13450

SHIM
(Superseded to V340000280)

$1.49

$

In Stock, Qty 6

0

21

Echo 01020-06280

SCREW - 6X28
(Superseded to 90010506028)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 22015-13240

HOLDER (A)

$

$

Currently unavailable

23

Echo 22015-13250

HOLDER (B)

$

$

Currently unavailable

24

Echo 22015-13261

BOLT - 10 -- LEFT HAND
(Superseded to V206000220)

$3.49

$

In Stock, only 4 left!

0

25

Echo 22015-13270

GUARD
(Superseded to C535000790)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 22015-13290

SLIDE PIN
(Superseded to V641000140)

$2.99

$

In Stock, only 3 left!

0
