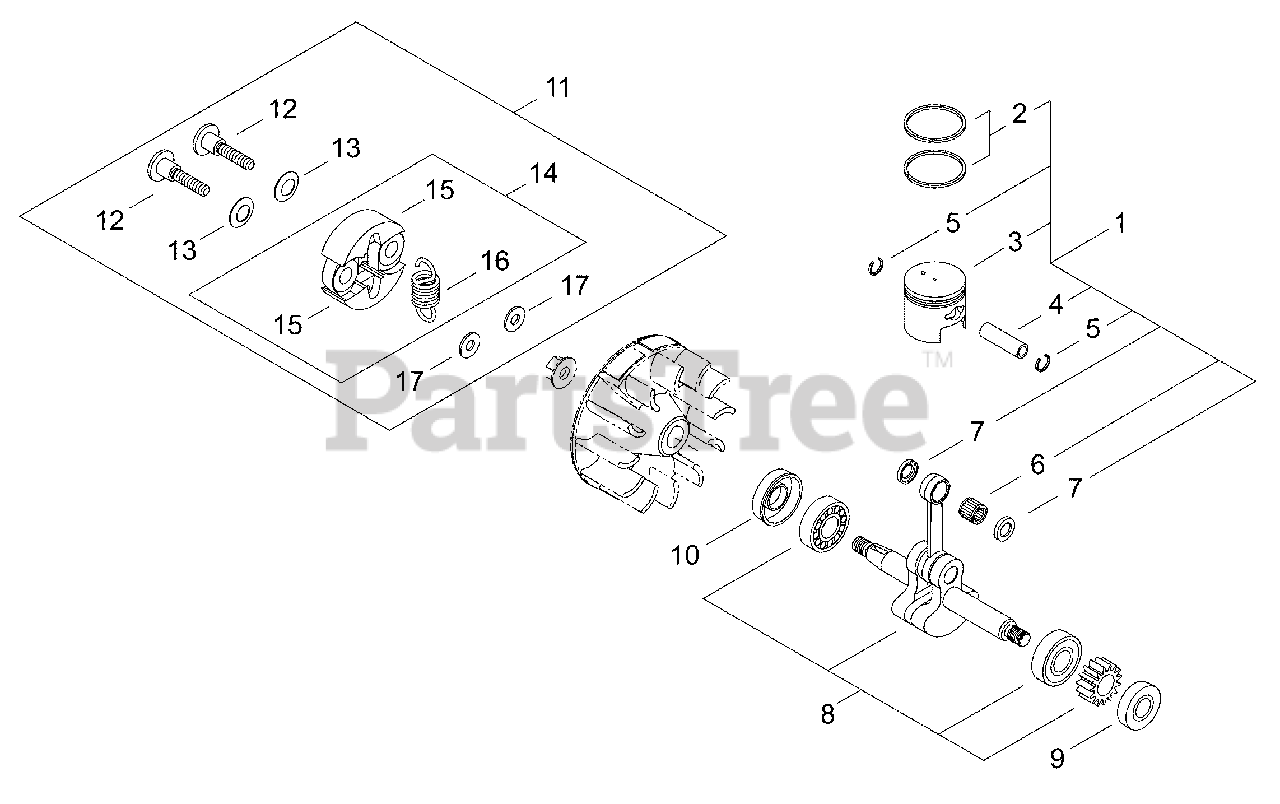

B 4000 - Swisher Brushcutter Clutch Shoe, Piston Parts Diagram

Brushcutter

Clutch Shoe, Piston Parts Diagram

  • Title

1

Echo 62907-41310

PISTON KIT
(Superseded to P021033972)

$92.99

$

Usually ships in 2-4 days

0

2

Echo 62907-41120

RING, PISTON
(Superseded to A101000240)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 62907-41110

PISTON
(Superseded to A100000481)

$35.99

$

Usually ships in 2-4 days

0

4

Echo 20010-41310

PIN, PISTON
(Superseded to V608000020)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$1.49

$

In Stock, Qty 10

0

6

Echo 62907-41230

BEARING, NEEDLE
(Superseded to V555000080)

$7.99

$

Usually ships in 2-4 days

0

7

Echo 62907-41240

WASHER, THRUST - 10
(Superseded to V307000200)

$6.99

$

Usually ships in 2-4 days

0

8

Echo 62907-42021

CRANKSHAFT ASSY
(Superseded to P021028500)

$140.99

$

Usually ships in 2-4 days

0

9

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.99

$

In Stock, Qty 20+

0

10

Echo 62907-42270

SEAL, OIL
(Superseded to V505000060)

$8.99

$

In Stock, only 1 left!

0

11

Echo 72575-98031

CLUTCH SHOE ASSY
(Superseded to A056000410)

$30.99

$

In Stock, only 2 left!

0

12

Echo 72575-98071

BOLT, CLUTCH
(Superseded to A557000080)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$1.49

$

Usually ships in 2-4 days

0

14

Echo 72575-98040

CLUTCH SHOE ASSY
(Superseded to A056000420)

$24.99

$

In Stock, only 4 left!

0

15

Echo 72575-98050

SHOE, CLUTCH
(Superseded to A553000120)

$12.99

$

In Stock, only 1 left!

0

16

Echo 72575-98060

SPRING, CLUTCH
(Superseded to A566000110)

$4.99

$

In Stock, Qty 19

0

17

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

In Stock, Qty 6

0
