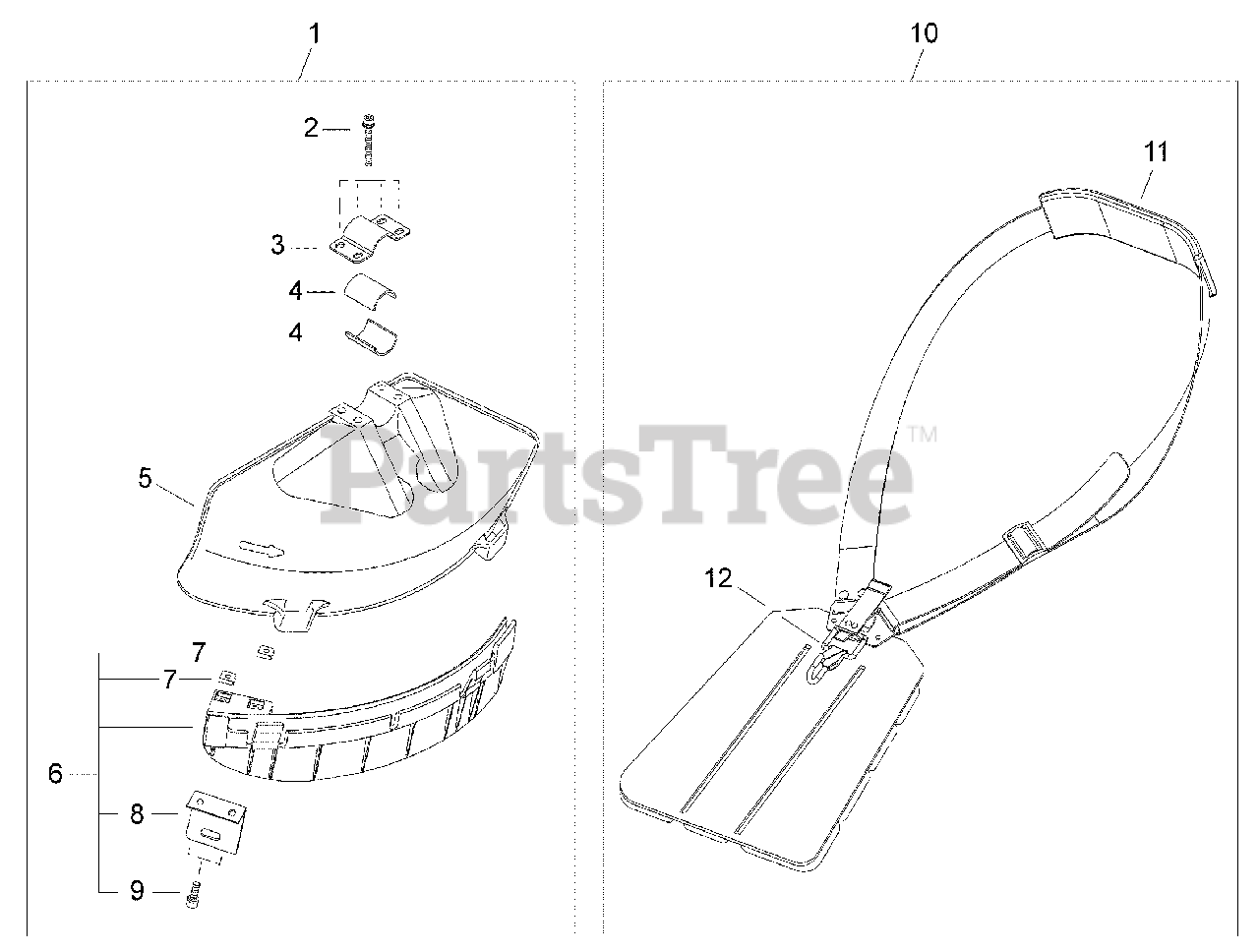

B 4000 - Swisher Brushcutter Debris Shield, Harness Parts Diagram

Brushcutter

Debris Shield, Harness Parts Diagram

  • Title

1

Echo 64000-66311

DEBRIS SHIELD KIT
(Superseded to P021028900)

$66.99

$

Usually ships in 2-4 days

0

2

Echo 11022-05450

BOLT M5×45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 6

0

3

Echo 72480-16210

CLAMP, UPPER
(Superseded to C551000060)

$1.99

$

In Stock, only 4 left!

0

4

Echo 72441-16220

SPACER 26
(Superseded to V363000160)

$1.99

$

In Stock, Qty 12

0

5

Echo 62903-66111

SHIELD, DEBRIS PLASTIC
(Superseded to C550000430)

$37.99

$

Usually ships in 2-4 days

0

6

Echo 62903-66332

DEBRIS SHIELD EXTENSION ASSY
(Superseded to P021028450)

$33.99

$

In Stock, only 2 left!

0

7

Echo 22420-16120

NUT M5
(Superseded to V263000130)

$1.49

$

In Stock, only 3 left!

0

8

Echo 72480-16121

CUTTER
(Superseded to C554000040)

$6.49

$

In Stock, only 2 left!

0

9

Echo 11020-05160

BOLT M5×16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0

10

Echo 72474-17201

HARNESS ASSY, BRUSHCUTTER
(Superseded to C062000400)

$34.99

$

Usually ships in 2-4 days

0

11

Echo 72451-17330

PAD, SHOULDER
(Superseded to C652000040)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 22421-17130

HOOK, SNAP
(Superseded to C649000200)

$6.49

$

Usually ships in 2-4 days

0
