B 430 F - Shindaiwa Brush Cutter (SN: U08226001001 - U08226999999) CLUTCH Parts Diagram

Brush Cutter

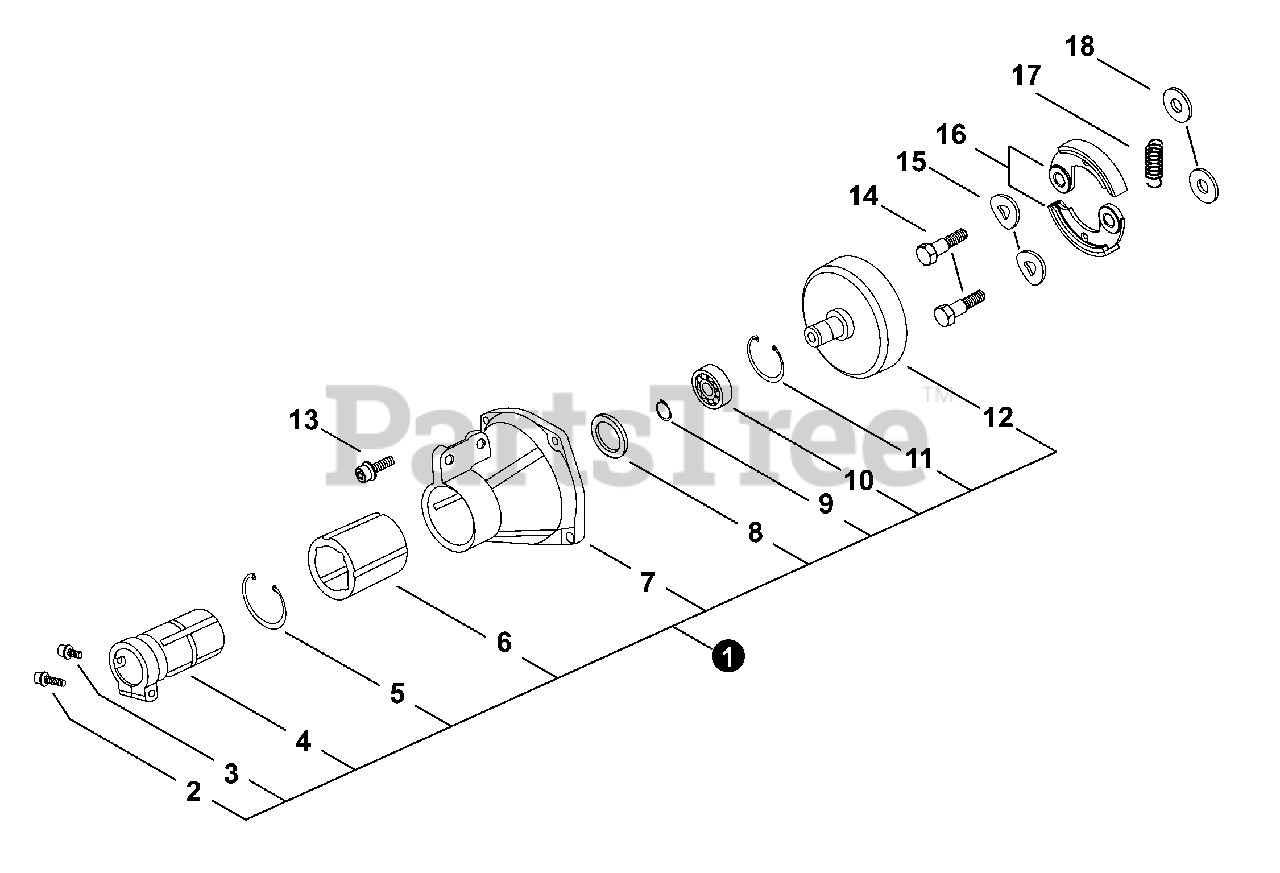

CLUTCH Parts Diagram

  • Title

1

Echo P022037010

CASE ASSY, CLUTCH

Note: Includes Items 2-12

$192.99

$

Usually ships in 2-4 days

0

2

Echo 9103805025

BOLT

$1.49

$

Usually ships in 2-4 days

0

3

Echo P022037030

SCREW
(Superseded to 90024205010)

$0.99

$

In Stock, Qty 20+

0

4

Echo P022026330

JOINT

$76.99

$

Usually ships in 2-4 days

0

5

Echo P022006950

RING, SNAP

$4.49

$

Usually ships in 2-4 days

0

6

Echo P022006940

CUSHION

$10.99

$

Usually ships in 2-4 days

0

7

Echo P022006870

CASE, CLUTCH

$48.99

$

Usually ships in 2-4 days

0

8

Echo P022006880

PLATE

$5.49

$

Usually ships in 2-4 days

0

9

Echo P022006920

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90080406002

BEARING, BALL

$14.99

$

Usually ships in 2-4 days

0

11

Echo P022006900

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

12

Echo P022037020

DRUM, CLUTCH
(Superseded to P022006910)

$50.99

$

Usually ships in 2-4 days

0

13

Echo P022037090

BOLT
(Superseded to 90016205020)

$1.49

$

In Stock, Qty 20+

0

14

Echo 17504606230

BOLT, CLUTCH

$10.99

$

Usually ships in 2-4 days

0

15

Echo 17504803920

WASHER 10.2×18×1.0

$1.99

$

In Stock, Qty 5

0

16

Echo P021006200

SHOE SET, CLUTCH

$53.99

$

Usually ships in 2-4 days

0

17

Echo 17501842230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

18

Echo 17504903920

WASHER 8.2×17×1.6

$1.49

$

In Stock, Qty 10

0
