B 430 R - Shindaiwa Brush Cutter (SN: U08226001001 - U08226999999) CLUTCH Parts Diagram

Brush Cutter

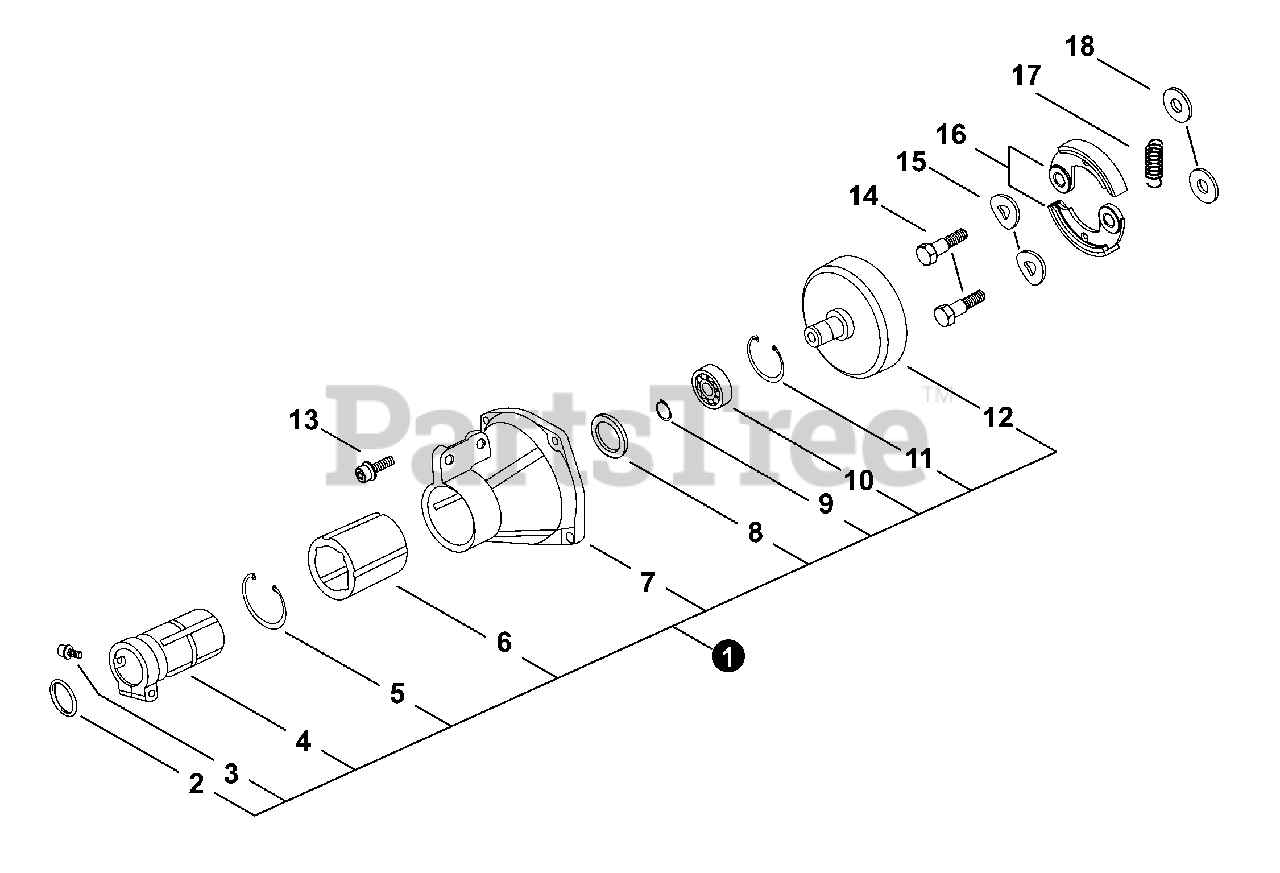

CLUTCH Parts Diagram

  • Title

1

Echo P022024760

CASE ASSY, CLUTCH

Note: Includes Items 2-12

$264.99

$

Usually ships in 2-4 days

0

2

Echo 90072502028

O-RING

$

$

Not available

3

Echo 90024205006

SCREW
(Superseded to Discontinued)

$

$

Not available

4

Echo P022024680

JOINT

$95.99

$

Usually ships in 2-4 days

0

5

Echo P022006950

RING, SNAP

$4.99

$

Usually ships in 2-4 days

0

6

Echo P022006940

CUSHION

$11.99

$

Usually ships in 2-4 days

0

7

Echo P022006870

CASE, CLUTCH

$51.99

$

Usually ships in 2-4 days

0

8

Echo P022006880

PLATE

$5.99

$

Usually ships in 2-4 days

0

9

Echo P022006920

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90080406002

BEARING, BALL

$15.99

$

Usually ships in 2-4 days

0

11

Echo P022006900

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

12

Echo P022006910

DRUM, CLUTCH

$50.99

$

Usually ships in 2-4 days

0

13

Echo P022007220

BOLT

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17504606230

BOLT, CLUTCH

$11.99

$

Usually ships in 2-4 days

0

15

Echo 17504803920

WASHER 10.2×18×1.0

$1.99

$

In Stock, Qty 5

0

16

Echo P021006200

SHOE SET, CLUTCH

$57.99

$

Usually ships in 2-4 days

0

17

Echo 17501842230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

18

Echo 17504903920

WASHER 8.2×17×1.6

$1.99

$

In Stock, Qty 10

0
